| Production Name: | High Speed Tablet Compression Machine | Max Diameter: | 25mm |
|---|---|---|---|
| Max Pressure: | 100KN | Pre Pressure: | 20KN |
| Tooling Standard: | IPT/TSM-D/B/BB/BBS Tooling | Max Filling Depth: | 20mm |
| Max Thickness: | 8mm | Max Turret Speed: | 60r/min |
| Motor Powder: | 11kw | Machine Weight: | 3200kgs |
| High Light: | Automatic Pill Press Machine 43 Stations,B Tooling Force Feeder Tablet Press,Automatic Tablet Compression Machine 60r/min |
||

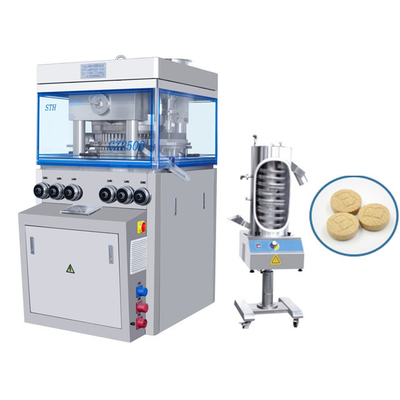

B Tooling Force Feeder High Speed Automatic Tablet Press Machine 43 Stations
B Tooling Force Feeder High Speed Automatic Tablet Press Machine 43 Stations Quick detail
- Suitable for making big size tablet
- Double impreller type force feeder
- Large pressure 100KN and pre-pressure 20KN
Applicant

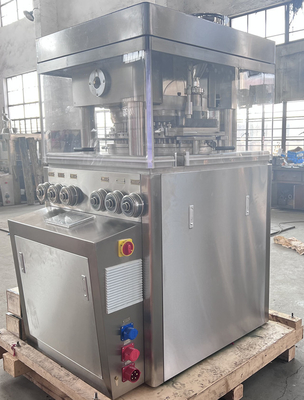

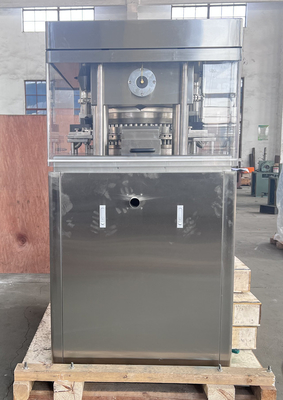

GZP500 Series High Speed Tablet Manufacturing Machine, It made of stainless steel and conforms to GMP requirements. It can be able to automatic rotation and continuous tablet pressing, mainly used for tablet production in pharmaceutical industry, chemistry, foodstuff and electronic industries.
Specifications
| Model | GZP-35 | GZP-43 | GZP-51 | GZP-55 | GZP-57 | |
| Number of Stations | 35 | 43 | 51 | 51 | 55 | |
| Tooling Standard | D | B | ZP | BB | BBS | |
| Max Main Pressure(KN) | 100 | |||||
| Max Pre-pressure(KN) | 20 | |||||
| Max Tablet Diameter(mm) | Round tablet | 25 | 18 | 13 | 13 | 11 |
| Irregular tablet | 25 | 19 | 16 | 16 | 13 | |
| Max. Filling Depth(mm) | 20 | 18 | 15 | 15 | 15 | |
| Max. Tablet Thickness(mm) | 8 | 7 | 6 | 6 | 6 | |
| Max Production Capacity(pcs/h) | 252000 | 309600 | 367200 | 367200 | 396000 | |
| Motor Power(kw) | 7.5 | |||||
| Overall Size(mm) | 1370*1170*1800 | |||||
| Machine Weight(kg) | 3200 |
|||||
Features
1. High speed with large quantity punches, double press rollers, suitable for mass production.
2. Made of stainless steel, the housing is fully closed. The surface of the rotary turret is covered with a hardened layer so that the
turret surface is wear resistant. The machine conforms to GMP requirements.
3. Perfect tableting system, twice compression forming, reasonable framework with proper space and big pressure roller, machine
performance is reliable and no tablet weight difference.
4. 4.Double impeller type force feeder, improve granules flow-ability and filling performance, ensure the filling precision.
5. Automatic oil& grease central lubrication system, ensure the lubrication of pressure rollers, toolings and tracks, extending the
working life of the machine.
6. Special oil proof, dust proof and noise proof design.
7. The machine can stop automatically in case of overpressure to protect the punch pins from being damaged.
8. PLC and touch screen control, automatic and easy control.
9. This machine can support to make double layer tablets after some changes(Optional)
Tablet sample
