Herbal Extraction Powder Press Machine For Pharmaceutical Industry

Certification
Good quality High Speed Tablet Press for sales
Good quality High Speed Tablet Press for sales
STH products have excellent performance and work site environment are satisfied.

—— Miss Pattraporn Hiti,Davao, Philippines

They provide perfect service, products' working character meet.

—— Alina , California, USA

I'm Online Chat Now

Herbal Extraction Powder Press Machine For Pharmaceutical Industry

China Herbal Extraction Powder Press Machine For Pharmaceutical Industry supplier

Large Image :  Herbal Extraction Powder Press Machine For Pharmaceutical Industry

Product Details:

Place of Origin: SHANGHAI, CHINA
Brand Name: STH, TIANHE
Certification: GMP
Model Number: GZP-51

Payment & Shipping Terms:

Minimum Order Quantity: Negotiable
Price: Negotiation
Packaging Details: Fumigation free export packing case
Delivery Time: 30 - 45 days
Contact Now
Detailed Product Description
Product Name: Powder Press Machine Model: GZP-51
Number Of Stations: 51 Tooling Standard: B
Max Main Pressure (KN): 100 Max Pre-pressure (KN): 40

Herbal Extraction Powder Press Machine For Pharmaceutical Industry Quick Details

- Max main pressure: 100KN

- Pre-pressure: 40KN

- Control system: automatic electrical system with touch screen & PLC

- Tooling standrad: EU-Tooling

- Motor: 7.5kw

- Feeding type: force feeder device



Feature:

  • High speed with large quantity punches, double press rollers, suitable for mass production.
  • Made of stainless steel, the housing is fully closed. The surface of the rotary turret is covered with a hardened layer so that the turret surface is wear resistant. The machine conforms to GMP requirements.

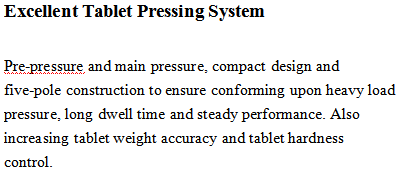

  • Perfect tableting system, twice compression forming, reasonable framework with proper space and big pressure roller, machine performance is reliable and no tablet weight difference.
  • Automatic adjust each operation parameter (main pressure, pre-pressure and filling depth) easily without handwheel.

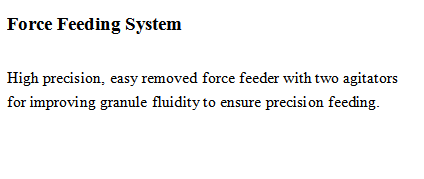

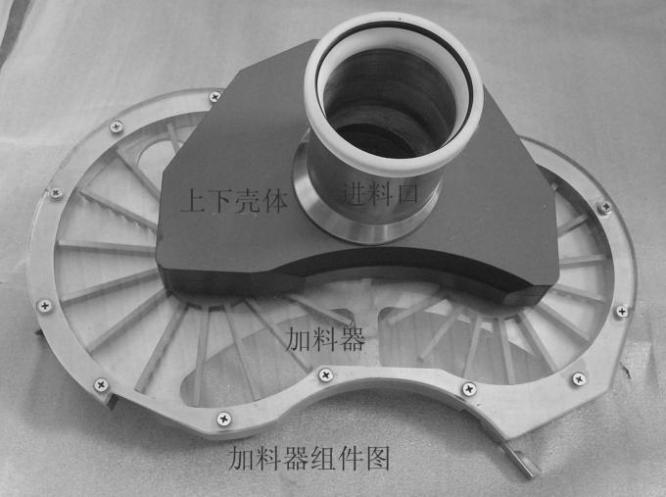

  • Double impeller type force feeder, improve granules flow-ability and filling performance, ensure the filling precision.
  • Tooling track adopt double-side lifting structure, the punches are balanced stress and wear resistance.
  • High performance electrical control system, ensure each program processing precisely.
  • Automatic oil&grease central lubrication system, ensure the lubrication of pressure rollers, toolings and tracks, extending the working life of the machine.
  • Special oil proof, dust proof and noise proof design.

Technical Parameter:



Model GZP-41 GZP-51 GZP-61 GZP-65
Number of Stations 41 51 61 65
Tooling Standard D B BB BBS
Max Main Pressure (KN) 100
Max Pre-pressure (KN) 40
Max Tablet Diameter (mm) Round tablet 25 18 13 11
Irregular tablet 25 19 16 13
Max Filling Depth (mm) 20 18 15 15
Max Tablet Thickness (mm) 10 8 6 6
Max Turret Speed (r/min) 60
Max Production Capacity (pcs/h) 295200 367200 439200 468000
Motor Power (kw) 7.5
Overall Size (mm) 1420×1200×1850
Machine Weight (kg) 3500



Herbal Extraction Powder Press Machine For Pharmaceutical Industry Herbal Extraction Powder Press Machine For Pharmaceutical Industry

Herbal Extraction Powder Press Machine For Pharmaceutical Industry

Herbal Extraction Powder Press Machine For Pharmaceutical Industry

Sample we produce:

Herbal Extraction Powder Press Machine For Pharmaceutical IndustryHerbal Extraction Powder Press Machine For Pharmaceutical Industry
