Product Details:
Payment & Shipping Terms:
|
| Features: | No Dead Corner, High Speed, Short Mixing Time | Product Name: | V-Type High Efficient Mixing Machine |
|---|---|---|---|
| Material: | Stainless Steel | Applicable Industries: | Pharmaceutical, Chemical , Foodstuff, |
| Usage: | Mixing Powder Or Granular Material | Key Selling Point: | Competitive Factory Price |
| High Light: | V Type Granular Mixing Machine,no blind eagle Granular Mixing Machine,V Type industrial granulator |
||

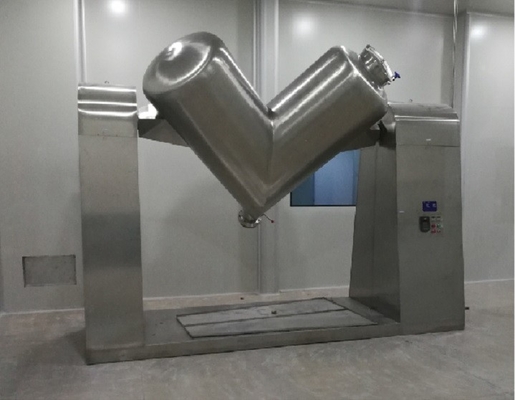

V-Type High Efficient Mixing Machine No Dead Corner Powder Granular Mixing Machine
Product Quick Details:
-It is a V-type high efficient mixing machine.
-Adopt food grade stainless steel material.
-No dead corner,high speed,short mixing time.
-It can mix powder or granular material.
Application:
This machine has the following distinguishing features no blind eagle in the cylinders number accumulation of materials, high speed and short mixing time. With the body made of stainless steel and both inner and outer walls polished.
The cylinders have elegant appearance. The charging of materials can be made either by manual operation or through vacuum suction. For discharging rotating valves and rapid swivel heads are adopted. This mixer is applicable for mixing powder or granular materials in pharmaceutical and other industries. It consists of two V-type cylinders of different altitudes, and throng mechanical transmission the materials in these cylinders area made to move back and forth and turn over again and again, thereby achieving the goal of uniform mixing.
Main Technical Specifications:
| Model | V-0.1 | V-0.2 | V-0.3 | V-0.5 | V-1.0 | V-1.5 | V-2.0 | V-2.5 | V-3.0 |
|---|---|---|---|---|---|---|---|---|---|
| Total capacity(M3) | 0.1 | 0.2 | 0.3 | 0.5 | 1.0 | 1.5 | 2.0 | 2.5 | 3.0 |
| loading factor | 0.4 | 0.4 | 0.4 | 0.4 | 0.4 | 0.4 | 0.4 | 0.4 | 0.4 |
| Max. loading capacity(L) | 40 | 80 | 120 | 200 | 400 | 600 | 800 | 1000 | 1200 |
| Overall Size(mm) | 1900*600*1190 | 2270*700*1440 | 2320*800*1470 | 2520*900*1510 | 3040*1000*1765 | 3300*1000*1750 | 3700*1200*2000 | 3950*1500*2200 | 4100*1500*2140 |
| 进料口直径Inlet dia.(mm) | 250 | 300 | 300 | 300 | 400 | 400 | 400 | 400 | 400 |
| Outlet dia.(mm) | 80 | 100 | 100 | 150 | 150 | 200 | 200 | 200 | 200 |
| Outlet height(mm) | 650 | 750 | 750 | 750 | 750 | 750 | 750 | 750 | 750 |
| Rotation height(mm) | 1730 | 2230 | 2290 | 2370 | 2880 | 2850 | 3350 | 3800 | 3850 |
| Rotating speed(r/min) | 15 | 15 | 15 | 15 | 12 | 10 | 10 | 8 | 6 |
| Motor power(kw) | 1.1 | 1.5 | 1.5 | 1.5 | 3 | 4 | 5.5 | 7.5 | 7.5 |
| Total weight(kg) | 180 | 250 | 350 | 550 | 1000 | 1100 | 1500 | 1700 | 1800 |
Sample:
Our Company:
Shanghai Tianhe Pharmaceutical Machinery Co., Ltd.is the innovative leading manufacture and professional total-solution supplier for pharmaceutical processing machines,packaging equipments and related service in Pharmaceutical & Food industry over 30 years.
We are a high-technology enterpries ,all tasks from casting to metal machining and general assembly are accomplished by ourselves.We are dedicating ourselves to reinforce quality control and satisfactory service.We can supply the most suitable products to our clients based on detailed URS analysis and mutual communication.
Through continuous development, we have successively established good trade relations with about 2,000 customers in China and our products are also well exporting to over 70 countries. Our annual sales are more than 10 million dollars.
Our mission is to provide our customer the most suitable qualified-product with best price and excellent service.
We are looking forward to building a long-term and cooperative relationship with you.Please trust us as your most trustworthy friends!
Package:
Whole machine and every parts wrapped by plastic film for dusting-proof.
Packed in export standard wooden case with pallet, conducive to forklift handling.
Shipping:
Shipping method: by sea, by air, by international express company.
Delivery time: 30-45 days after order confirm.
Forwarder: We have shipping forwarder agent for sending the goods to all over the world, can arrange shippment to destination port and to door for customer. We also accept forwarder agent of customer.
FAQ:
Q: Are you a factory or a trading company?
A: We are factory manufacturing pharmaceutical tablet press machines with more than 30 years' experience,and we provide perfect OEM and after-sale service.
Q: Can you send me the video to show how the machine works?
A: Certainly, we have made video of every machine and uploaded them to Youtube.
Q: How can I know your machine works well?
A: Before delivery, we shall test the machine working condition for you.
Q: How can I know your machine is designed for my product?
A: You can send us samples of your product and we test it on machine.
Q: Do you have a CE certificate?
A: For every model of machine, it has a CE certificate.
