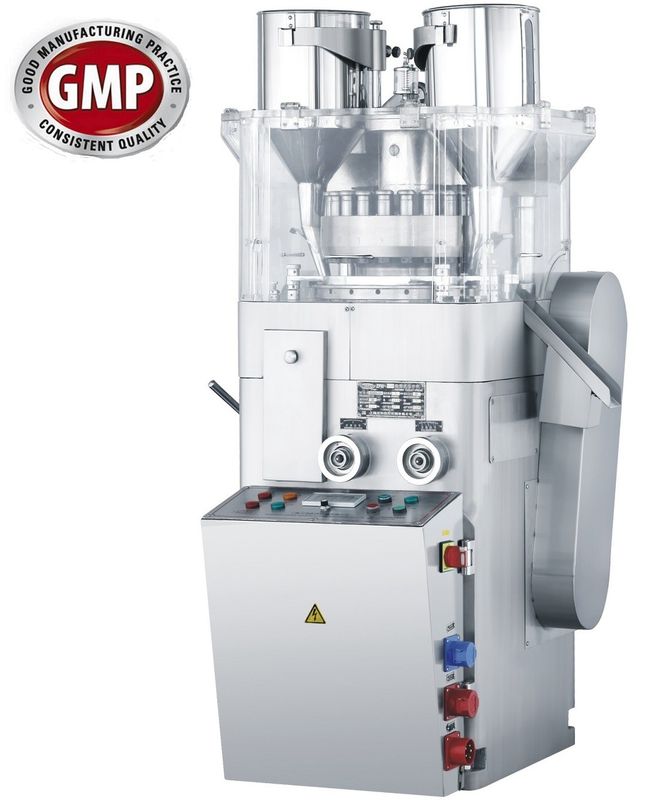

Automatic Lollypop / Lollipop Tablet Compression Machine Fully Closed Housing

China Automatic Lollypop / Lollipop Tablet Compression Machine Fully Closed Housing supplier

Large Image :  Automatic Lollypop / Lollipop Tablet Compression Machine Fully Closed Housing

Product Details:

Place of Origin: SHANGHAI, CHINA
Brand Name: STH, TIANHE
Certification: CE, ISO, GMP
Model Number: ZPW21

Payment & Shipping Terms:

Minimum Order Quantity: 1 UNIT
Price: Negotiation
Packaging Details: Fumigation free export packing case
Delivery Time: 15 - 30 days
Contact Now
Detailed Product Description
MAX SIZE: 25MM Max Thickness: 20mm
Max Pressure: 100KN TYPE: Lollypop Tablet And Lollipop Tablet
Max Production Capacity (pcs/h): 45000 Motor Power (kw): 4

China High Quality Automatic Lollypop tablet and lollipop tablet compression machine



Quick Details:

- MAX 100KN pressure

- Simple mechanical structure and easy operation

- Support Max. 25 mm round tablet

- Support to produce ring shape tablet



Application

This model is to press the various kinds of granular materials into tablets, with the most outstanding advantage of being able to produce irregular tablets with wide different geometrical shapes, such as double layer tablets, ring shape tablets and double side engraved tablets.

Features

  • Made of stainless steel, the housing is fully closed. The surface of the rotary turret is covered with a hardened layer so that the turret surface is wear resistant. The machine conforms to GMP requirements.
  • Adopt transparent windows, tableting state can be observed clearly. The windows can be opened, cleaning and maintenance is easy.
  • Hydraulic pressure system can assure stable working and good performance.
  • When making double layer tablets, it is available to eject the first layer tablet for sampling.
  • ZPW21B is upgraded model from ZPW21A machine, its speed can be adjusted by frequency inverter.





Technical Parameters

Model ZPW21
Number of Stations 21
Max Main Pressure (KN) 80
Max Tablet Diameter (mm) round tablet 22
irregular tablet 25
Max Filling Depth (mm) 20
Max Tablet Thickness (mm) 10
Max Turret Speed (r/min) 36
Max Production Capacity (pcs/h) 45000
Motor Power (kw) 4
Overall Size (mm) 860×780×1680
Machine Weight (kg) 1200







Automatic Lollypop / Lollipop Tablet Compression Machine Fully Closed Housing



Keywords:



Lollypop tablet press, lollipop tablet making machine
