|Name:||Automatic Tablet Press Machine||Type:||Candy Dry Milk Tablet Pressing Machine|
|Max Filling Depth:||15mm||Tablet Thickness:||6mm|
|Function:||Children Flavor Colostrum Dry Milk Tablet Pressed Candy||Warranty:||One Year|
|Material:||Stainless Steel||Number Of Stations:||29|
Pill Making Machine 20mm Diameter,
500mg Tablet Making Machine,
Dry Milk Candy Tablet Press Machine

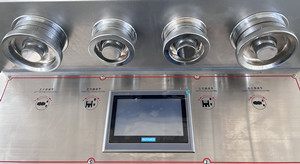

ZP29 Dry milk Candy 500mg 20 diameter Automatic Tablet Press Machine
ZP29 Dry milk Candy 500mg 20 diameter Automatic Tablet Press Machine Quick detail
- Support single layer & double layer tablet
- Max main pressure: 100KN
- Max diameter: 25mm
- Motor: 5.5kw
ZP29 Dry milk Candy 500mg 20 diameter Automatic Tablet Press Machine Application:
This machine is a double-press type continuous automatic tablet press machine for pressing granular raw materials into tablets and conforms GMP standard. It is mainly used in pharmaceutical, chemistry, foodstuff, electronic industries and suitable for make large size tablets, such as: salt tablet, milk tablet, effervescent tablet, etc.
ZP29 Dry milk Candy 500mg 20 diameter Automatic Tablet Press Machine Features
1. Made of stainless steel, the housing is fully closed. The surface of the rotary turret is covered with a hardened layer so that the turret surface is wear resistant. The machine conforms to GMP requirements.
2. Adopt transparent windows, tableting state can be observed clearly. The windows can be opened, cleaning and maintenance is easy.
3. All the drive devices are located inside the machine so keep the machine clean.
4. The machine can stop automatically in case of operpressure.
ZP29 Dry milk Candy 500mg 20 diameter Automatic Tablet Press Machine Main Technical Specifications
|Number of Stations||31||29||27|
|Tooling standard||ZP||B||ZP||D||ZP||Effervescent tablet|
|Maximum main pressure (kN)||100|
|Max Tablet Diameter (mm)||25||18||25||25||25||25|
|Max Filling Depth (mm)||15||18||15||20||15||20|
|Max Tablet Thickness (mm)||6||7||6||8||6||8|
|Max Turret Speed (r/min)||30||30||30||30||30||20|
|Max Production Capacity (pcs/h)||111600||104400||97200||64800|
|Motor Power (kW)||5.5|
|Overall Size (mm)||1140*1000*1650|
|Machine Weight (kg)||1850|
Shanghai Tianhe Pharmaceutical Machinery Co., Ltd. Is a professional manufacturer to produce like tablet press machine, packing machine in Pharmaceutical & Foods industry over 30 years, exported more than 70 countries. And our products with (Certificate, like CE, ISO) approved.
Our products are of good quality and reputation. All customers have been quite satisfied with our products. We have established long-term business relations with many customers. Our products are exported to many countries & areas, such as the USA, Australia, Canada, the UK, Spain, Hungary,Russia,Germany, Sweden, Korea, India, Indonesia, Pakistan, Thailand, Vietnam, Iran, Japan, Denmark, Romania, Bulgaria, , South Africa, Nigeria, t, Argentina and Chile. Besides machinery and equipment, we also supply production lines and turn key projects.
1.We provide presales service in various forms, making investment budge, manufacturing, planning, so that customers can make a reasonable plan with less cost.
2.We will fist check customer’s goods and goods size, then we will recommend suitable wrapping machine to 100% suitable.
3.We will recommend and offer machine according to customer’s use and purchase budget.
1.We will supply each manufacturing step photo for customer checking on time.
2.We will prepare packing and shipment according to customer’s needing in advance.
3.Testing the machine and making video for customer’s checking.
1.We will guarantee the machine quality for 1 year.
2.We provide free training and answer customer's question on technology in time.
