Shanghai Tianhe Pharmaceutical Machinery Co., Ltd.
Product Details:
Payment & Shipping Terms:
|
| Tooling Standard: | EU Tooling | Main Pressure: | 80KN |
|---|---|---|---|
| Pre-pressure: | 20KN | Motor: | 4KW |
| Machine Size: | 960*910*1750mm | Machine Wiehgt: | 1650kgs |
| Application: | Pharmaceutical, Foods, Chemical Industry | Tablet Size: | Round Tablets,square,oval,ring Or Other Irregular Shape |
| Usage: | Moringa, Candy , Salt,effervescent | ||
| High Light: | High Speed pill Press,medicine making machine |
||

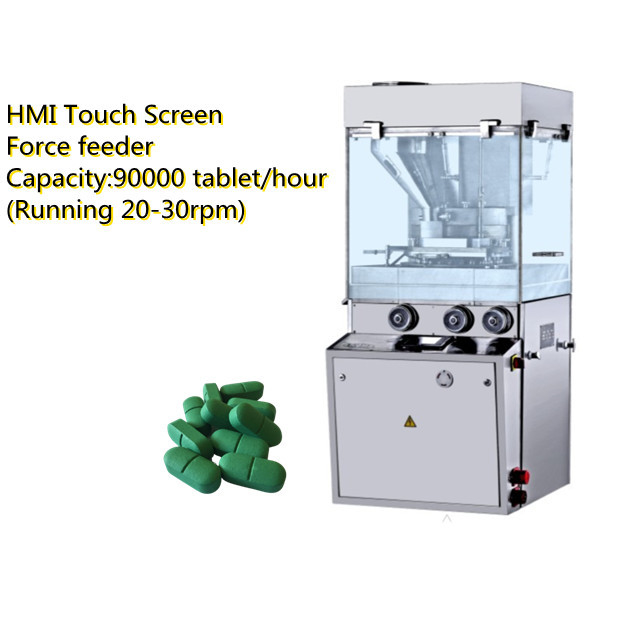

Force Feeder Oval Shape 19mm Tablet Compression Machine B Tooling
Force Feeder Oval Shape 19mm Tablet Compression Machine B Tooling Quick details
- The punching standard conforms EU-Tooling, and can be make to order with customer's requested.
- After-sales service: Engineers available to service machinery overseas
Force Feeder Oval Shape 19mm Tablet Compression Machine B Tooling Applicant
The single side rotary tablet press machine is used to press granular material to round tablets, irregular tablets or double-side engraved tablets in industries of pharmaceutical, chemistry, food and electronic, etc.
The pressing chamber is separated with the gear driven system. The parts contacting with tablets are made with stainless steel, or the surface of those parts are polished and sterilized. The chamber is also sealed with organic glass for better working environment.
The gear system, the track and the major friction parts are fully lubricated by the continual and concentrated lubrication devices.
It's easy to adjust the operating pressure, thickness, feeding speed, and indicators and other control buttons are conveniently located.
The design of ZP1100 series is rugged, durable and efficient. Most of parts are interchangeable in these series, so it is easy to operate, maintain and change spare parts. The punches and dies meet the IPT international standard.
All contacted material parts and overall exterior of the machines are made with high quality stainless steel, which meets the GMP Standard. Customized engraving on tablets is available upon request.
Force Feeder Oval Shape 19mm Tablet Compression Machine B Tooling Features
1) The machine meets the GMP standard, and it’s convenient to operate, dismantle and maintain.
2) The high main pressure and the pre-pressure extends the pressing time, and ensures the tablet quality.
3) The turret speed is high.
4) With PLC and touch screen control, all the running parameters can be set and displayed.
5) The machine will be stopped automatically in case of any upper punch is broken.
6) With the transparent windows, the working state can be observed clearly. Windows can be opened, and it’s easy to clean and maintain.
7) The force feeder improves granules flow-ability and filling performance.
| Technical Specifications | ||||||
| Model | ZP1124(A) | ZP1129(A) | ZP1136(A) | ZP1139(A) | ZP1150(A) | |
| Number stations | 24 | 29 | 36 | 39 | 50 | |
| Tooling Standard | D | B | BB | BBS | TS14 | |
| Max main pressure(KN) | 80 | |||||
| Max Pre-pressure(KN) | 20 | |||||
|
Max Tablet Diameter(mm) |
Round Tablet | 25 | 18 | 13 | 13 | 8 |
| Irregular Tablet | 25 | 19 | 16 | 16 | 8 | |
| Max Filling Depth(mm) | 18 | |||||
| Max Tablet Thickness(mm) | 7 | |||||
| Max Production Capacity(pcs/h) | 93600 | 113100 | 140400 | 152100 | 195000 | |
| Motor Power(kw) | 4 | |||||
| Overall Size(mm) | 960*910*1750 | |||||
| Machine Weight(kg) | 1650 | |||||
Shipping:
Shipping method: by sea, by air, by international express company.
Delivery time: 30-45 days after order confirm.
Forwarder: We have shipping forwarder agent for sending the goods to all over the world, can arrange shippment to destination port and to door for customer. We also accept forwarder agent of customer.
