Product Details:
|
| Range Of Working Travel: | 20-100mm | Max. Formed. Area And Depth: | 260×250×12mm |
|---|---|---|---|
| Packing Material: | Pharmacy PVC,PTP Alu Foil | Application: | Food, MEDICAL |
| High Light: | pharmaceutical blister packaging machines,ISO Pill Blister Packaging Machine,Hot Forming Blister Packaging Machine |
||

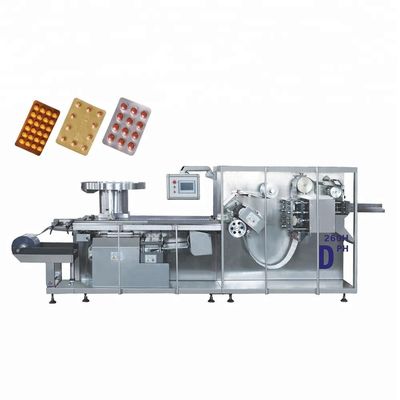

Pharmaceutical Tablet Capsule Pill Aluminum Plastic Hot Forming High Speed Blister Packing Machine
Pharmaceutical Tablet Capsule Pill Aluminum Plastic Hot Forming High Speed Blister Packing Machine Quick Details
- Automatic Grade: Automatic
- Voltage: 380V 50Hz
- Application: Food, MEDICAL
- Place of Origin: Shanghai, China
- Speed: High
- Warranty: one year
- Packaging Material: aluminum plastic
Applications
DPH series Roller Type High Speed Blister Packing Machine with advanced performance, simple operation, high output is the latest improved equipment in our company. It is the best ideal packing equipment for large and medium-sized pharmaceutical plant, health care factory and food industry. It is much faster and more productive than flat type blister packing machine. It adopts no waste side punching, can save more than $50,000/year materials.
Features
◆ It is adopted double heater and heat plate for form, and roller type sealing, Thus increasing the speed of the machine
◆ Adopts top brand PLC controller with touch screen displayed in Chinese and English, Frequency inverter for speed control, which can ensure the length of blister traction adjustable within the range.
◆ With thermal temperature control and test, main machine over loading protect, PVC and PTP packing material position test, feeder material position test, failure automatic debug and alarm, automatic protection and stop running.
◆ Adopts auto photoelectric register device for patterns and words of Al foil driven by step motor, ensuring accurate registration and perfect performance.
◆ Discharging finished product in right order, automatic collection of bad products, auto rewinding of strap material to ensure easy collection.
◆ Auto close and opening of forming plate helps delay the running time after dropping down the heat plate and also makes packing material efficiently used.
◆ High Feeding efficiency, reliable and suitable for many kinds type arrange and irregular feeding,(according to actual product design fit feeder)
◆ Auto alarm and stop of machine when PVC finds in lack or ruptured, provides much convenience to operator for timely PVC replacement or joint PVC.
◆ All parts contact with material including hopper adopt high level stainless steel, which meets "GMP" requirements.
Technical Parameter
| Terms | DPH-260H |
| Punch Frequency | ALU/PVC 60-200Times/Min |
| ALU/ALU 80Times/Min | |
| Range Of Working Travel | 20-100mm |
| Max. Formed. Area and depth | 260×250×12mm |
| Supply power | 3P 4Line 380V 50HZ 20KW |
| Packing Material | Pharmacy PVC 0.25×260mm |
| PTP alu foil 0.02×260mm |
FAQ:
Q: What price terms you offer?
A: We can offer FOB, FCA, CFR, CIF, EXW and other price terms based on your request.
Q: What payment terms you take?
A: TT, LC, other terms are also workable.
Q: Will you help with installation and stuff training?
A: Yes, we can send our engineers to your place to guide the installation and train your workers if you need, but the buyer should bear our technician's round tickets, accomodation, food and subsidiary USD100/day.
Q: How can I visit your factory?
A: Our factory is located in Shanghai Chongming Island. Just let us know your scheduel in advance and we will arrange everything for you!
Any other doubts about our machine, please feel easy to contact with us.
