|Product Name:||Automatic Effervescent Tablet Tube Filling Packing Machine||Type:||Plastic Tube Filling|
|Tube Height:||84-144mm||Cap Diameter:||20-76mm|
|Tablet Thickness:||4-8mm||Loading Quantity:||8-30 Tablet|
|Tablet Diameter:||12-25mm||Output:||40 Bottles/min|
|Dosage:||0.28 M3/min||Machine Weight:||480kgs|
Automatic Plastic Tube Filling Packing Machine,
Effervescent Tablet Tube Filling Capping Machine,
Automatic Pharmaceutical Packaging Machine

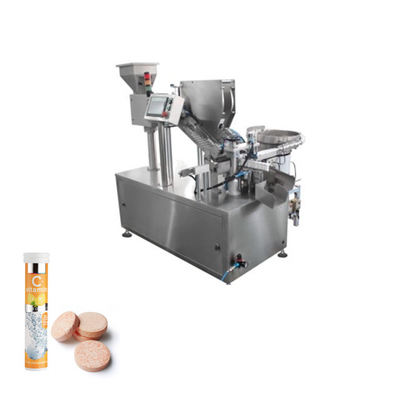

Automatic Effervescent Tablet Plastic Tube Filling Packing Machine Tablet dia 20-25mm

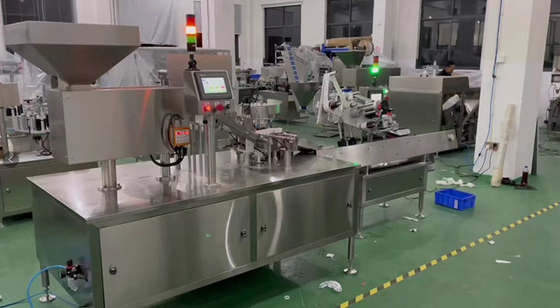

STH-40PTG Effervescent Tablets Tube Packing Machine is applicable for packing of bigger and thinner tablets which are orderly fed into bobbin bottles/tube in a single row. The machine adopts touch screen and PLC control. It is verified by optical fiber and photoelectric detection, with stable performance and reliable automatic operation. It can automatically give alarms and shut down in case of no tablets, bottles or covers. It is the most ideal equipment for effervescent tablet packaging and similar packaging in pharmaceutical factories, health product factories and food factories.

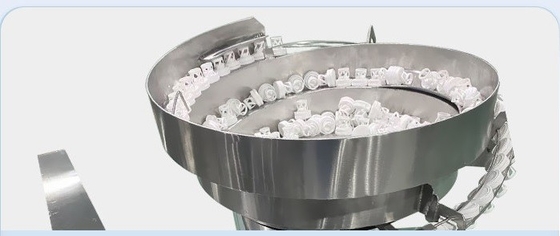

1. Cap vibrating system: Manually put the caps to the vibrator hopper and it will automatically arrange the cap move to the track by the vibrating system for capping.
2. Tablet feeding system: Manually put tablets into the material hopper, and it will automatically send the tablets to the channels for packing preparation.
3. Tube feeding unit: Manually put tube into the tube hopper, the shaking system will automatically send tube to the rack. Tube direction should be checked by manual before put into hopper
4. Cap pushing unit: When tablets push into the tube, cap pushing system will push cap and close the tube automatically, no tablet no capping, no tube no capping.
5. Electronic control section: This machine is controlled by PLC, cylinder and step motor, with automatic multi-function alarm system.
|Supporting facilities||purified compressed air whose pressure and consumption are 0.5~0.6MPa and 0.28m3/minute respectively|
Tablet diameter: Ф12-23mm
Table thickness: 4-8mm
Loading quantity:8-30 tablets
(Note: One machine only can be used for same diameter tablets and tube)
Tube height: 84-144mm adjustable
|*Standard machine suitable for||
Tablet diameter 25mm
Quantity per tube: 20 pcs
Tube height: 144mm
