30r/Min 3 Dimensional Powder Compression Machine For Granules

China 30r/Min 3 Dimensional Powder Compression Machine For Granules supplier
30r/Min 3 Dimensional Powder Compression Machine For Granules supplier 30r/Min 3 Dimensional Powder Compression Machine For Granules supplier

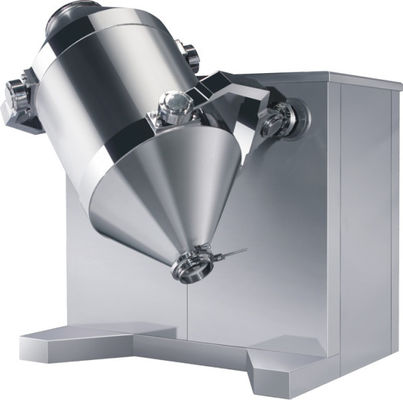

Large Image :  30r/Min 3 Dimensional Powder Compression Machine For Granules

Product Details:

Place of Origin: China
Brand Name: Tianhe
Certification: Tianhe
Model Number: Three-dimensional motion mixer HDJ series 3 - dimensional Series Mixing Machine

Payment & Shipping Terms:

Minimum Order Quantity: 1
Price: 68000
Packaging Details: The wood box
Delivery Time: 7
Payment Terms: L/C
Supply Ability: 100+
Contact Now
Detailed Product Description
Application: Granules Type: Filling Equipment
Product Name: Medicine Tablet Press Machine Function: Make Pill
High Light:

30r/min powder compression machine


GMP 3 Dimensional powder compression machine


Granules powder compaction equipment

Three-Dimensional Motion Mixer HDJ Series 3 - Dimensional Series Tablet Press Machine Automatic Tablet Press Machine

The working principle of
The machine at work, because the mixing barrel has multi-directional operation action, make all kinds of material in the process of mixing, speeding up the flow and diffusion effect, at the same time avoid the role - a mixer for centrifugal force produced by the specific gravity segregation and accumulation phenomenon, so that good mixing effect can be obtained.



Working principle

Mixing barrel is suspended on ends of driving and driving axles through two Y type universal joints that are crossing and vertical to each other in the space. When driving axle is driven to rotate, universal joint makes the barrel perform composite motion including horizo​​ntal moving, rotation and turning etc. in the space, by which, material also performs 3-dimensional motion inside the barrel. Several kinds of material inside the barrel flow, diffuse, penetrate each other and finally form uniform status.


Application and Features


1HDJ series multi-direction motion mixer is a kind of novel material mixer widely used in pharmaceutical, chemical, food, light industry and other industries and scientific research units. This machine can mix the fluidity powder or granule material very evenly, make the mixed material reach the best quality.


2 due to the mixing barrel have much in the direction of movement, make the barrel body material mixing point, mixing effect is good, the mixing uniformity is higher than that of general mixer mixing uniformity, the homogeneous degree of the drug content of error is lower than general mixer. HDJ series multidirectional motion mixer maximum load capacity than the general mixer maximum charge 40% of the volume for the barrel volume is much higher.


3 at the same time HDJ series of multi-direction motion mixing machine mixing barrel body design is unique, the barrel body wall after fine polishing, no dead Angle, no pollution of materials, when the material under the weight of the smooth discharge, no remaining material, with no pollution, easy to discharge, no accumulation of material, easy to clean and so on.


4 the material is mixed in the closed state, will not cause pollution to the working environment

Usage and features

1 As a high efficient mixing equipment, this machine is used for high homogeneity mixing of powdery and particle materials in such trades as pharmaceutical, food, chemical, light industry, machinery, electronics, mining and metallurgy, national defense industry and scientific research etc.

2 Material has no centrifugal force effect, specific gravity segregation, lamination and accumulation during mixing. Each component can be mixed under wide gap of weight proportion, mixing rate reaching over99.9%.

3 Loading coefficient can reach 80%(40% for normal ones). With compact structure, driving part of the equipment is stepless speed controlled, featuring convenient operation.

4 Each part of drum is transited by are and polished precisely, meeting the GMP requirement.


Main Technical Specifications

Model HDJ-5 HDJ-15 HDJ-50 HDJ-100 HDJ-200 HDJ-400 HDJ-600 HDJ-800 HDJ-1000

Barrel volume( L)

5 15 50 100 200 400 600 800 1000
Max loading volume( L) 4 12 40 80 160 320 480 640 800
Max loading capacity( kg) 2.4 7.5 25 50 100 200 300 400 600
rotating speed of driving shaft (r/min) 15-30 8-15
power of motor(kw) 0.25 0.37 1.1 1.5 2.2 4 5.5 7.5 7.5

Overall dimensions

(L*W*H) mm




























Weight(kg) 150 200 300 500 800 1200 1500 2000 2500



30r/Min 3 Dimensional Powder Compression Machine For Granules 0



Q: Where is your factory? How can I visit your factory?

A: Our factory is located In Chongming Shanghai. We warmly welcome you to visit our factory if you have a travel plan.


Q: How can I know your machine is designed for my product?

A: If you don't mind, you can send us samples and we will test on machines. During that time, we will take videos and clearer pictures for you. We can also show you on-line by video chatting.


Q: How about the after service and guarantee period?

A: We offer 12 months warranty since the arrival of the machine. Technical support is available 24/7. This is precautionary to ensure you have what you need if the machine has to be sent in for repair. We have professional team with experienced technician to serve abroad and do the best after service to assure the machine whole life usage.


Q: How long need to ship the machines after order?

A:We have ready stock for some model machine. and other machines can be ready and shipped in 15 to 30 days after order!


Q: What's the payment you prefer?

A: Our standard payment terms are T/T with 30% deposits and balanced before shipment.

Acceptable payment term.


Q:How to contact you?

A: Please leave messages and click "send" to send us inquiries.

30r/Min 3 Dimensional Powder Compression Machine For Granules 1
