|Product Name:||Automatic Pill Making Machinery||Type:||Press Machine|
|Usage:||Pill Tablet Making,Automatic Making Pills For Herbal Powder||Max Pressure:||80KN|
|Max Diameter:||20mm||Warranty:||1 Year|
|Material:||Stainless Steel||Certification:||ISO CE,GMP|
Core Covered pill Press Machine,
4KW automatic pill Press Machine,
Core Covered Automatic Tablet Press equipment
Tablet in Tablet Automatic Tablet Press Machine Core Covered

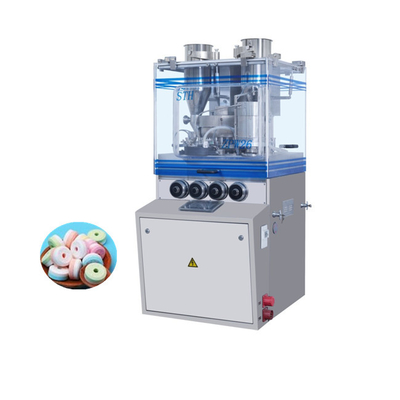

The core covered tablet is a novel form of tablet emerging in the world in recent years. Model ZPW20 Rotary Covered Tablet Press is an electronic enhanced integrated product developed by this company on the basis of absorption and digestion of the international advanced technologies. It is also the first covered tablet press produced in our country, filling a domestic blank in this area. ZPW26 model is a new upgraded product on the basis of ZPW20 machine.
1. It adopts a fully enclosed structure with the operation compartment isolated from the outside. Ensuring the cleanness in the tablet compressing area without creation of cross contamination with the outside. The compressing compartment is wholly made of stainless steel, which is in compliance with the GMP requirement on the production of pharmaceuticals.
2. The machine adopts the adjustment of speed by means of frequency inversion which is easy in operation and wide in the scope of adjustment of speed. Disintegrated structure is adopted for the turret, with the top of the table directly in contact with the pharmaceutical materials made of stainless steel and hardened by special technological process, resulting in the remarkable improvement in fatness and resistance to wearing.
3. The lubrication system of this machine can ensure the oil supply to every lubricating point, reducing the wearing of the worm-gear box and the tracks and extending the working life of the machine.
4. The electrical part adopts programmable control, with multi automatic control functions such as stopping of the machine on overload, insufficiency in the core material hopper ect. It has a double detection mechanism by photo-electric switch and pressure sensor, to ensure the automatic rejecting of any tablet without a core.
5. This machine can be used as a normal tablet press or for the production of double layer tablets after a slight alteration. When used to produce the covered tablets, attention should be drawn to the hardness and the precision of the dimension of the core tablet.
Main Technical Specifications
|Number of Stations||26|
|Max Main Pressure (KN)||80|
|Max Tablet Diameter(normal tablet) (mm)||18|
|Max Tablet Diameter(core-covered tablet) (mm)||12|
|Max Filling Depth (mm)||18|
|Max Tablet Thickness (mm)||8|
|Core Table Size||Max Diameter(mm)||10|
|Max Turret Speed (r/min)||14|
|Max Production Capacity (pcs/h)||21840|
|Motor Power (kw)||4|
|Overall Size (mm)||920×970×1900|
|Machine Weight (kg)||1600|
1.Guarantees a higher output as high production levels can be achieved with a minimal amount of labor.
2.Higher outputs tablets per hour save time and enable you to meet your large production demands.
3.Manufacturers have a long history and rich experience
Shanghai Tianhe Pharmaceutical Machinery Co.,Ltd. is the innovative leading manufacturer and professional total-solution supplier for pharmaceutical processing machines, packaging equipments and related service in Pharmaceutical & Food industry over 30 years.
We are a high-technology enterprise, all tasks from casting to metal machining and general assembly are accomplished by ourselves. We are dedicating ourselves to reinforce quality control and satisfactory clients based on detailed URS analysis and mutual communication.
Through continuous development, we have successively established good trade relations with about 2000 customers in China and our products are also well exporting to over 70 countries. Our annual sales are more than 10 million dollars.
Our mission is to provide our customer the most suitable qualified- product with best price and excellent service.
We are looking forward to building a long term and cooperative relationship with you. Please trust us as your most trustworthy friends!
Q: Where is your factory? How can I visit your factory?
A: Our factory is located In Chongming Shanghai. We warmly welcome you to visit our factory if you have a travel plan.
Q: How can I know your machine is designed for my product?
A: If you don't mind, you can send us samples and we will test on machines. During that time, we will take videos and clearer pictures for you. We can also show you on-line by video chatting.
Q: How about the after service and guarantee period?
A: We offer 12 months warranty since the arrival of the machine. Technical support is available 24/7. This is precautionary to ensure you have what you need if the machine has to be sent in for repair. We have professional team with experienced technician to serve abroad and do the best after service to assure the machine whole life usage.
Q: How long need to ship the machines after order?
A:We have ready stock for some model machine. and other machines can be ready and shipped in 15 to 30 days after order!
Q: What's the payment you prefer?
A: Our standard payment terms are T/T with 30% deposits and balanced before shipment.
Acceptable payment term.
Q:How to contact you?
A: Please leave messages and click "send" to send us inquiries.
1. Installation Services
Installation Services are available with all new machine purchases . We will provide the technical know-how for your operation smooth transition and support for installing , debugging , operation of the machine , it will indicate you how to use this machine well .
2. Clients Training Services
We can train your staff to use our machine properly . It means that we offer Customers Training , teaching how to use the systems most efficiently and safely as well as how to maintain optimal operational productivity.
3.We offer the Preventative Maintenance and After Sales Servivice . For we strongly feels about the importance options to prevent equipment issues before they become problems . Also we offer one year guarantee period .
4. Your satisfication is our persuit forever !
