|Type:||Doubler Layer High Speed Tablet Making Machine||Warranty:||1 Year|
|Material:||Stainless Steel||Product Name:||Automatic Pill Making Machinery|
|Certification:||ISO CE,GMP||Usage:||Pill Tablet Making,Automatic Making Pills For Herbal Powder|
|Condition:||New||Keyword:||High Speed、Pressure Sensor|
Pressure Sensor roatary Tablet Press Machine,
herbal powder Automatic Tablet Press Machine,
15kw Automatic Tablet Press Machine

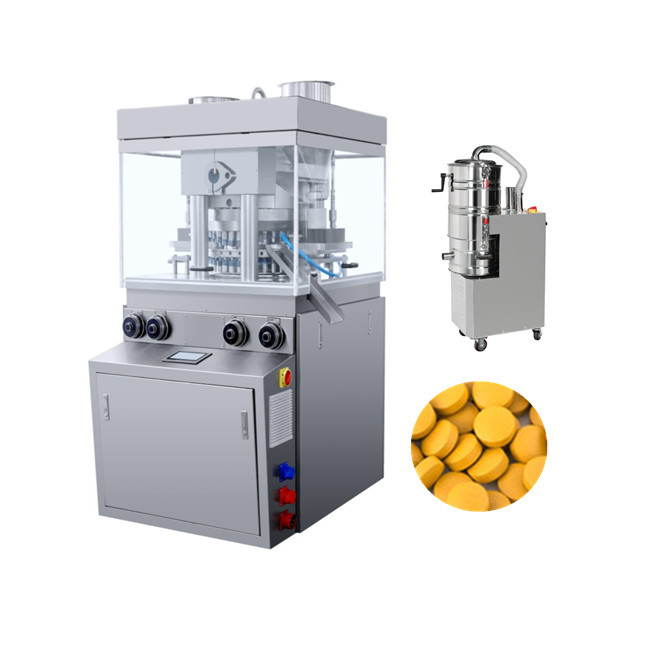

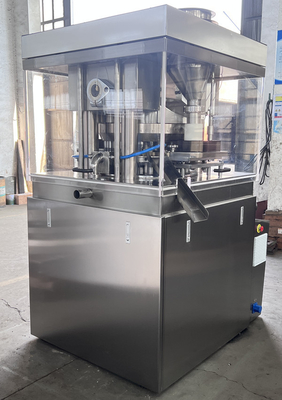

Capacity 50000 Tablet Compression Machine for round shape 40mm
Capacity 50000 Tablet Compression Machine for round shape 40mm Applications
It is a new type double-sided multi-functional tablet press machine, which can press hard-forming raw material into big size tablets, such as milk tablet, effervescent tablet, calcium tablet, dishwashing tablet, salt tablet, ect.
This machine can produce round shape tablet, ring shape tablet and double- color tablet.
This machine is mainly used in pharmaceutical, chemistry, foodstuff, electronic industries.
Capacity 50000 Tablet Compression Machine for round shape 40mm Features
1.PLC and touch screen control, all the running parameter can be set and shown.
2.Adopt double-sided structure, high output and high pressure Adopt variable frequency motor, increase the torque in low speed.
3.Install the pressure sensor inside the pressure roller shaft, show the actual pressure during work
4. The pressure sensor is placed on the upper pressure axle to display the tablet pressure;
5. The lower pressure wheel drive adopts worm gear transmission, which has self-locking function and increases the stability of pressing large diameter
6. Increase electromagnetic clutch to improve starting torque;
7. Automatic lubrication device is adopted to ensure the sufficient lubrication of punch and rail;
8. Double enveloping hourglass worm drive is adopted. The worm wheel and worm bear the surface contact. It has the characteristics of large load, high efficiency and long service life
9. Optional function of pressing double color chip;
10. Forced feeder is optional;

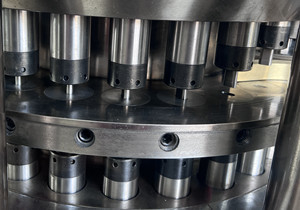

11. The upper punch adopts roller structure, which can greatly reduce the wear of rail and punch head neck caused by heavy weight of punch rod;
12. It can be equipped with automatic disc mechanism, which can avoid the impact of the finished product on the guide plate after pressing, and solve the sticking phenomenon between one side and the nail punching surface caused by sticking materials when pressing large pieces.
Main Technical Specifications
|Number of Stations||41|
|Max Main Pressure (KN)||200|
|Max Tablet Diameter (mm)||30|
|Max Filling Depth (mm)||35|
|Max Turret Speed (r/min)||28|
|Max Production Capacity (pcs/h)||13800|
|Motor Power (kw)||15|
|Overall Size (mm)||1360×1050×1848|
|Machine Weight (kg)||3800|
1.Guarantees a higher output as high production levels can be achieved with a minimal amount of labor.
2.Higher outputs tablets per hour save time and enable you to meet your large production demands.
3.Manufacturers have a long history and rich experience
Shanghai Tianhe Pharmaceutical Machinery Co.,Ltd. is the innovative leading manufacturer and professional total-solution supplier for pharmaceutical processing machines, packaging equipments and related service in Pharmaceutical & Food industry over 30 years.
We are a high-technology enterprise, all tasks from casting to metal machining and general assembly are accomplished by ourselves. We are dedicating ourselves to reinforce quality control and satisfactory clients based on detailed URS analysis and mutual communication.
Through continuous development, we have successively established good trade relations with about 2000 customers in China and our products are also well exporting to over 70 countries. Our annual sales are more than 10 million dollars.
Our mission is to provide our customer the most suitable qualified- product with best price and excellent service.
We are looking forward to building a long term and cooperative relationship with you. Please trust us as your most trustworthy friends!
Q: Where is your factory? How can I visit your factory?
A: Our factory is located In Chongming Shanghai. We warmly welcome you to visit our factory if you have a travel plan.
Q: How can I know your machine is designed for my product?
A: If you don't mind, you can send us samples and we will test on machines. During that time, we will take videos and clearer pictures for you. We can also show you on-line by video chatting.
Q: How about the after service and guarantee period?
A: We offer 12 months warranty since the arrival of the machine. Technical support is available 24/7. This is precautionary to ensure you have what you need if the machine has to be sent in for repair. We have professional team with experienced technician to serve abroad and do the best after service to assure the machine whole life usage.
Q: How long need to ship the machines after order?
A:We have ready stock for some model machine. and other machines can be ready and shipped in 15 to 30 days after order!
Q: What's the payment you prefer?
A: Our standard payment terms are T/T with 30% deposits and balanced before shipment.
Acceptable payment term.
Q:How to contact you?
A: Please leave messages and click "send" to send us inquiries.
1. Installation Services
Installation Services are available with all new machine purchases . We will provide the technical know-how for your operation smooth transition and support for installing , debugging , operation of the machine , it will indicate you how to use this machine well .
2. Clients Training Services
We can train your staff to use our machine properly . It means that we offer Customers Training , teaching how to use the systems most efficiently and safely as well as how to maintain optimal operational productivity.
3.We offer the Preventative Maintenance and After Sales Servivice . For we strongly feels about the importance options to prevent equipment issues before they become problems . Also we offer one year guarantee period .
4. Your satisfication is our persuit forever !
