Product Details:
|
| Type: | Tablet Pill Compression Machine | Punch Number: | 24 Stations |
|---|---|---|---|
| Punch Mould Standard: | D Tooling | Max Main Pressure: | 100KN |
| Max Per Pressure: | 20KN | Max Tablet Diameter: | 25mm |
| Max Tablet Thickness: | 8mm | Motor Powder: | 5.5kw |
| Machine Overall Size: | 960*910*1750mm | Machine Weight: | 1650kgs |
| Service: | Online |
24 Stations D Punch Effervescent Pill Tablet Compression Machine For Food Supplements
24 Stations D Punch Effervescent Pill Tablet Compression Machine For Food Supplements Quick detail
- Effervesent, Chewable, Supplements Tablet Making machine
- Touch screen control
- Max diameter 25mm
- Feeding type: force feeder
Application:
This machine is single side rotary tablet press machine, which can press granular materials into round shape tablet, irregular tablet or double-side engraved tablet. This machine is mainly used in pharmaceutical, chemistry, foodstuff, electronic industries.
This machine adopt international standard mould.
Technical Feature:
Main Technical Specifications
| Model | ZP1124(A) | ZP1129(A) | ZP1136(A) | ZP1139(A) | |
| Number of Stations | 24 | 29 | 36 | 39 | |
| Tooling Standard | D | B | BB | BBS | |
| Max Main Pressure (KN) | 100 | ||||
| Max Pre-pressure (KN) | 20 | ||||
| Max Tablet Diameter (mm) | Round tablet | 25 | 18 | 13 | 11 |
| Irregular tablet | 25 | 19 | 16 | 13 | |
| Max Filling Depth (mm) | 18 | ||||
| Max Tablet Thickness (mm) | 7 | ||||
| Max Production Capacity (pcs/h) | 93600 | 113100 | 140400 | 152100 | |
| Motor Power (kw) | 5.5 | ||||
| Overall Size (mm) | 960*910*1750 | ||||
| Machine Weight (kg) | 1650 | ||||
Detail information
Touch screen Control Working table
Tablet chute (SS316L) Force feeder

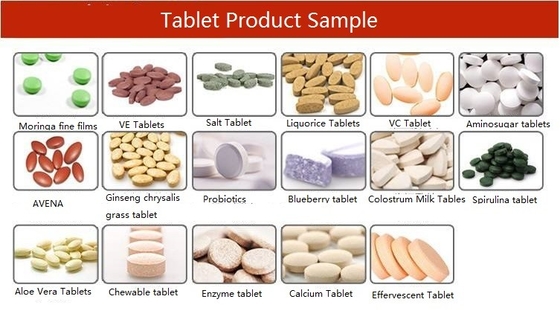

Punch/mould sample
Our servies
Guarantee:
12 months for the whole machine. Within 12 months under normal use and maintenance, if something is wrong with the machine, you will get spare part for free. Out of 12 months, you will get spare parts at cost price. You will also get technical support and service all the lifetime.
Technical support:
1, Technical support by phone, email or MSN/Skype around the clock
2, Friendly English version manual and operation video CD disk
3, Engineer available to service machinery overseas
After sales services:
Normal machine is properly adjusted before dispatch. You will be able to use the mchines immediately.
You will be able to get free training advice towards our machine in our factory. You will also get free suggestion and consultation, technical support and service by email/fax/tel and lifetime technical support.
