Shanghai Tianhe Pharmaceutical Machinery Co., Ltd.
Product Details:
Payment & Shipping Terms:
|
| Product Name: | Tablet Compression Machine | Tooling Standard: | D/B/BB/BBS |
|---|---|---|---|
| Max Main Pressure (KN): | 100 | Max Pre-pressure (KN): | 20 |
| Machine Weight (kg): | 4300 | Feature: | Oil Proof, Dust Proof And Noise Proof |
| Applicable Industries: | Manufacturing Plant, Food & Beverage Factory, Food Shop | Key Selling Points: | High Productivity |
| Certification: | CE /ISO 9001/GMP | Production Capacity: | 596400 Tablets/hour |
| Max Diameter: | 25mm Tablet Size For Pharmacy, Foods, Chemical | ||
| High Light: | High Speed pill Press,medicine making machine |
||

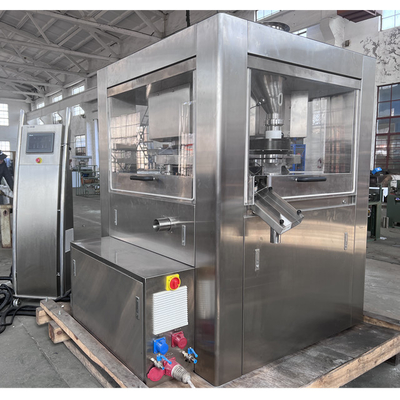

Automatic Tablet Weighting Control High Speed Tablet Press Machine
Automatic Tablet Weighting Control High Speed Tablet Press Machine Quick Details:
- high speed tablet press machine
- adopt TSM-type & EU-type international tooling
- with online tablet weight control systeem and tablet rejection system
- suitable for large production capacity
Automatic Tablet Weighting Control High Speed Tablet Press Machine For Pharmacy Application:
This machine is one kind of double side rotary tablet press machine, which can press granular materials into round shape tablet, irregular tablet or double-side engraved tablet. This machine is mainly used in Pharmaceutical, chemistry, foodstuff, electronic industries.
Automatic Tablet Weighting Control High Speed Tablet Press Machine Features:
1. High speed with large quantity punches,double press rollers, suitable for mass production.
2. Made of stainless steel, the housing is fully closed. The surface of the rotary turret is covered with a hardened layer so that the turret surface is wear resistant. The machine conforms to GMP requirements.
3. Perfect tableting system, twice compression forming reasonable framework with proper space and big pressure roller, machine performance is reliable and no tablet weight difference.
4. Compression compartment is entirely enclosed with transparent glass to prevent contamination.
5. Double impeller type force feeder, improve granules flow-ability and filling performance, ensure the filling precision.
6. Tooling track adopt double-side lifting structure, the punches are balanced stress and wear resistance.
7. High performance electrical control system, ensure each program processing precisely.
8. Automatic oil & grease central lubrication system, ensure the lubrication of pressure rollers,tooling and tracks,extending the working life of the machine.
9. Special oil proof, dust proof and noise proof design.
Automatic Tablet Weighting Control High Speed Tablet Press Machine Technical Parameter:
| Model | GZPK-45 | GZPK-55 | GZPK-65 | GZPK-71 | |
| Number of Station | 45 | 55 | 65 | 71 | |
| Tooling Standard | D | B | BB | BBS | |
| Max Main Pressure (KN) | 100 | ||||
| Max Pre-pressure (KN) | 20 | ||||
| Max Tablet Diameter (mm) | Round Tablet | 25 | 18 | 13 | 13 |
| Irregular Tablet | 25 | 19 | 16 | 16 | |
| Max Filling Depth(mm) | 20 | 18 | 15 | 15 | |
| Max Tablet Thickness (mm) | 8 | 7 | 6 | 6 | |
| Max Turret Speed (r/min) | 70 | ||||
| Max Production Capacity(pcs/h) | 378000 | 462000 | 462000 | 462000 | |
| Motor Power (KW) | 11 | ||||
| Overall size (mm) | 1530*1250*1900 | ||||
| Machine Weight (kg) | 4300 | ||||
Sample We Produce
Our Services:
1.We have seven technicians who gets passport ready to travel all over world to offer service to you.
2.We have 24hours hot line for Technical Support.
3.We get 18hours internet line for technical support.
4.Video camera in workshop to help you adjust and solve machine problem in working situation.
Packing & Shipping
Keywords:
high speed tablet press machine, rotary tablet press machine, automatic tablet press machine
