Double 100KN Atuomatic Tablet weighting control High Speed Tablet Press

China Double 100KN Atuomatic Tablet weighting control High Speed Tablet Press supplier
Double 100KN Atuomatic Tablet weighting control High Speed Tablet Press supplier Double 100KN Atuomatic Tablet weighting control High Speed Tablet Press supplier Double 100KN Atuomatic Tablet weighting control High Speed Tablet Press supplier Double 100KN Atuomatic Tablet weighting control High Speed Tablet Press supplier

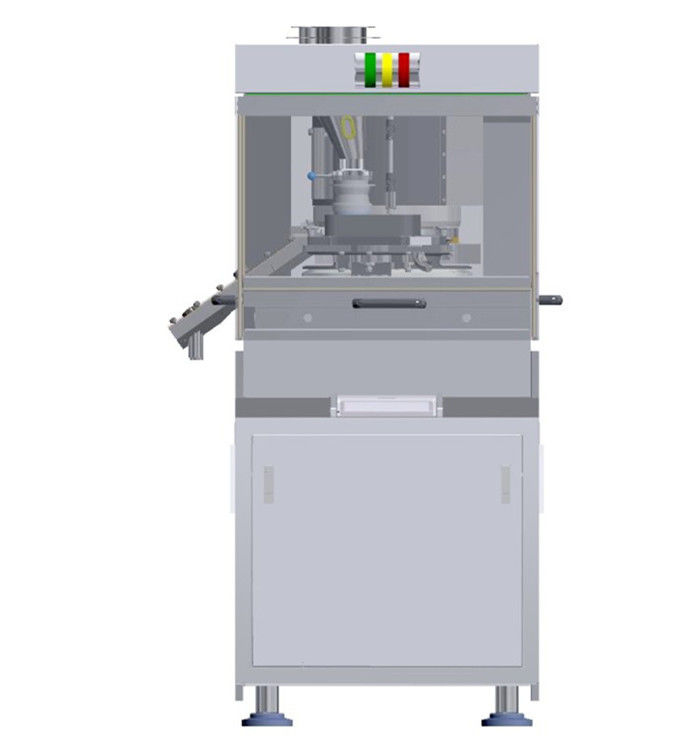

Large Image :  Double 100KN Atuomatic Tablet weighting control High Speed Tablet Press

Product Details:

Place of Origin: SHANGHAI, CHINA
Brand Name: STH, TIANHE
Certification: CE, ISO, GMP
Model Number: GZPK370

Payment & Shipping Terms:

Minimum Order Quantity: 1 UNIT
Price: Negotiation
Packaging Details: Fumigation free export packing case
Delivery Time: 60 - 90 days
Supply Ability: 20 units per year
Detailed Product Description
Name: High Speed Tablet Making Machine Type: Powder High Speed Tablet Compression
Feeding System: Force Feeder Main Pressure: 100KN
Pre-pressure: 100KN Max Diameter: 25mm
Speed: 110rpm/min Max Capacity: 291000 Pcs/hour
Applicable Industries: Foods, Chemical Industry, Pharmacy Origin: Shanghai, China
High Light:

High Speed pill Press

,

pill manufacturing machine

Double 100KN Atuomatic Tablet weighting control High Speed Tablet Press



Double 100KN Atuomatic Tablet weighting control High Speed Tablet Press Quick Details:

- 100KN main pressure and 100KN pre-pressure

- high output 291,000 tablets per hour

- adopt TSM & EU type tooling

- working stable and easy operation

- online tablet weighing and rejection





Double 100KN Atuomatic Tablet weighting control High Speed Tablet Press Application

This machine is a kind of automatic rotary tablet press, which is suitable for electronic, food, chemical, pharmaceutical and other industries to continuously press various powder or granular raw materials.The machine is suitable for pressing a variety of tablet products, such as medicine tablets, milk tablets, calcium tablets, effervescent tablets and other difficult shaping tablets.



Double 100KN Atuomatic Tablet weighting control High Speed Tablet Press Feature:

- It adopts high pressure structure, main pressure and pre-pressure are both 100KN, adopts force feeder which is suitable for powder direct pressing or pressing difficult forming materials.

- Automatic control without handwheel adjustment, servo motor is used to adjust main pressure, pre-pressure and filling quantity.

- Single sided output, small occupying area.

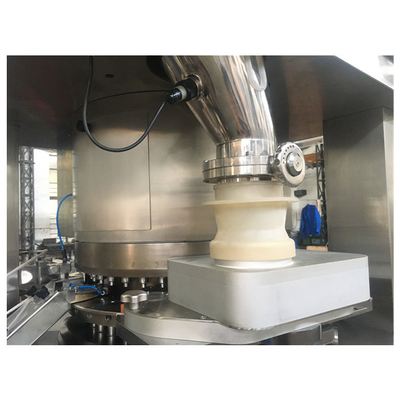

- Tablet compression chamber is closed with transparent plexiglass and stainless steel table, it can be opened completely, which is easy to change mold and maintenance.

- Main pressure and pre-pressure are equipped with pressure sensors, which can real-time display the working pressures of each punch, also can set the limit of pressure protection, so as to automatically stop the machine once over-pressure occurs.

- Online pressure detection and automatic adjustment of tablet weight, with tablet rejection function.

- Automatic lubrication system is adopted to fully lubricate the pressure wheels, tracks and punches, so as to extend the service life and reduce the parts wear.

- Equipped with a variety of safety protection devices (emergency stop, over-pressure, punch sticking, material level detection, door & window interlock protection, etc.)



Milk Powder Pill 25mm diameter high speed tablet press 100KN pressure Technical Parameters:

Model GZPK-26 GZPK-32 GZPK-40 GZPK-44
Number of Stations 26 32 40 44
Tooling Standard D B BB BBS
Max Main Pressure (KN) 100
Max Pre-pressure (KN) 100
Max Tablet Diameter (mm) round tablet 25 18 13 11
irregular tablet 25 19 16 13
Max Filling Depth (mm) 18
Max Tablet Thickness (mm) 8
Max Turret Speed (r/min) 90 100 110 110
Max Production Capacity (pcs/h) 140000 192000 264000 291000
Motor Power (kw) 11
Overall Size (mm) 1380×1200×1900
Machine Weight (kg) 1800



Tablet Samples

Double 100KN Atuomatic Tablet weighting control High Speed Tablet Press 0

Other machines

Double 100KN Atuomatic Tablet weighting control High Speed Tablet Press 1

Shanghai Tianhe Pharmaceutical Machinery Co., Ltd. is a professional manufacturer and supplier of pharmaceutical machinery. Our main products include tablet presses, mixers, packing machines, granulators. With rich experience in the field and a great number of professional engineers and technical personnel, we have developed about 40 types of machines in over 10 varieties. Our company provides services from casting, metal machining to general assembly. We offer customers low price, high quality and prompt delivery.Some products, such as ZP-31 tablet presses, DPP250 blister packing machines and fully automatic bottling and packing lines, meet the GMP standards. Our products have obtained the Shanghai Excellent Science Technology Product Certificate. If you are interested in any of our products, please feel free to contact us for more information. We are looking forward to forming business relations with customers from all over the world.



Our service

1.1 years warranty for machine, and if machine parts not work because of quality, we can repair and replace parts for free in 1 year.
2.Control system CD for software in English and with manual.
3.24 hours technical support by call, email, skype, whatsapp, wechat and so on.
4.Free training course in our factory
5.Engineer available to service machinery overseas
