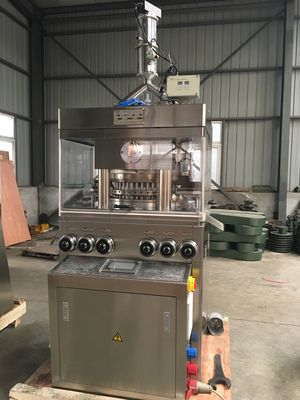

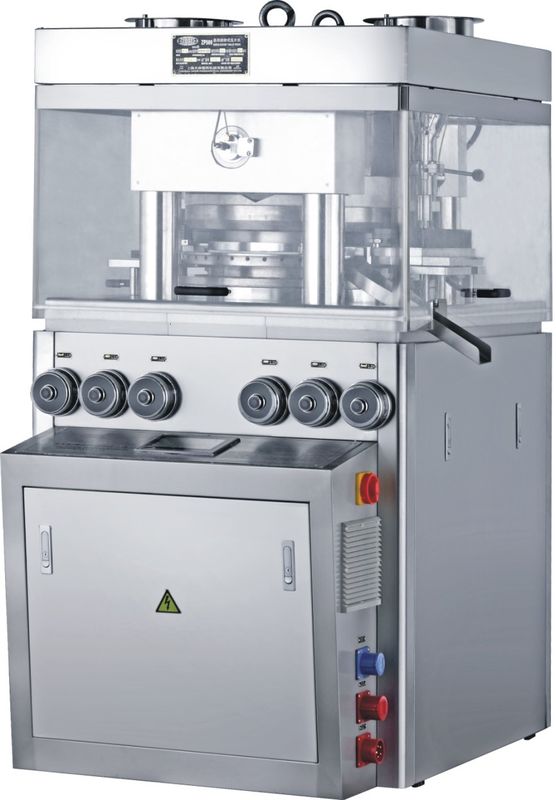

Vitamin powder Effervescent tablet pill high speed tablet press

China Vitamin powder Effervescent tablet pill high speed tablet press supplier
Vitamin powder Effervescent tablet pill high speed tablet press supplier Vitamin powder Effervescent tablet pill high speed tablet press supplier

Large Image :  Vitamin powder Effervescent tablet pill high speed tablet press

Product Details:

Place of Origin: SHANGHAI, CHINA
Brand Name: STH, TIANHE
Certification: CE, ISO, GMP
Model Number: GZP500 series

Payment & Shipping Terms:

Minimum Order Quantity: 1 UNIT
Price: Negotiation
Packaging Details: Fumigation free export packing case
Delivery Time: 45 - 60 days
Detailed Product Description
Pressure: 100KN Main Pressure And 20KN Pre-pressure Material: Stainless Steel Coated And Safety Protection Windows
Feature: High Pressure With Pre-pressure Number Of Stations: 35/46/51/55
Max Turret Speed (r/min): 50 Application: Pharmaceutical, Chemistry, Foodstuff, Electronic Industries
Max Diameter: 25mm Power: 11kw
Feeding Type: Force Feeder Name: High Speed Tablet Pill Powder Compression
High Light:

medicine making machine

,

pill manufacturing machine

Vitamin powder Effervescent tablet pill high speed tablet press tablet compression



Vitamin powder Effervescent tablet pill high speed tablet press tablet compression Quick Details:

- high speed tablet press machine

- adopt TSM-type & EU-type international tooling

- suitable for large production capacity

- high main pressure and pre-pressure



Vitamin powder Effervescent tablet pill high speed tablet press tablet compression Application

This machine is one kind of double side rotary tablet press machine, which can press granular materials into round shape tablet, irregular tablet or double-side engraved tablet.

This machine is mainly used in pharmaceutical, chemistry, foodstuff, electronic industries.

Feature:

  • High speed with large quantity punches, double press rollers, suitable for mass production.
  • Made of stainless steel, the housing is fully closed. The surface of the rotary turret is covered with a hardened layer so that the turret surface is wear resistant. The machine conforms to GMP requirements.
  • Perfect tableting system, twice compression forming, reasonable framework with proper space and big pressure roller, machine performance is reliable and no tablet weight difference.
  • Double impeller type force feeder, improve granules flow-ability and filling performance, ensure the filling precision.
  • Tooling track adopt double-side lifting structure, the punches are balanced stress and wear resistance.
  • High performance electrical control system, ensure each program processing precisely.
  • Automatic oil&grease central lubrication system, ensure the lubrication of pressure rollers, toolings and tracks, extending the working life of the machine.
  • Special oil proof, dust proof and noise proof design.
  • Adopt advanced operation system and online tablet weight control system.



Technical Parameter:

Model GZP35 GZP43 GZP55 GZP57
Number of Stations 35 43 51 55
Tooling Standard D B BB BBS
Max Main Pressure (KN) 100
Max Pre-pressure (KN) 20
Max Tablet Diameter (mm) round tablet 25 18 13 11
irregular tablet 25 19 16 13
Max Filling Depth (mm) 20 18 15 15
Max Tablet Thickness (mm) 8 7 6 6
Max Turret Speed (r/min) 50
Max Production Capacity (pcs/h) 210000 258000 306000 330000
Motor Power (kw) 7.5
Overall Size (mm) 1370×1170×1800
Machine Weight (kg) 3200



Tablet sample

Vitamin powder Effervescent tablet pill high speed tablet press 0
