Product Details:
Payment & Shipping Terms:
|
Application: | Three Layer Dishwashing Cleaning Tablet | Name: | Three Layer /double Layer Dishwashing Cleaning Automatic Tablet Compression Machine |
---|---|---|---|
Number Of Stations: | 37 Stations | Main Pressure: | 200KN |
Tablet Diameter: | 36*26*14mm Diswashing Tablet | Motor: | 22KW |
Machine Weight: | 6500kgs | Applicable Industries: | Foods, Chemical, Pharmaceutical Factory |
Services: | Support Online, Video Etc | Origin: | Shanghai, China |
Highlight: | automatic pill press machine,tablet making machine |

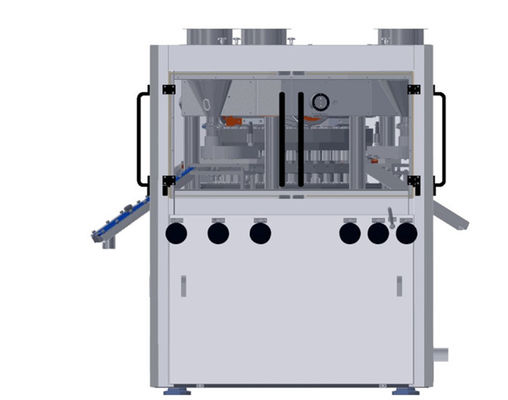

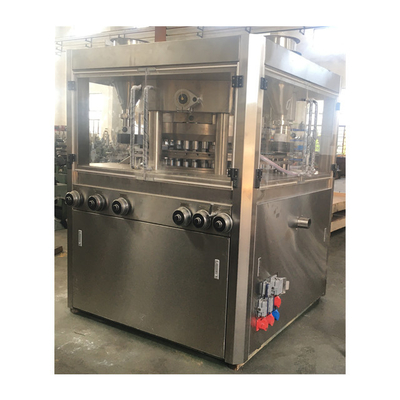

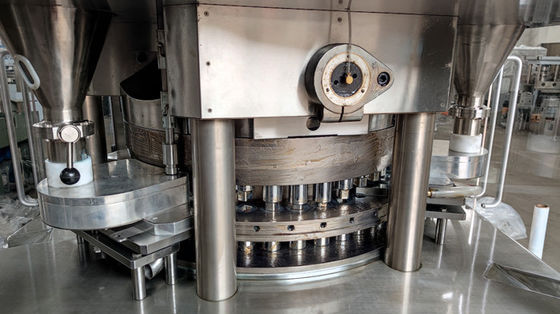

Three color Dishwashing Tablet Compression Machine For disinfection tablets
Three color Dishwashing Tablet Compression Machine For disinfection tablets Quick Details:
- suitable for making three color tablet, three layer tablet and triple layer tablet
- working stable and easy operation
- can make dishwashing tablet
Three color Dishwashing Tablet Compression Machine For disinfection tablets Application
This machine is a multifunctional rotary tablet press, which can press large-size tablets and difficult forming materials, such as milk tablets, effervescent tablets, calcium tablets, dishwashing tablets, salt tablets, etc.
Three color Dishwashing Tablet Compression Machine For disinfection tablets Features
- Using touch screen and PLC control, can display and control a variety of operating parameters.
- It adopts 22kw high-power motor and large torque reducer, with high working pressure and strong bearing capacity of machine structure.
- Pressure sensors are installed on the three groups of pressure wheels, which can display the actual working pressure and realize over-pressure shutdown protection.
- Automatic lubrication system is adopted to fully lubricate the pressure wheel, track and punches, so as to extend the service life and reduce the parts wear.
- Equipped with electromagnetic clutch, improve the starting torque of the machine.
- After a few changes, the machine can be turned into three outlets, single-layer pressing, so the working capacity is increased three times. (optional function)
- The machine can be equipped with force feeder device. (optional function)
- The machine can be changed into no-handwheel configuration to realize automatic adjustment of tablet thickness and weight. (optional function)
Three color Dishwashing Tablet Compression Machine For disinfection tablets Main Technical Specifications
Model | ZPW800-37 |
Number of Stations | 37 |
Max Main Pressure (KN) | 200 |
Max Tablet Diameter (mm) | 45 |
Max Filling Depth (mm) | 45 |
Max Tablet Thickness (mm) | 20 |
Max Turret Speed (r/min) | 15 |
Max Production Capacity for triple layer tablets (pcs/h) | 33300 (three layer) |
Punch length (mm) | 220mm |
Punch diameter (mm) | 50mm |
outer diameter of die (mm) | 60mm |
height of die (mm) | 50mm |
Motor Power (kw) | 22 |
Overall Size (mm) | 1930*1800*2020mm |
Machine Weight (kg) | 6500 |

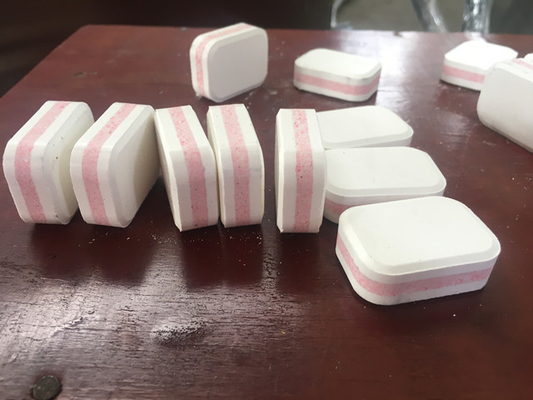

Dishwaing tablet samples
Our company:
Shanghai Tianhe Pharmaceutical Machinery Co., Ltd. Is a professional manufacturer to produce like tablet press machine, packing machine in Pharmaceutical & Foods industry over 30 years, exported more than 70 countries. And our products with (Certificate, like CE, ISO) approved.
Our products are of good quality and reputation. All customers have been quite satisfied with our products. We have established long-term business relations with many customers. Our products are exported to many countries & areas, such as the USA, Australia, Canada, the UK, Spain, Hungary,Russia,Germany, Sweden, Korea, India, Indonesia, Pakistan, Thailand, Vietnam, Iran, Japan, Denmark, Romania, Bulgaria, , South Africa, Nigeria, t, Argentina and Chile. Besides machinery and equipment, we also supply production lines and turn key projects.
Our services
Pre-sales service:
1.We provide presales service in various forms, making investment budge, manufacturing, planning, so that customers can make a reasonable plan with less cost.
2.We will fist check customer’s goods and goods size, then we will recommend suitable wrapping machine to 100% suitable.
3.We will recommend and offer machine according to customer’s use and purchase budget.
In-sale service:
1.We will supply each manufacturing step photo for customer checking on time.
2.We will prepare packing and shipment according to customer’s needing in advance.
3.Testing the machine and making video for customer’s checking.
After-sale service:
1.We will guarantee the machine quality for 1 year.
2.We provide free training and answer customer's question on technology in time.
Keywords:
triple layer tablet press machine, three color tablet press machine, dishwahsing tablet press machine
