Stainless Steel Turret 26 Stations Rotary Tablet Press Machine

China Stainless Steel Turret 26 Stations Rotary Tablet Press Machine supplier
Stainless Steel Turret 26 Stations Rotary Tablet Press Machine supplier Stainless Steel Turret 26 Stations Rotary Tablet Press Machine supplier Stainless Steel Turret 26 Stations Rotary Tablet Press Machine supplier Stainless Steel Turret 26 Stations Rotary Tablet Press Machine supplier

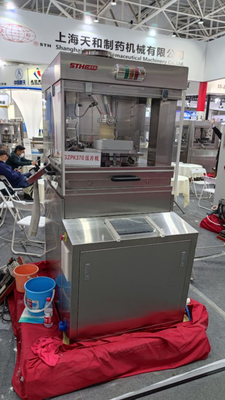

Large Image :  Stainless Steel Turret 26 Stations Rotary Tablet Press Machine

Product Details:

Place of Origin: SHANGHAI, CHINA
Brand Name: STH, TIANHE
Certification: CE, ISO, GMP
Model Number: ZP1124A

Payment & Shipping Terms:

Minimum Order Quantity: 1 UNIT
Price: Negotiation
Packaging Details: Fumigation free export packing case
Delivery Time: 30 - 45 days
Detailed Product Description
Product Name: High Speed Effervescent Tablet Press Machine With Smooth Surface Tooling And Turret Type: High Speed Automatic Tablet Press Machine
Material: Stainless Steel Covered Tablet Type: Effervescent Tablet
Pressure: 80KN Tablet Diameter: 25mm
Tablet Thickness: 7mm Motor: 4kw
Applicable Industry: Foods, Pharmaceutical, Chemical Industry Warranty: 1 Year
High Light:

rotary tablet punching machine

,

double rotary tablet compression machine

Stainless Steel Turret 26 Stations Rotary Tablet Press Machine



Stainless Steel Turret 26 Stations Rotary Tablet Press Machine Quick Details:

- high output 85,000 tablets per hour

- adopt TSM type, EU type or Chinese type tooling

- Charcoal Tablet Press Machine



Stainless Steel Turret 26 Stations Rotary Tablet Press Machine Applications

GZPK370 series high-speed rotary tablet press is a new single press high-speed tablet press developed by our company. It has the characteristics of large pressure, novel appearance, reasonable structure, convenient operation & maintenance, stable & reliable operation, varied & comprehensive electrical functions. It meets GMP requirements and is an ideal upgrading model instead of outdated ones.



Stainless Steel Turret 26 Stations Rotary Tablet Press Machine Usage:

This machine is a kind of automatic rotary tablet press, which is suitable for electronic, food, chemical, pharmaceutical and other industries to continuously press various powder or granular raw materials.The machine is suitable for pressing a variety of tablet products, such as medicine tablets, milk tablets, calcium tablets, effervescent tablets and other difficult shaping tablets.



Stainless Steel Turret 26 Stations Rotary Tablet Press Machine Features:

1. It adopts high pressure structure, main pressure and pre-pressure are both 100KN, adopts force feeder which is suitable for powder direct pressing or pressing difficult forming materials.

2. Automatic control without handwheel adjustment, servo motor is used to adjust main pressure, pre-pressure and filling quantity.

3. Single sided output, small occupying area.

4. Machine outer cover is totally enclosed and made of stainless steel. All the parts in contact with drugs are made of stainless steel or treated with special surface treatment, which are nontoxic, corrosion-resistant and conform to GMP standards.

5. Tablet compression chamber is closed with transparent plexiglass and stainless steel table, it can be opened completely, which is easy to change mould and maintenance.

6. Main pressure and pre-pressure are equipped with pressure sensors, which can real-time display the working pressures of each punch, also can set the limit of pressure protection, so as to automatically stop the machine once over-pressure occurs.

7. Online pressure detection and automatic adjustment of tablet weight, with tablet rejection function

8. Touch screen and PLC control, easy to operate, various menus, safe and reliable.

9. Automatic lubrication system is adopted to fully lubricate the pressure wheels, tracks and punches, so as to extend the service life and reduce the parts wear.

10. Equipped with 11KW high-power motor and high-precision reducer to achieve stable power output.

11. Equipped with a variety of safety protection devices (emergency stop, over-pressure, punch sticking, material level detection, door & window interlock protection, etc.)

12. CFR211 electronic signature and data export function are optional.



Stainless Steel Turret 26 Stations Rotary Tablet Press Machine Main technical parameters:

Model GZPK-26 GZPK-32 GZPK-40 GZPK-44
Number of stations 26 32 40 44
Die type tooling standard D B BB BBS
Max main pressure (KN) 100
Max pre pressure (KN) 100
Maximum tablet diameter Round tablet 25 18 13 11
Max Tablet Diameter (mm) Irregular tablet 25 19 16 13
Max filling depth (mm) 18 16
Max tablet thickness (mm) 8 6
Maximum turntable speed (R / min) 90 100 110 110
Max production capacity (PCS / h) 140000 192000 264000 291000
Motor power (kw) 11
Overall size (mm) 1380×1200×1900
Machine weight (kg) 1800



Tablet sample:

Stainless Steel Turret 26 Stations Rotary Tablet Press Machine 0



Our services:

One station service to make sure our customer get good products and good service.

1) Professional advice and rich experience help to choose machine.

2).Warranty time: All machines are guaranteed for one year.

3).Any problem: If you have any questions or any demands, we will reply you within 24 hours except the special reasons once you enquiry us.

4) Additives: installation book, Manual book, tool box will be sent with machine.



FAQ:

1. Why choose us?

A. We have a full specification scopes of the machines which can meet our customers every requirements.

B. We have longtime and rich experience on the products manufacturing. If any machine operation questions after sales, we will reply you within 24 hours with solutions. And customer can be rest assured.

C. We value the good relationship with our customers. And we enjoy the good reputation in the business.

2. What's your transportation way?

LCL and FCL by sea, by express (DHL, TNT, UPS) and by air.

3. MOQ?

One piece is ok. No MOQ requirement

4. How about your packing?

Professional export package,wooden case

5. What are your payment terms?

TT in advance

6. What is the lead time ?

Generally if we have stock, we will deliver the machine in one week. If it need custom made, the lead time will be around 20-50 days which depends on the real situation.

7. How does your factory control the quality?

A: Quality is very important, we take much attention to control our quality from raw materials to the end. We will test every machine before it leaves our factory to make sure it's working good. Our factory has passed CE, ISO, FAD. We also have audit periodically to make sure our products qualified.

8. How long is the guarantee?

Our machine guarantee is for one year for no human damage factor.

9. How should we do if we meet troubles while production.

About our after sale service, if any problems or operation questions, we will show you how to solve it or offer the suggestion accordingly. Also you can send the machine back for repairing or our engineer will go to check it.
