Home ProductsRotary Tablet Press Machine

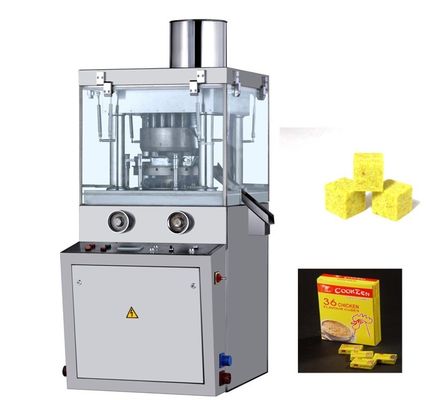

Chicken Bouillon Cube 10g Powder Rotary Tablet Press Machine

Certification
China Shanghai Tianhe Pharmaceutical Machinery Co., Ltd. certification
China Shanghai Tianhe Pharmaceutical Machinery Co., Ltd. certification
STH products have excellent performance and work site environment are satisfied.

—— Miss Pattraporn Hiti,Davao, Philippines

They provide perfect service, products' working character meet.

—— Alina , California, USA

I'm Online Chat Now

Chicken Bouillon Cube 10g Powder Rotary Tablet Press Machine

China Chicken Bouillon Cube 10g Powder Rotary Tablet Press Machine supplier
Chicken Bouillon Cube 10g Powder Rotary Tablet Press Machine supplier Chicken Bouillon Cube 10g Powder Rotary Tablet Press Machine supplier Chicken Bouillon Cube 10g Powder Rotary Tablet Press Machine supplier

Large Image :  Chicken Bouillon Cube 10g Powder Rotary Tablet Press Machine

Product Details:

Place of Origin: SHANGHAI, CHINA
Brand Name: STH, TIANHE
Certification: CE, ISO, GMP
Model Number: ZP18

Payment & Shipping Terms:

Minimum Order Quantity: 1 UNIT
Price: Negotiation
Packaging Details: Fumigation free export packing case
Delivery Time: 30 - 45 days
Detailed Product Description
Product Name: Chicken Stock Cube Rotary Tablet Press Machine With High Pressure Type: Automatic Rotary Tablet Press Machine
Material: Stainless Steel Covered Tablet Type: Chicken Stock Cube
Max Tablet Size: 45mm Applications: Electronic Industry, Food Industry, Pharmaceutical, Chemical Industry, Farms
Tablet Thickness: 20mm Main Pressure: 100kn
Motor: 5.5kw Capacity: 21600 Tablets/hour
High Light:

rotary pill press

,

rotary tablet punching machine

Chicken Bouillon Cube 10g Powder Rotary Tablet Press Machine



Chicken Bouillon Cube 10g Powder Rotary Tablet Press Machine Quick Details:

- max tablet size is 30mm

-  high output 15,000 tablets per hour

- adopt TSM type, EU type or Chinese type tooling

- Chicken Stock Cube



Chicken Bouillon Cube 10g Powder Rotary Tablet Press Machine  Applications

ZP18 Rotary Tablet Press is used in electronic industry, food industry, chemical industry, articles of everyday use industry and pharmaceutical industry, for pressing various granular raw materials into special shaped tablets. Such as electronic element, camphor ball, catalyst and powder metallurgy.



Chicken Bouillon Cube 10g Powder Rotary Tablet Press Machine Functions and Features

  • This machine is the single-pressing type equipped with 18 sets of punch dies which are mounted on the workbench and reciprocate upward and downward along the curved guide rail to realize the actions needed for tablet pressing.
  • The operational flow of this machine is: material feeding, filling, tablet pressing, and tablet exporting, continuously.
  • This machine is powered by motors. Through frequency-converting speed adjustment and triangular belt wheel, the work-gear case can be driven, causing the main axle and turret to move clockwise.
  • Rolling friction is adopted in the pressing wheel whose working pressure can be adjusted based on different needs. .Buffer device is also available to prevent the machine from being damaged due to mechanical impact and to elongate the machine’s service life.
  • Periphery of the machine’s working chamber is closed to meet the GMP requirements. Powder-absorbing orifice is installed on the bench surface to purify the working chamber.
  • Thickness of the pressed tablets, working pressure, filling amount, and rotational speed of the workbench are all adjustable. Detailed operations are directed on the operational panel to realize convenient adjustment and easy operation.
  • Material-feeding device is composed of hopper and moon-shaped grate material feeder. The hopper is mounted at top of the machine and can be dismounted. Large-amount single-variety production does not necessitate changing configurations of the machine’s parts. The materials can be directly inputted into the feeder by pipes from the machine’s top, making the operation very convenient.



 Chicken Bouillon Cube 10g Powder Rotary Tablet Press Machine Main Specifications

Punch die quantity (set) 18
Maximal pressure for tablet pressing (KN) 100
Maximal dimensions of the pressed tablets (mm)
Block-shaped 21×21
Round Shape Φ30
Annular Φ30×Φ10
Maximal thickness of the pressed tablets (mm) 14
Maximal filling (mm) 35
Rotational speed of the turret (r/s) 10-20
The largest production capacity (tablets per hour) 21600
Motor power (KW) 5
External dimensions (Length × Width × Height) 910×1120×1650
Net weight of the machine (kg) 1200



Sample

Chicken Bouillon Cube 10g Powder Rotary Tablet Press Machine 0Chicken Bouillon Cube 10g Powder Rotary Tablet Press Machine 1



Our company:

Shanghai Tianhe Pharmaceutical Machinery Co., Ltd. Is a professional manufacturer to produce like tablet press machine, packing machine in Pharmaceutical & Foods industry over 30 years, exported more than 70 countries. And our products with (Certificate, like CE, ISO) approved.

Our products are of good quality and reputation. All customers have been quite satisfied with our products. We have established long-term business relations with many customers. Our products are exported to many countries & areas, such as the USA, Australia, Canada, the UK, Spain, Hungary,Russia,Germany, Sweden, Korea, India, Indonesia, Pakistan, Thailand, Vietnam, Iran, Japan, Denmark, Romania, Bulgaria, , South Africa, Nigeria, t, Argentina and Chile. Besides machinery and equipment, we also supply production lines and turn key projects.



Our services

Pre-sales service:

1.We provide presales service in various forms, making investment budge, manufacturing, planning, so that customers can make a reasonable plan with less cost.

2.We will fist check customer’s goods and goods size, then we will recommend suitable wrapping machine to 100% suitable.

3.We will recommend and offer machine according to customer’s use and purchase budget.

In-sale service:

1.We will supply each manufacturing step photo for customer checking on time.

2.We will prepare packing and shipment according to customer’s needing in advance.

3.Testing the machine and making video for customer’s checking.

After-sale service:

1.We will guarantee the machine quality for 1 year.

2.We provide free training and answer customer's question on technology in time.







Keywords:

Chicken Stock Cube Making Machine,  Chicken Stock Cube Press Machine
