Product Name: | Single Punch Pill Press Machine | Usage: | Moringa, Candy , Salt,effervescent |
---|---|---|---|
Name: | Flower Basket Tablet Press Machine | Application: | Pharmaceutical Food |
Keyword: | Single Punch Tablet Press Machine | Applicable Industries: | Es: Manufacturing Plant, Machinery Repair Shops, Food |
Type: | Single Punch | After-sales Service: | Field Installation, Commissioning And Training |
After Warranty Service: | Video Technical Support, Online Support | Core Components: | Bearing, Motor, PLC, Pressure Vessel |
High Light: | tablet punching machine,single punch pill press |

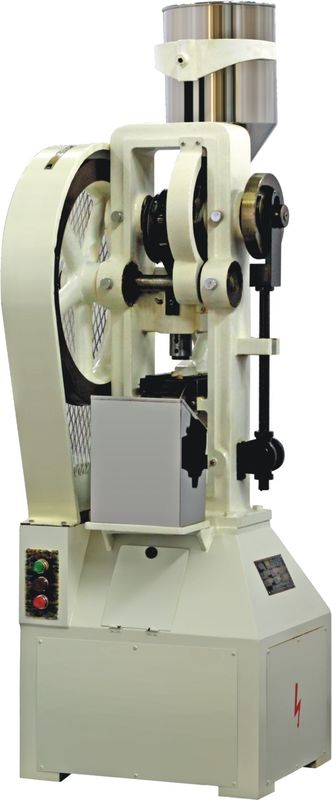

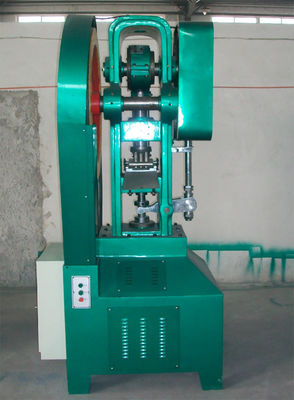

Particles Ceramic / Hookah charcoal 200KN Single Punch Tablet Press Machine
Particles Ceramic / Hookah charcoal 200KN Single Punch Tablet Press Machine Quick Details:
- single punch tableting machine
- motor drive or hand drive
- simple structure and easy operation
- Slugging tablet
Particles Ceramic / Hookah charcoal 200KN Single Punch Tablet Press Machine APPLICATION
This machine is a medium continuous automatic tablet press which is one of essential equipment for pressing granular raw materials into tablets or medicines taken with water in pharmaceutical, chemical, food and electronic industries.
It can be used to press medicinal tablets, coffee pills, powder metallurgical parts, electronic components, various tablets of pesticide and fertilizer ect, in small-batch production laboratory and hospital.
The machine can press special shaped circular tablets of different kinds, and can also process the tablets of pesticide both sides are impressed trademarks, letters and simple pattern.
Main technical parameters
Model | THP-6 | THP-10 | THP-20 | THP-30 |
Working pressure | 6T | 10T | 20T | 30T |
Uprush max stroke | 60mm | 110mm | 110mm | 120mm |
Max. Depth of fill | 35mm | 55mm | 60mm | 60mm |
Max diameter of lower mould | 70mm | 108mm | 128mm | 140mm |
Capacity | 30times per minute | 25times per minute | 25times per minute | 25time per minute |
Motor | 1.5kw | 3kw | 4kw | 5kw |
Dimension | 700*740*1650 | 750*950*2100 | 1000*950*2400 | 1100*900*2600 |
Weight | 300kg | 920kg | 1200kg | 2000kg |
Products
Food: candy tablet, coffee block, chocolate, seasonings block, chicken tablets, glucose block;
Agriculture: Feed block, fertilizer tablets, animal food;
Electronics Batteries: thermistor, integrated circuit components, carboniferous brush films, quick drop-off
Health Products: calcium, propolis tablets, effervescent tablets, bath salts tablets
Chemical: disinfection tablets, insect repellent films, camphor ball, detergents, fragrances, catalysts, metallurgy powder, glass powder, ceramic powder products, art powder, sand round block, magnetic materials.
Tablet Samples
Guarantee and Service
1 The machine is guaranteed for trouble free performance for a period of 12 months from commissioning.
2 Service after sell for free for one year, and with spare parts for one year(except human reason broken and easy broken parts).
3 We can provide online video technology services.
4 If you need, we can dispatch our engineer to install and test machine in your country. But our clients need to pay relative fees of our engineer. Our quotations has not included these fees.
