Product Details:
Payment & Shipping Terms:
|
| After-sales Service Provided: | Engineers Available To Service Machinery Overseas | Max Turret Speed: | 58r/min |
|---|---|---|---|
| Max Pre-pressure: | 40KN | Max Filling Depth: | 11-25mm |
| High Light: | automatic pill press machine,tablet making machine |
||

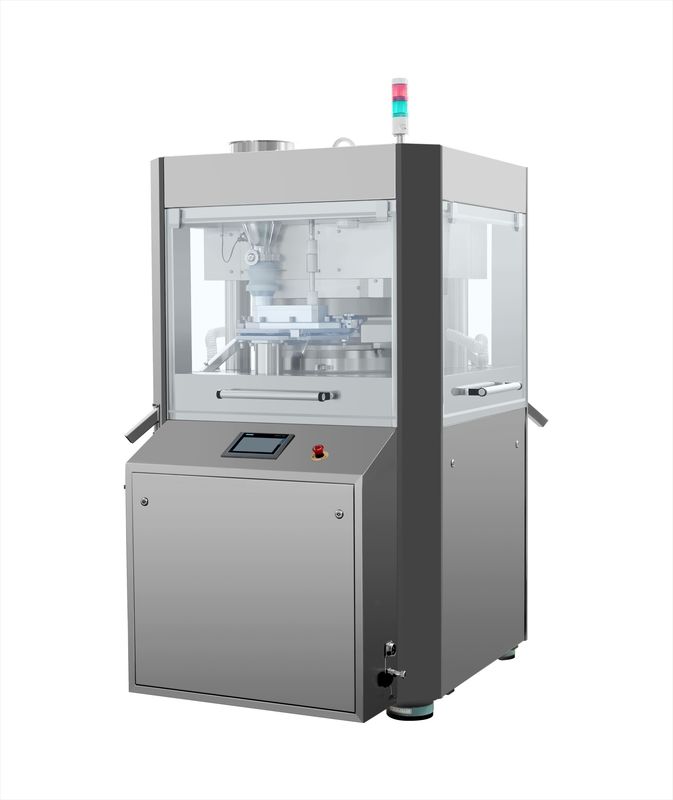

GZP570 series high speed rotary tablet press machine(new design)
ABB Motor Siemens touch screen & PLC
Main technical specifications:
| Model | GZP-41 | GZP-51 | GZP-61 | GZP-65 | |
| Number of Station | 41 | 51 | 61 | 65 | |
| Tooling Standard | D | B | BB | BBS | |
| Max Main Pressure (KN) | 100 | ||||
| Max Pre-pressure (KN) | 40 | ||||
| Max Tablet Diameter (mm) | Round Tablet | 25 | 18 | 13 | 11 |
| Irregular Tablet | 25 | 19 | 16 | 13 | |
| Max Filling Depth(mm) | 21 | 18 | 18 | 18 | |
| Max Tablet Thickness (mm) | 8 | 6 | 6 | 6 | |
| Max Turret Speed (r/min) | 58 | ||||
| Max Production Capacity(pcs/h) | 285360 | 354960 | 424560 | 452400 | |
| Motor Power (KW) | 11 | ||||
| Overall size (mm) | 1425*1150*2245 | ||||
| Machine Weight (kg) | 3800 | ||||
Application:
This machine is one kind of double side rotary tablet press machine, which can press granular materials into round shape tablet, irregular tablet or double-side engraved tablet. This machine is mainly used in Pharmaceutical, chemistry, foodstuff, electronic industries.
Features:
1: High speed with large quantity punches,double press rollers, suitable for mass production.
2:Made of stainless steel, the housing is fully closed. The surface of the rotary turret is covered with a hardened layer so that the turret surface is wear resistant. The machine conforms to GMP requirements.
3:Perfect tableting system, twice compression forming reasonable framework with proper space and big pressure roller, machine performance is reliable and no tablet weight difference.
4:Compression compartment is entirely enclosed with transparent glass to prevent contamination.
5:Double impeller type force feeder, improve granules flow-ability and filling performance, ensure the filling precision.
6:Tooling track adopt double-side lifting structure, the punches are balanced stress and wear resistance.
7:High performance electrical control system, ensure each program processing precisely.
8:Automatic oil & grease central lubrication system, ensure the lubrication of pressure rollers,tooling and tracks,extending the working life of the machine.
9:Special oil proof, dust proof and noise proof design.
Packaging detail: Normal export wooden case..
Delivery detail: about 60 working days after payment
Q. Where is your factory How can I visit your factory?
A: Our factory is located in Chenjia Town,Chongming County,Shanghai,China.We warmly welcome you to visit our factory.
Q. How can I know your machine is designed for my product?
A. If you don't mind,you can send us samples and we will test on our machines.We will take videos and photos for you.We
can also show you video on-line.
Q.How to contact you?
A. Please leave messages by email or send us WhatsApp, Wechat and QQ etc.
