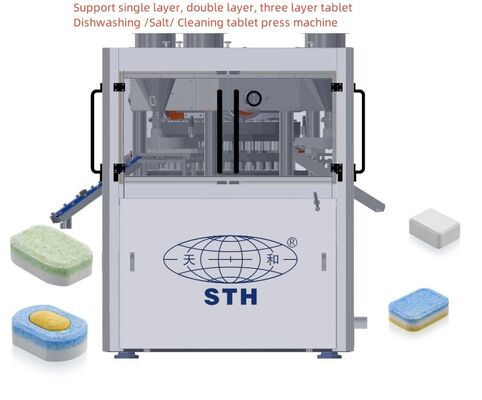

TIANHE ZPW800 37 Stations Dishwashing Tablet Single /Double /Three Layer Powder Press Machine
Application

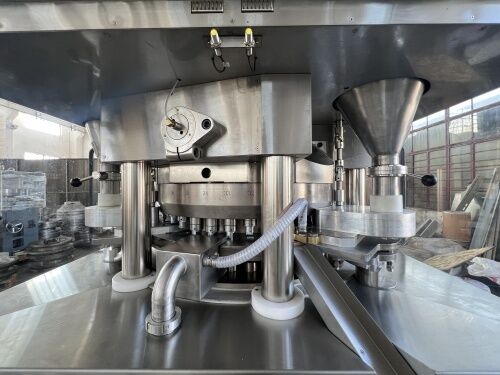

This machine is a multifunctional rotary tablet press, which can press large-size tablets and difficult forming materials, such as milk tablets, effervescent tablets, calcium tablets, dishwashing tablets, salt tablets, etc.
Features
- Using touch screen and PLC control, can display and control a variety of operating parameters.
- It adopts 22kw high-power motor and large torque reducer, with high working pressure and strong bearing capacity of machine structure.
- Pressure sensors are installed on the three groups of pressure wheels, which can display the actual working pressure and realize over-pressure shutdown protection.
- Automatic lubrication system is adopted to fully lubricate the pressure wheel, track and punches, so as to extend the service life and reduce the parts wear.
- Equipped with electromagnetic clutch, improve the starting torque of the machine.
- After a few changes, the machine can be turned into three outlets, single-layer pressing, so the working capacity is increased three times. (optional function)
- The machine can be equipped with force feeder device. (optional function)
- The machine can be changed into no-handwheel configuration to realize automatic adjustment of tablet thickness and weight. (optional function)
Main Technical Specifications
| Model | ZPW800-37 |
| Number of Stations | 37 |
| Max Main Pressure (KN) | 200 |
| Max Tablet Diameter (mm) | 45 |
| Max Filling Depth (mm) | 45 |
| Max Tablet Thickness (mm) | 20 |
| Max Turret Speed (r/min) | 15 |
| Max Production Capacity for triple layer tablets (pcs/h) | 33300 (three layer) |

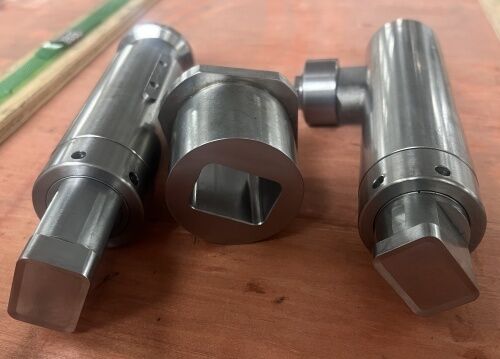

| Punch length (mm) | 220mm |
| Punch diameter (mm) | 50mm |
| outer diameter of die (mm) | 60mm |
| height of die (mm) | 50mm |
| Motor Power (kw) | 22 |
| Overall Size (mm) | 1930*1800*2020mm |
| Machine Weight (kg) | 6500 |
Tablet Sample (Dish washing/Cleaning Tablet)
Company profile
SHANGHAI TIANHE PHARMACEUTICAL MACHIENRY CO.,LTD (STH) was founded in 1992. The company is located in Chongming island Shanghai,China. In the 40 years since its establishment, STH has successfully achieved an extraordinary leap based on the strategy of "brand-opening and terminal-oriented". Development and become a mature enterprise in the tablet press machine industry in one fell swoop.
STH mainly produces tablet press machine, packing machine, processing equipment suitable in Pharmacy, Foods, Chemical industry. And has independent large-scale research and development institutions in the same industry in China, a complete manufacturing system and a huge marketing service network. It is an international manufacturing company integrating R&D, manufacturing, marketing and service.
STH’s machines have been sold all over the world (70 countries), such as: Europe, Canada, New Zealand, Southeast Asia,Pakistan, Iran, Algeria etc. The quality of the products has been significantly improved in Pharmacy, Foods, Chemical industry, and they are favored by customers at home and abroad.
Company mission: focus on quality and service
Service:
Warranty:
Our machine is under warranty for 12 months. Most components are free-replacement warranty,but the client needs to pay the DHL fee . Artificial and thunder strike damage is beyond the scope of the warranty. Spare parts are not in the warranty time.
After Sales Service :
Our engineer is available to provide after sales service oversea. Customers need to afford
the visa, tickets , accommodation, hotel and 100 USD per day.
Technical Support: We will be a consultant for clients about the technical problem before
order, provide drawing specification, design customized project, analyze and solve
technical problem.
Operation Training:
We are pleased to receive client’s technician to our factory and learn the operation course,
take photo, video.
