Product Details:
Payment & Shipping Terms:
|
| Model NO.: | GZPK520-37 | Machine Material: | Carbon Steel, Stainless Steel |
|---|---|---|---|
| Number Stations: | 37 | Max Main Pressure: | 100 KN |
| Max Pre-Pressure: | 20 KN | Max Production Capacity: | 355200 PCS/H |
| Motor Power: | 11 Kw | Max Tablet Diameter: | 25 Mm |
| Max Filling Depth: | 20 Mm | Max Tablet Thickness: | 8 Mm |
| Max Turret Speed: | 80 R/min | Overall Size: | 1420*1200*1850 Mm |
| Machine Weight: | 3500 Kg | Tooling Standard: | D |
| Feeder System: | Force Feeder | ||
| Highlight: | 355200 PCS/H Rotary Tablet Press,20kN Pre-Pressure Rotary Tablet Press,37 Stations High Speed Tablet Press |
||
| Model | GZPK-37 | |
| Number Stations | 37 | |
| Tooling Standard | D | |
| Max Main Pressure(KN) | 100 | |
| Max Pre-pressure(KN) | 20 | |
| Max Tablet Diameter(mm) | Round Tablet | 25 |
| Irregular Tablet | 25 | |
| Max Filling Depth(mm) | 20 | |
| Max Tablet Thickness(mm) | 8 | |
| Max Turret Speed(r/min) | 80 | |
| Max Production Capacity(pcs/h) | 355200 | |
| Motor Power(kw) | 11 | |
| Overall Size(mm) | 1420*1200*1850 | |
| Machine Weight(kg) | 3500 | |
|

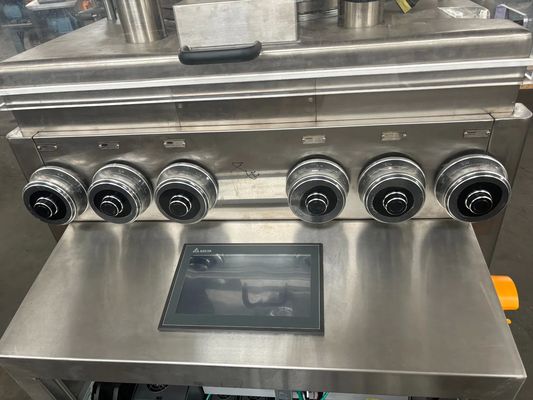

HMI touch screen 10 inch (Delta) (Display Chinese,English or other languages) 1. Display pressure value for each punch. 2. Automatic adjusting main pressure, pre- pressure and tablet weight. 3.With 3-level management authority,product formula management. 4.CFR 21 part 11 electronic record and electronic signature function etc. |
|
Electrical system 1.Adopt international famous brand, such as Delta, Siemens and Schneider etc |
|
Adapt Filling servo motor |
|
Adapt Filling adjust electronic scale |
|
Main pressure adjust electronic scale |
|
Automatic lubrication oil &grease system 1.Lubrication oil to lubricate punches, tracks Grease oil to lubricate shaft & bearings. |
| |
Perfect tablet system
|
|
Turret structure and materials
5. Lower punch with dust proof ring 6.Full closed working turret |
|

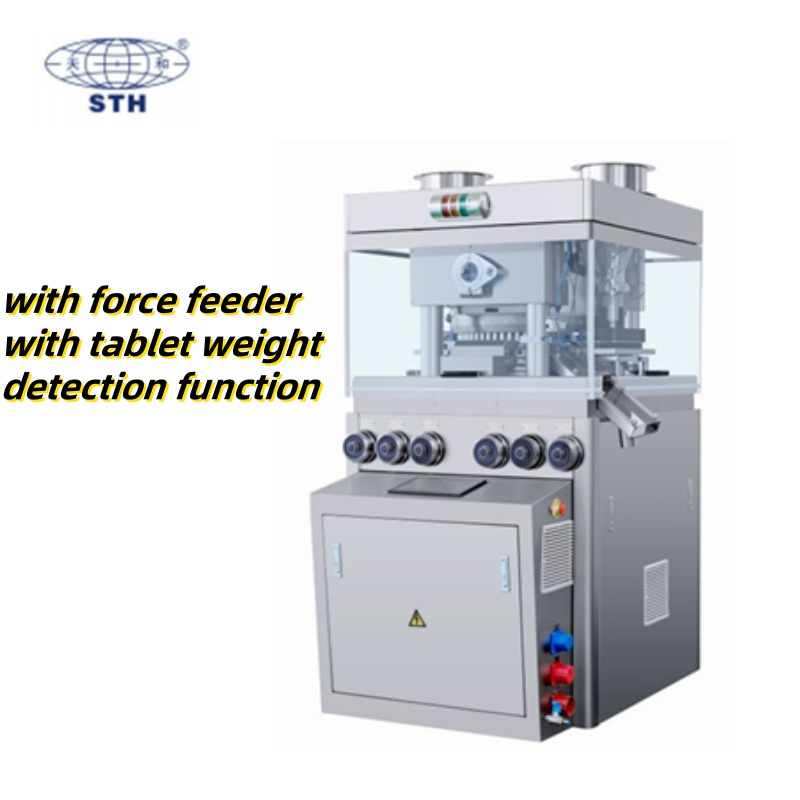

Force feeder system 1.Adopt force feeder, Improve granules flow-ability and filling performance, ensure the filling precision Stainless steel hopper (SS316L) 1. Powder level sensor 2..Adjusting valve for powder flow 3.Soft sleeve connecting hopper and force feeder (food grade silicone) |
|
Upper & lower punch protection device 1.Upper & lower punch tightness protection sensor, when the powder sticks on the punch, the machine can stop automatically |
|
Tablet rejection system |
|
Alarm System |
|
Emergency stop switch,main machine connector,Dust collector connector,Tablet De-duster connector. |
|
Power switch and tablet De-duster connector |
|
Punches & dies( Customization according to customer's requirements)
|
1. Installation Services are available with all new machine purchases. We will provide the technical know how for your operation smooth transition and support for installing, debugging, operation of the machine, it will indicate you how to use this machine well.
2. We dispatch our engineer to customer factory to set up and run the machine.
3. We will provide our customers with good quality,good serivce,good price and good friendship.
Shanghai Tianhe Pharmaceutical Machinery Co., Ltd. Is the innovative leading manufacturer and professional total-solution supplier for pharmaceutical processing machines, packaging equipments and related service in Pharmaceutical & Food industry over 30 years and exported over 70 countries.
We are a high-technology enterprise, all tasks from casting to metal machining and general assembly are accomplished by ourselves. We are dedicating ourselves to reinforce quality control and satisfactory service. We can supply the most suitable products to our clients based on detailed URS analysis and mutual communication.
All machine in our factory can be customized depending on your requirements,We have successful experience design machines according to customer's requirement. The machine absorbing advanced technology in the world, is the new generation of the automatic filling and sealing machine. It has the characters like Omron PLC control,reasonable design, compact structure, beautiful appearance, stable and reliable performance, high filling accuracy, adaptability, simple operation, easy maintenance, cleaning and convenient.
