90r/Min Turret SS Foodstuff High Speed Rotary Tablet Press Machine

Certification
China Shanghai Tianhe Pharmaceutical Machinery Co., Ltd. certification
China Shanghai Tianhe Pharmaceutical Machinery Co., Ltd. certification
STH products have excellent performance and work site environment are satisfied.

—— Miss Pattraporn Hiti,Davao, Philippines

They provide perfect service, products' working character meet.

—— Alina , California, USA

I'm Online Chat Now

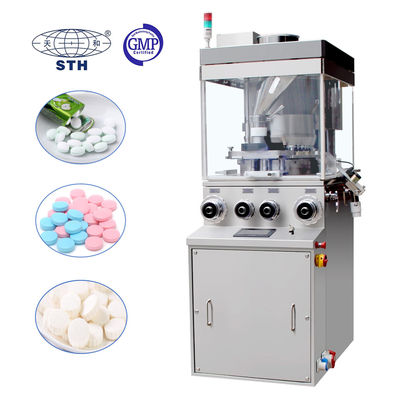

90r/Min Turret SS Foodstuff High Speed Rotary Tablet Press Machine

China 90r/Min Turret SS Foodstuff High Speed Rotary Tablet Press Machine supplier
90r/Min Turret SS Foodstuff High Speed Rotary Tablet Press Machine supplier 90r/Min Turret SS Foodstuff High Speed Rotary Tablet Press Machine supplier 90r/Min Turret SS Foodstuff High Speed Rotary Tablet Press Machine supplier

Large Image :  90r/Min Turret SS Foodstuff High Speed Rotary Tablet Press Machine

Product Details:

Place of Origin: China
Brand Name: Shanghai Tianhe Pharmaceutical Machinery Co., Ltd.
Certification: GMP
Model Number: GZPK-32 series High Speed Rotary Tablet Press
Contact Now
Detailed Product Description
Product Name: GZPK-32 Series High Speed Rotary Tablet Press Brand Name: Shanghai Tianhe Pharmaceutical Machinery Co., Ltd.
Function: Tablet Press Material: Transparent Windows And Stainless Steel
Feature: Fully-closed, Frequency Inverter-used Key Selling Points: Automatic
Capacity(pcs/h): 140000 Warranty: 1 Year
Max Filling Depth (mm): 16 Max Tablet Thickness (mm): 6
High Light:

SS Rotary Tablet Press Machine

,

Foodstuff Rotary Tablet Press Machine

,

90r/Min Turret Tablet Press Machine

Single Side Series High Speed Rotary Tablet Press Machine

Application


This machine is one kind of single side rotary tablet press machine, which can press granular materials into round shape tablet, irregular tablet or double-side engraved tablet.
This machine is mainly used in pharmaceutical, chemistry, foodstuff, electronic industries.


Model GZPK-26 GZPK-32 GZPK-40 GZPK-44
Number of Stations 26 32 40 44
Tooling Standard D B BB BBS



90r/Min Turret SS Foodstuff High Speed Rotary Tablet Press Machine 0


Feature:

  1. This machine is made of stainless steel and the surface of the rotary turret is covered with a hardened layer so that the turret surface is wear resistant.
  2. The machine conforms to GMP requirements.
  3. Adopt transparent windows, tableting state can be observed clearly.
  4. Speed adjustable by frequency inverter, the motor is fixed on the base plate, prevent the motor vibrating during working.
  5. The upper and lower guide rails and punches are lubricated with an intermittent fixed low flow rate automatic lubricating system so as to reduce the wear of guide rails.
  6. The machine can stop automatically in case of overpressure to protect the punch pins from being damaged.

90r/Min Turret SS Foodstuff High Speed Rotary Tablet Press Machine 1  90r/Min Turret SS Foodstuff High Speed Rotary Tablet Press Machine 2



90r/Min Turret SS Foodstuff High Speed Rotary Tablet Press Machine 3  90r/Min Turret SS Foodstuff High Speed Rotary Tablet Press Machine 4



Main Technical Specifications



Model GZPK-26 GZPK-32 GZPK-40 GZPK-44
Max Main Pressure (KN) 80
Max Pre-pressure (KN) 20
  round tablet 25 18 13 11
Max Tablet Diameter (mm) irregular tablet 25 19 16 13
Max Filling Depth (mm) 16
Max Tablet Thickness (mm) 6
Max Turret Speed (r/min) 90 100 110 110
Max Production Capacity (pcs/h) 140000 192000 264000 291000
Motor Power (kw) 7.5
Overall Size (mm) 1380×1200×1900
Machine Weight (kg) 1750




FAQ:



Q: Where is your factory? How can I visit your factory?

A: Our factory is located In Chongming Shanghai. We warmly welcome you to visit our factory if you have a travel plan.



Q: How can I know your machine is designed for my product?

A: If you don't mind, you can send us samples and we will test on machines. During that time, we will take videos and clearer pictures for you. We can also show you on-line by video chatting.



Q: How about the after service and guarantee period?

A: We offer 12 months warranty since the arrival of the machine. Technical support is available 24/7. This is precautionary to ensure you have what you need if the machine has to be sent in for repair. We have professional team with experienced technician to serve abroad and do the best after service to assure the machine whole life usage.



Q: How long need to ship the machines after order?

A:We have ready stock for some model machine. and other machines can be ready and shipped in 15 to 30 days after order!



Q: What's the payment you prefer?

A: Our standard payment terms are T/T with 30% deposits and balanced before shipment.

Acceptable payment term.



Q:How to contact you?

A: Please leave messages and click "send" to send us inquiries.



90r/Min Turret SS Foodstuff High Speed Rotary Tablet Press Machine 5



Company Information:



Shanghai Tianhe Pharmaceutical Machinery Co., Ltd. is the innovative leading manufacturer and professional total-solution supplier for pharmaceutical processing machines, packaging equipments and related service in Pharmaceutical & Food industry over 30 years.

We are a high-technology enterprise, all tasks from casting to metal machining and general assembly are accomplished by ourselves. We are dedicating ourselves to reinforce quality control and satisfactory clients based on detailed URS analysis and mutual communication.

Through continuous development, we have successively established good trade relations with about 2000 customers in China and our products are also well exporting to over 70 countries. Our annual sales are more than 10 million dollars.

Our mission is to provide our customer the most suitable qualified- product with best price and excellent service.

We are looking forward to building a long term and cooperative relationship with you. Please trust us as your most trustworthy friends!

90r/Min Turret SS Foodstuff High Speed Rotary Tablet Press Machine 6 90r/Min Turret SS Foodstuff High Speed Rotary Tablet Press Machine 7
