|Type:||Catalyst Production Powder Pressing Machine||Warranty:||1 Year|
|Material:||Stainless Steel||Product Name:||Automatic Pill Making Machinery|
|Function:||Catalyst Production Making Machine||Usage:||Pill Tablet Making,Automatic Making Pills For Herbal Powder|
|Condition:||New||Keyword:||Tablet Press Machine|
|Max Diameter:||40mm||Max Pressure:||200kn|
Pressure Sensor pharmaceutical pill press,
Roller structure irregular pill press,
Stainless Steel tablet punching press

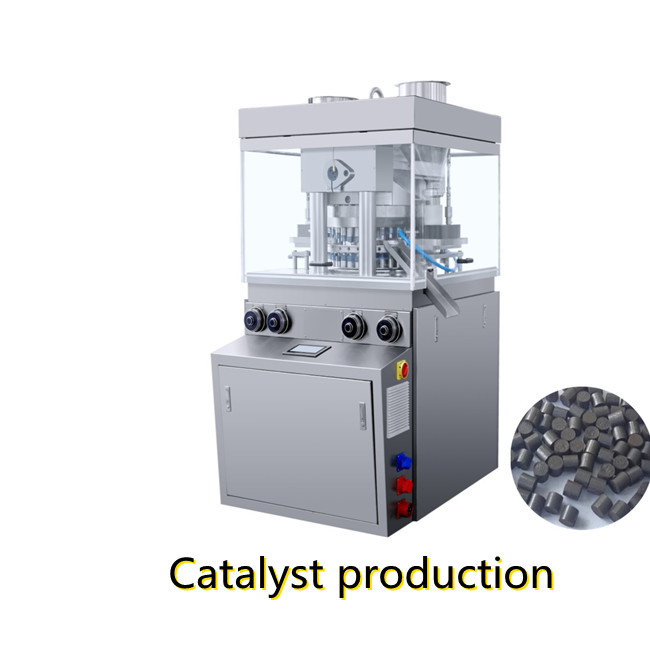

Catalyst Production Powder Press Machine for Explosion Protection System
Catalyst Production Powder Press Machine for Explosion Protection System Application:
It is a new type double-sided multi-functional tablet press machine, which can press hard-forming raw material into big size tablets, such as milk tablet, effervescent tablet, calcium tablet, dishwashing tablet, salt tablet, etc.
Catalyst Production Powder Press Machine for Explosion Protection System Technical Feature:
a. PLC and touch screen control, all the running parameter can be set and shown
b. Adopt double-side structure, high output and high pressure
c. Adopt variable frequency motor, increase the torque in low speed.
d. Install the pressure sensor inside the pressure roller shaft; show the actual pressure during work.
e. Adopt planar double-enveloping worm gear technology, large lord and high stable.
f. Automatic oil & grease central lubrication system, ensure the lubrication of pressure rollers, tooling and tracks, extending the working life of the machine.
g. Adopt electromagnetic clutch device, improve machine starting torque.
h. Machine can made double layer tables (option)
i. Force feeder device (option)
Catalyst Production Powder Press Machine for Explosion Protection System Main Technical Specifications
|Number of Stations||27||33||41|
|Max Main Pressure (KN)||200|
|Max Tablet Diameter (mm)||40||30||20|
|Max Filling Depth (mm)||35||35||35|
|Max Turret Speed (r/min)||15||20||28|
|Max Production Capacity (pcs/h)||48600||79200||138000|
|Motor Power (kw)||15||13||13|
|Overall Size (mm)||1360*1050*1848|
|Machine Weight (kg)||3800|
Shanghai Tianhe Pharmaceutical Machinery Co., Ltd. Is the innovative leading manufacturer and professional total-solution supplier for pharmaceutical processing machines, packaging equipments and related service in Pharmaceutical & Food industry over 30 years and exported over 70 countries.
We are a high-technology enterprise, all tasks from casting to metal machining and general assembly are accomplished by ourselves. We are dedicating ourselves to reinforce quality control and satisfactory service. We can supply the most suitable products to our clients based on detailed URS analysis and mutual communication.
Installation Services are available with all new machine purchases. We will provide the technical know how for your operation smooth transition and support for installing, debugging, operation of the machine, it will indicate you how to use this machine well.
All machine in our factory can be customized depending on your requirements,We have successful experience design machines according to customer's requirement. The machine absorbing advanced technology in the world, is the new generation of the automatic filling and sealing machine. It has the characters like Omron PLC control,reasonable design, compact structure, beautiful appearance, stable and reliable performance, high filling accuracy, adaptability, simple operation, easy maintenance, cleaning and convenient.
1. Each machine is manufactured by our professional workers.
2. Each machine with a strict inspection before out of storage.
3. Each machine use good quality electric elements.
4. After-sales service commitment: after one month, 3 months... we will have return visiting by phone or mail.
5. The warranty time is one year:Within Warranty period, if under the usage of instruction sheet, any product broken or damage, we will offer the repair service for free or replace for free, but clients pay for the freight from China to local place. If need our engineer go to help, clients need to pay for the freight of round-trip.
6. Beside the warranty days, we continue to provide life-long maintenance services.
