Product Details:
Payment & Shipping Terms:
|
| Product Name: | ZP35D/ ZP37D/ ZP41D Rotary Tablet Press | Type: | Rotary Tablet Press |
|---|---|---|---|
| Condition: | New | Usage: | Pill Tablet Making In Pharmaceutical , Chemistry,foodstuff,electronic Industries |
| Max Main Pressure: | 80KN | Max Tablet Thickness: | 7mm |
| Motor Power: | 4KW | Place Of Origin: | Shanghai,China |
| Warranty: | 1 Year | After Sales Service: | Video Technical Support, Online Support |
| Key Selling Point: | Automatic High Speed | Material: | Stainless Steel |
| Brand Name: | Tian He | Certification: | CE GMP ISO |
| Model: | ZP35D ZP37D ZP41D | Max Production Capacity: | 177000pcs/h |
| Machine Weight: | 1850kg | ||
| Highlight: | 80KN Pill Tablet press Machine,7mm Effervescent Tablet Compression Machine,7mm Effervescent Tablet press Machine |
||
Application:
This machine is one kind of double side rotary tablet press machine, which can press granular materials into round shape tablet, irregular tablet or double-side engraved tablet.
This machine is mainly used in pharmaceutical, chemistry, foodstuff, electronic industries.
Feature:
1. Made of stainless steel, the housing is fully closed. The surface of the rotary turret is covered with a hardened layer so that the turret surface is wear resistant. The machine conforms to GMP requirements.
2. Adopt transparent windows, tableting state can be observed clearly. The windows can be opened, cleaning and maintenance is easy.

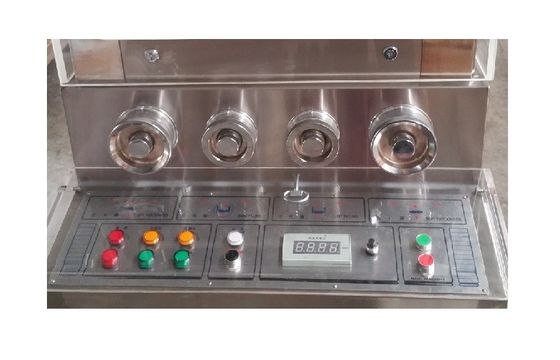

3. All controllers and operating parts are reasonably arranged. Using frequency conversion speed regulation, easy operation, stable rotation, safe and accurate.
4. All the drive devices are located inside the machine so keep the machine clean.
5. The machine can stop automatically in case of overpressure.
Advantage:
1. This machine is a kind of automatic rotary continuous tablet pressing machine, suitable for large volume of materials.
2. Suitable for pressing large size and geometric shape of tablets.
3. The parts in contact with drugs are made of stainless steel or specially treated on the surface, which are non-toxic and corrosion resistant.
4. The device is equipped with a protection system to prevent pressure overload.
Main technical specifications:
| Model | ZP41D | ZP37D | ZP35D | |
| Number of Stations | 41 | 37 | 35 | |
| Tooling Standard | ZP | ZP | ZP | |
| Max Main Pressure (KN) | 80 | 80 | 80 | |
| round tablet | 13 | 13 | 13 | |
| Max Tablet Diameter (mm) | irregular tablet | 16 | 16 | 16 |
| Max Filling Depth (mm) | 15 | 15 | 15 | |
| Max Tablet Thickness (mm) | 6 | 6 | 6 | |
| Max Turret Speed (r/min) | 36 | 36 | 36 | |
| Max Production Capacity (pcs/h) | 177000 | 160000 | 151200 | |
| Motor Power (kw) | 4 | |||
| Overall Size (mm) | 1120×950×1700 | |||
| Machine Weight (kg) | 1850 | |||
