|Product Name:||Intelligent Rotary Tablet Press||Type:||Small Output Tablet Pressing Machine|
|Application:||Pill Tablet Making||Applicable Industries:||Drug R&d Center ,Laboratories, Food Factory,chemical Engineering|
|Material:||Stainless Steel||Warranty:||1 Year|
|Quality Control:||Test Before Delivery||Automatic Grade:||Automatic|
|High Light:||Fully Enclosed Automatic Lab Pill Manufacturing Machine|
Laboratories Intelligent Rotary Tablet Press,
Intelligent Pill Compression Machine,
Automatic Pill Compression Machine

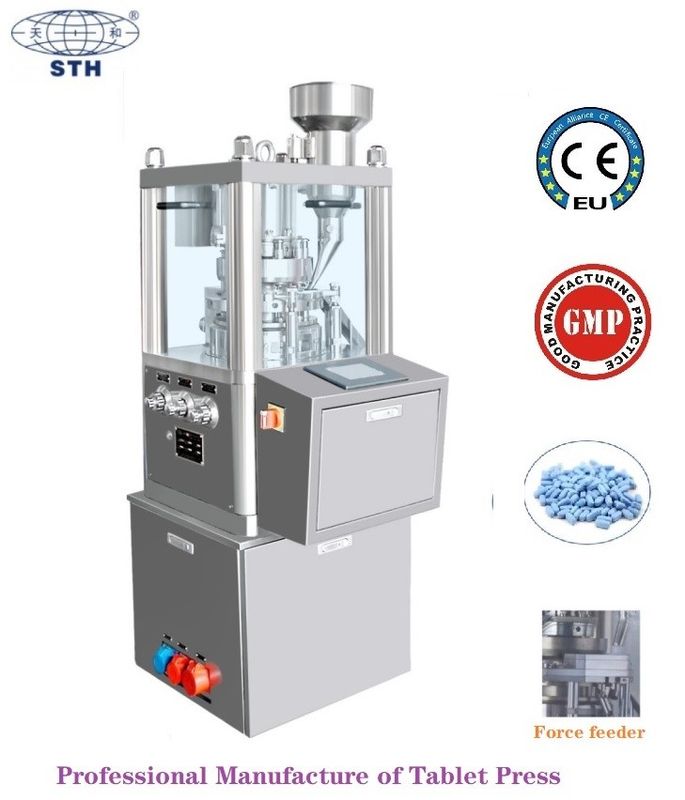

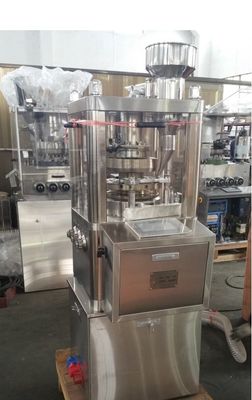

R&D laboratories Intelligent Rotary Tablet Press Small Output Pill Compression Machine
Rotary Tablet Press Machine
It is a type of small output tablet press machine mainly suitable for use in R&D laboratories.
1. single roller, fully enclosed in compliance with GMP requirement.
2. speed adjustable by frequency inverter.
3. PLC and touch screen, friendly and easy to operate.
4. Digital display main pressure, tablet ejection force, tablet thickness, filling depth, rotation speed and output.
5. with main pressure and pre-pressure
6. overload protection for motor with emergency stop device.
7. force feeder is optional.
|Number of Stations||8||10||14||17||21||23|
|Max Main Pressure (KN)||60|
|Max Pre-pressure (KN)||10|
|Max Tablet Diameter (mm)||irregular tablet||25||25||19||19||16||13|
|Max Filling Depth (mm)||16|
|Max Tablet Thickness (mm)||6|
|Max Turret Speed (r/min)||30|
|Max Production Capacity (pcs/h)||14400||18000||25200||30600||37800||41400|
|Motor Power (kw)||1.1|
|Overall Size (mm)||700×580×1630|
|Machine Weight (kg)||650|
Shanghai Tianhe Pharmaceutical Machinery Co.,ltd. (Brand STH) is founded by reorganizing the former Donghai Branch Factory of Shanghai No.1 Pharmaceutical Machinery Factory in 2000.The floor area of our factory covers 19,900 Square meters. Our registered trademark is "TH" and "STH".
STH was rewarded as a product-export type enterprise, which has the right of self import&export by ministry of Foreign Trade and Economic Cooperation of the People's Republic of China.
STH is specialized in the manufacture of pharmaceutical machinery and packaging equipment. All tasks from casting to metal machining and general assembly are accomplished by ourself. STH is a high-technology enterprise, which unites R&D new products and import&Export trade as one body.
We are not only the largest professional factory who is specialized in producing tablet press machines, but also the traditional manufacturer with a long history of over 30 years in producing pharmaceutical machinery and packaging equipment in China.
STH has obtained customers' trust and satisfaction depending on its fast development of new products, good quality, complete varieties, excellent service and economical price. Our products have serviced for over 3000 customers covered all the parts of China and been well exporting to over 60 countries and regions around the world. ” STH ” and ‘TH 'brand ZP series Rotary Tablet Presses continuously won the title of ‘The Brand Name Products of Shanghai 'from 2002 and won the awards of ‘National Major New Product', 'Shanghai Major New Product', 'Shanghai Patent New Product' and ‘Shanghai Commercialization Project of Research Findings' etc.
We have formed the production capacity of supplying the complete equipment from raw material pulverizing, vibrating, wet mixing, granulating, drying, group mixing to tablet coating, filling, packing, cartoning, sealing, boxing etc. The applicative coverage of our machines is extending to ceramic, chemical, powder metallurgical and electronic industry.
Our products have covered all the parts of China and been well exporting to over 30 countries and regions around the world. We have taken the leading position in the industry due to our ability to supply complete sets of equipment and large volumes of annual sale. The trademark of 'Tianhe' is enjoying a good reputation in domestic and overseas markets, winning the favorable comments of the customers at home and abroad.
” STH ” and ‘TH 'brand ZP series Rotary Tablet Presses continuously won the title of ‘The Brand Name Products of Shanghai 'from 2002 and won the awards of ‘National Major New Product', 'Shanghai Major New Product', 'Shanghai Patent New Product' and ‘Shanghai Commercialization Project of Research Findings' etc.
STH offers professional manufacturing and solution on Different Pharmaceutical Machinery and Packaging Materials.
1. Clients Inquiry and Consultation
2. Processing Solution Confirmation
3. Engineering and Manufacturing
4. Products Inspection
5. Shipment Arranging and Loading Job
6. Aftersales Service
Whole machine and every parts wrapped by plastic film for dusting-proof.
Packed in export standard wooden case with pallet, conducive to forklift handling.
Shipping method: by sea, by air, by international express company.
Delivery time: 30-45 days after order confirm.
Forwarder: We have shipping forwarder agent for sending the goods to all over the world, can arrange shippment to destination port and to door for customer. We also accept forwarder agent of customer.
Q: Are you a factory or a trading company?
A: We are factory manufacturing pharmaceutical tablet press machines with more than 30 years' experience,and we provide perfect OEM and after-sale service.
Q: Can you send me the video to show how the machine works?
A: Certainly, we have made video of every machine and uploaded them to Youtube.
Q: How can I know your machine works well?
A: Before delivery, we shall test the machine working condition for you.
Q: How can I know your machine is designed for my product?
A: You can send us samples of your product and we test it on machine.
Q: Do you have a CE certificate?
A: For every model of machine, it has a CE certificate.
Your Satisfaction is Our Honor!
