Product Details:
Payment & Shipping Terms:
|
Product Name: | High Speed Rotary Tablet Press | Type: | Tablet Pressing Machine |
---|---|---|---|
Applicable Industries: | Pharmaceutical, Foodstuff, Chemical, Electronic Industries | Features 1: | Perfect Tableting System, High Performance Electrical Control System, Advanced Operation System And Tablet Weight Control System |
Features 2: | Special Oil Proof, Dust Proof, Noise Proof Design | Warranty: | 1 Year |
After-sales Service Provided: | Online Support, Maintenance And Repair Service, Video Technical Support | Production Capacity: | 378000-596400pcs/h |
Max Tablet Diameter: | 25mm | ||
High Light: | Engraved High Speed Tablet Press,Fully Enclosed High Speed Tablet Press,Foodstuff High Speed Tablet Press |

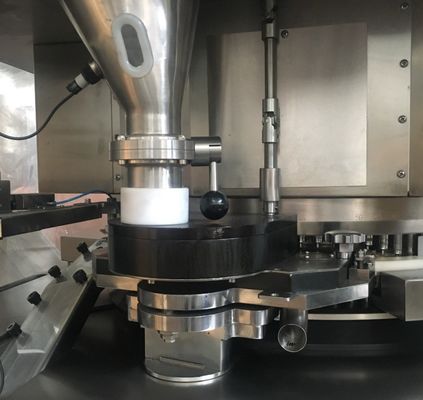

45 Stations Fully-enclosed Round Tablet Double-side Engraved Candy Pill Tablet Making Machine

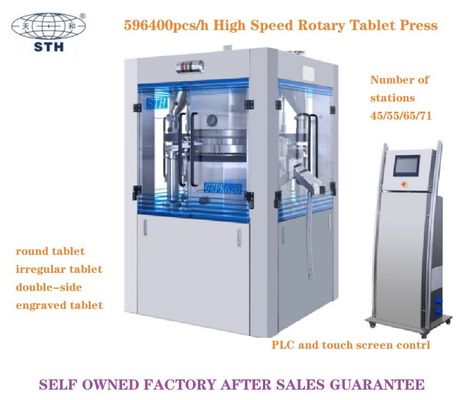

Automatic High Speed Rotary Tablet Press
Feature:
1. High speed with large quantity punches, double press rollers, suitable for mass production.
2. Made of stainless steel, the housing is fully closed. The surface of the rotary turret is covered with a hardened layer so that the turret surface is wear resistant. The machine conforms to GMP requirements.
3. Perfect tableting system, twice compression forming, reasonable framework with proper space and big pressure roller, machine performance is reliable and no tablet weight difference.
4. Double impeller type force feeder, improve granules flow-ability and filling performance, ensure the filling precision.
5. Tooling track adopt double-side lifting structure, the punches are balanced stress and wear resistance.
6. High performance electrical control system, ensure each program processing precisely.
7. Automatic oil&grease central lubrication system, ensure the lubrication of pressure rollers, toolings and tracks, extending the working life of the machine.
8. Special oil proof, dust proof and noise proof design
Technical Parameter:
Model | GZPK-45 | GZPK-55 | GZPK-65 | GZPK-69 | |
Number of Stations | 45 | 55 | 65 | 71 | |
Tooling Standard | D | B | BB | BBS | |
Max Main Pressure (KN) | 100 | ||||
Max Pre-pressure (KN) | 20 | ||||
round tablet | 25 | 18 | 13 | 11 | |
Max Tablet Diameter (mm) | irregular tablet | 25 | 19 | 16 | 13 |
Max Filling Depth (mm) | 20 | 18 | 15 | 15 | |
Max Tablet Thickness (mm) | 10 | 8 | 6 | 6 | |
Max Turret Speed (r/min) | 60 | ||||
Max Production Capacity (pcs/h) | 324000 | 396000 | 468000 | 511200 | |
Motor Power (kw) | 11 | ||||
Overall Size (mm) | 1530×1250×1900 | ||||
Machine Weight (kg) | 4200 |
Application
This machine is one kind of double side rotary tablet press machine, which can press granular materials into round shape tablet, irregular tablet or double-side engraved tablet.
This machine is mainly used in pharmaceutical, chemistry, foodstuff, electronic industries.
