|Product Name:||GZP570 Series High Speed Tablet Press||Applicable Industries:||Pharmaceutical, Health Care, Foodstuff, Chemical, Electronic|
|Market Type:||New-style||Material:||Stainless Steel|
|Max Main Pressure:||100KN||Max Pre-pressure:||40KN|
|Tablet Diameter:||11mm-25mm||Production Capacity:||295200-468000pcs/h|
|Key Selling Point:||Competitive Factory Price||Warranty:||1 Year|
|Quality Control:||Test Before Delivery|
25mm healthcare tablet compression machine,
25mm rotary tablet compression equipment,
GMP healthcare tablet compression machine
New-style High Speed Tablet Press Chinese Medicine Tablet Large Tablet Compressor Medicine Health Care Ideal Product

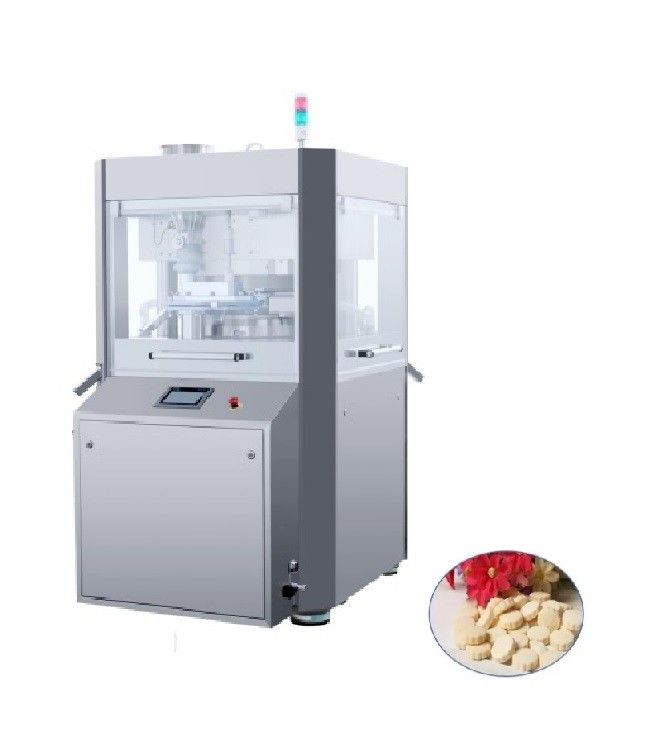

GZP570 Series High Speed Tablet Press
Product quick Details:
-This model tablet press is the latest high-speed tablet press developed by our company.Novel and reasonable structure, high automation,excellent material and electrical configuration,table and reliable operation and beautiful appearance.
-This machine is an ideal upgrading product of pharmaceutical & healthcare industries.
-plc and touch screen control,simple operation,easy and quick cleaning,conforms to GMP standard.
-This machine is suitable for direct powder compression,herbal medicine tablets and big size tablets.
1. Perfect pressure system with main pressure & pre pressure, large pressure wheel with special structure design, so the machine has the ability of bearing heavy load without deformation and having long compression time.
2. Machine rotation speed is high and the turret linear speed is more than 100m/min; the maximum output can reach 450,000 tablets/h, it can meet the requirements of mass production for most pharmaceutical companies.
3. Upper pressure wheel is equipped with high accuracy pressure sensor through the lever principle. The average working pressure and single value pressure of tablets can be accurately displayed in touch screen. Once actual working pressure exceeds the limit, the machine will automatically stop.
4. This machine adopts automatic lubrication system to supply oil to the upper & lower guide rails, pressure wheels, upper & lower punches, etc., The lubrication time is freely adjusted on the touch screen, so as to obtain the best lubrication effect, reduce noise and extend the using life of related parts.
5. Without handwheel control, the main pressure, pre-pressure and filling volume can be adjusted automatically via touch screen.
6. Adopt high strength frame structure, main pressure 100KN and pre-pressure 40KN. It is especially suitable for direct powder compression, herbal medicine tablets and big size tablets.
7. The tablet compression chamber adopts fully enclosed transparent window structure, which can clearly observe the working state.The tablet chute is located on the corner of main column, which makes it easy to open the door and window, ensure good sealing performance and effectively prevents dust pollution.
8. Tablet compression chamber is completely separated from mechanism transmission area to effectively prevent cross contamination. All the contact parts are made of stainless steel or special surface treatment. There is no dead corner in the tablet pressing chamber, easy to load and unload molds, easy to clean and maintain. It meets the GMP standard.
Main technical parameters:
|Number of stations||41||51||61||65|
|Max main pressure (KN)||100|
|Max pre-pressure (KN)||40|
|Max Tablet Diameter (mm)||Round tablet||25||18||13||11|
|Max filling depth (mm)||20||18||15||15|
|Max tablet thickness (mm)||10||8||6||6|
|Max turret speed (R / min)||60|
|Max production capacity (PCS / h)||295200||367200||439200||468000|
|Motor power (kw)||11||7.5|
|Overall size (mm)||1420×1200×1850|
|Machine weight (kg)||3500|

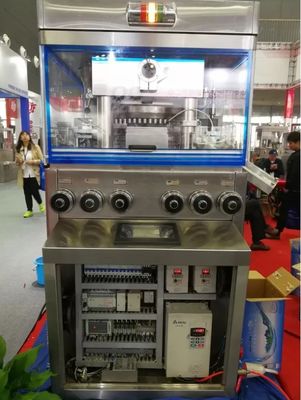

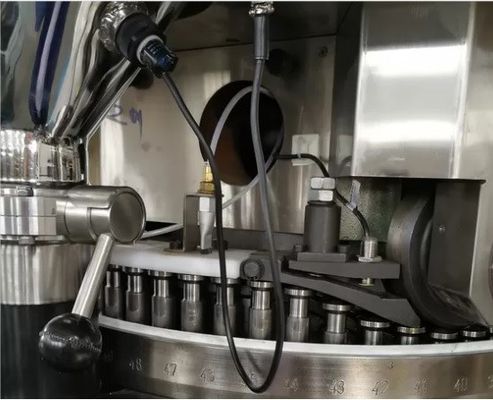

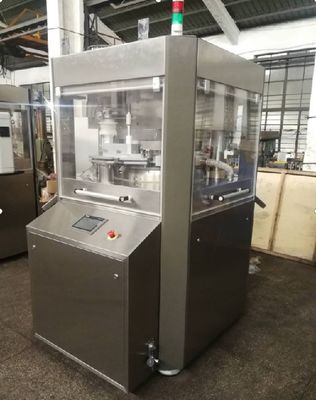

Product real shot:
Shanghai Tianhe Pharmaceutical Machinery Co.,ltd. (Brand STH) is founded by reorganizing the former Donghai Branch Factory of Shanghai No.1 Pharmaceutical Machinery Factory in 2000.The floor area of our factory covers 19,900 Square meters. Our registered trademark is "TH" and "STH".
STH was rewarded as a product-export type enterprise, which has the right of self import&export by ministry of Foreign Trade and Economic Cooperation of the People's Republic of China.
STH is specialized in the manufacture of pharmaceutical machinery and packaging equipment. All tasks from casting to metal machining and general assembly are accomplished by ourself. STH is a high-technology enterprise, which unites R&D new products and import&Export trade as one body.
We are not only the largest professional factory who is specialized in producing tablet press machines, but also the traditional manufacturer with a long history of over 30 years in producing pharmaceutical machinery and packaging equipment in China.
STH has obtained customers' trust and satisfaction depending on its fast development of new products, good quality, complete varieties, excellent service and economical price. Our products have serviced for over 3000 customers covered all the parts of China and been well exporting to over 60 countries and regions around the world. ” STH ” and ‘TH 'brand ZP series Rotary Tablet Presses continuously won the title of ‘The Brand Name Products of Shanghai 'from 2002 and won the awards of ‘National Major New Product', 'Shanghai Major New Product', 'Shanghai Patent New Product' and ‘Shanghai Commercialization Project of Research Findings' etc.
We have formed the production capacity of supplying the complete equipment from raw material pulverizing, vibrating, wet mixing, granulating, drying, group mixing to tablet coating, filling, packing, cartoning, sealing, boxing etc. The applicative coverage of our machines is extending to ceramic, chemical, powder metallurgical and electronic industry.
