Product Details: |
| Tablet Type: | ZP5/7/9 Lab Tablet Press Machine | Max Production Capacity: | 12600 Pcs/tablet |
|---|---|---|---|
| Material: | Stainless Steel | Tooling Standard: | ZP Tooling |
| After Warranty Service: | Video Technical Support, Online Support | Suitable Material: | Granular |
| Tablet Shape: | Round Tablet Abd Irregular Tablet | Key Selling Points: | Long Service Life |
| Tablet Diameter: | 3-18mm | ||
| Highlight: | lab tablet press machine with warranty,spirulina tablets press machine,10000 tablets per hour press |
||
| Tablet Type | ZP5/7/9 Lab tablet press machine |
|---|---|
| Max Production Capacity | 12600 pcs/tablet |
| Material | Stainless Steel |
| Tooling Standard | ZP tooling |
| After Warranty Service | Video technical support, Online support |
| Suitable Material | Granular |
| Tablet Shape | Round Tablet And Irregular Tablet |
| Key Selling Points | Long Service Life |
| Tablet Diameter | 3-18mm |

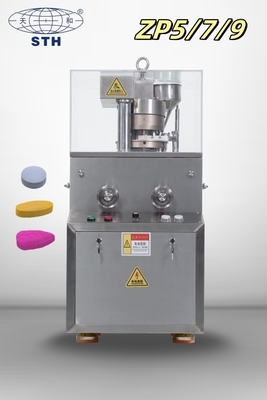

| Model | ZP-5A/5B | ZP7A/7B | ZP-9A/9B |
|---|---|---|---|
| Punch Type | ZP | ||
| Numbers of Punch Stations | 5 | 7 | 9 |
| Max Pressure (kN) | 60 | ||
| Max Tablet Diameter (Round shape, mm) | 13/18 | ||
| Max Filling Depth (mm) | 15 | ||
| Max Thickness of Tablet (mm) | 6 | ||
| Max Turret Rotation Speed(r/min) | 30 | ||
| Max Production Capacity (tablets/hour) | 9,000 | 12,600 | 16,200 |
| Electrical Supply Parameters | 2.2kw, 220V,1P/380V,3P | ||
| Dimensions (mm) | 480*630*1020 | ||
| Weight (kg) | 260 | ||
The ZP130 Series Rotary Tablet Press is a new generation product developed by our factory. This machine is a single roller, continuous automatic tablet press designed for producing various shapes and plain tablets. It is primarily used in the pharmaceutical industry but is also applicable in the chemical, food, and electronics industries.
SHANGHAI TIANHE PHARMACEUTICAL MACHINERY CO.,LTD (STH) was founded in 1992. The company is located in Chongming island Shanghai,China. In the 40 years since its establishment, STH has successfully achieved an extraordinary leap based on the strategy of "brand-opening and terminal-oriented". Development and become a mature enterprise in the tablet press machine industry in one fell swoop.
STH mainly produces tablet press machine, packing machine, processing equipment suitable in Pharmacy, Foods, Chemical industry. And has independent large-scale research and development institutions in the same industry in China, a complete manufacturing system and a huge marketing service network. It is an international manufacturing company integrating R&D, manufacturing, marketing and service.
STH's machines have been sold all over the world (70 countries), such as: Europe, Canada, New Zealand, Southeast Asia,Pakistan, Iran, Algeria etc. The quality of the products has been significantly improved in Pharmacy, Foods, Chemical industry, and they are favored by customers at home and abroad.
Company mission: focus on quality and service
Our machine is under warranty for 12 months. Most components are free-replacement warranty,but the client needs to pay the DHL fee. Artificial and thunder strike damage is beyond the scope of the warranty. Spare parts are not in the warranty time.
Our engineer is available to provide after sales service oversea. Customers need to afford the visa, tickets, accommodation, hotel and 100 USD per day.
We will be a consultant for clients about the technical problem before order, provide drawing specification, design customized project, analyze and solve technical problem.
We are pleased to receive client's technician to our factory and learn the operation course, take photo, video.
