Product Details:
Payment & Shipping Terms:
|
| Model NO.: | GZPK-40 | Number Stations: | 40 |
|---|---|---|---|
| Max Main Pressure: | 100 KN | Max Pre-Pressure: | 100 KN |
| Max Production Capacity: | 264000 PCS/H | Motor Power: | 11 Kw |
| Max Tablet Diameter: | 13 Mm (Round), 16 Mm (Irregular) | Max Filling Depth: | 16 Mm |
| Max Tablet Thickness: | 6 Mm | Max Turret Speed: | 110 R/min |
| Overall Size: | 1380*1200*1900 Mm | Machine Weight: | 1750 Kg |
| Hopper Volume: | 15L | Turret Material: | HT300 & 2Cr13 |
| Tooling Standard: | BB | ||
| Highlight: | 40 Stations Tablet Press Machine,100kN Pressure High Speed Rotary Tablet Press,264000 PCS/H Capacity Pharmaceutical Tablet Press |
||

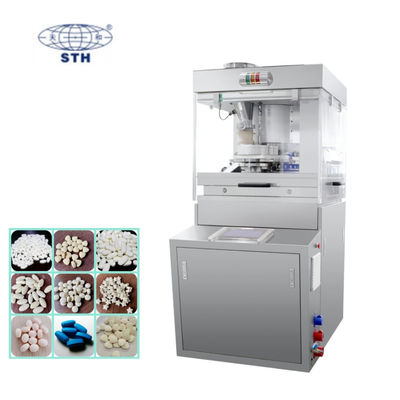

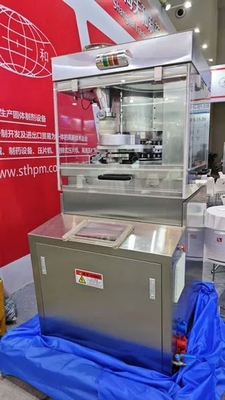

This single-sided press type rotary tablet press machine transforms granular materials into round, irregular, or double-side engraved tablets. Designed for pharmaceutical, chemical, food, and electronic industries, it meets GMP requirements.
| Model | GZPK-40 |
|---|---|
| Number of Stations | 40 |
| Tooling Standard | BB |
| Max Main Pressure | 80 KN |
| Max Pre-pressure | 20 KN |
| Max Tablet Diameter | 13mm (Round), 16mm (Irregular) |
| Max Production Capacity | 264,000 pcs/hour |
| Motor Power | 7.5 kW |
| Dimensions | 1380×1200×1900 mm |
| Weight | 1750 kg |
Delta 10-inch Color Touch Screen: Displays real-time working pressure, rotation speed, output counter, and other data with 3-level management authority and optional remote access.
100KN Pressure Structure: Suitable for powder direct pressing with automatic control via servo motor and real-time pressure monitoring with over-pressure protection.
Premium Electrical System: Features international brands including Delta and Schneider components.
11KW ABB Motor: Provides reliable power for continuous high-speed operation.
Automatic Lubrication: Dual oil and grease system maintains optimal lubrication for punches, tracks, shafts, and bearings.

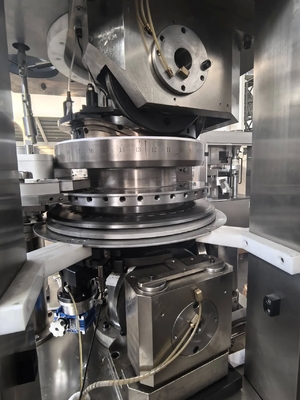

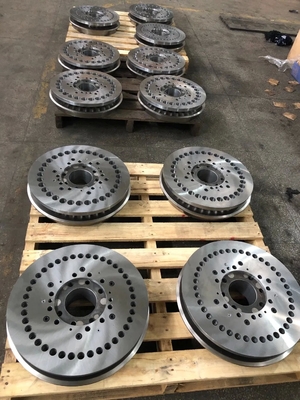

Durable Turret Construction: Three-part structure using HT300 & 2Cr13 materials with hardened wear-resistant surface and full dust protection.
Export-Ready Packaging: Wooden crates meeting international standards with 15-45 day delivery via sea, air, or express.
A: Our factory is in Shanghai's Chongming District. We welcome visits by appointment.
A: Send samples for testing - we'll provide videos and online demonstrations.
A: 1-year warranty with 24-hour technical support and lifetime assistance.
With over 30 years of experience, we're a leading manufacturer of pharmaceutical processing machines, exporting to 70+ countries. Our vertically integrated facility handles everything from casting to final assembly, ensuring quality control throughout production.
