Product Details:
Payment & Shipping Terms:
|
| Model NO.: | GZP570 (41) | Machine Material: | Carbon Steel, Stainless Steel |
|---|---|---|---|
| Number Stations: | 41 | Max Main Pressure: | 100kN |
| Max Pre-Pressure: | 40kN | Max Production Capacity: | 295200PCS/H |
| Motor Power: | 11Kw | Max Tablet Diameter: | 25mm |
| Max Filling Depth: | 20mm | Max Tablet Thickness: | 10mm |
| Max Turret Speed: | 60r/min | Overall Size: | 1420*1200*1850mm |
| Machine Weight: | 3500kg | Tooling Standard: | D |
| Turret Material: | HT300 & 2Cr13 | ||
| Highlight: | 41 Stations High Speed Tablet Press,295200 PCS/H Rotary Tablet Press Machine,11Kw Motor Power Pharmaceutical Tablet Press |
||

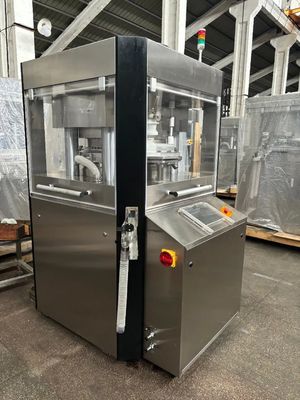

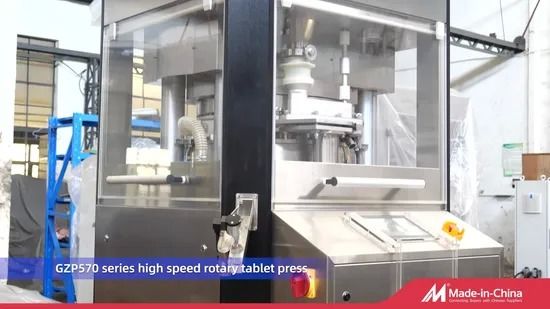

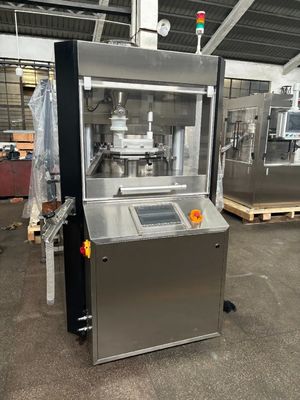

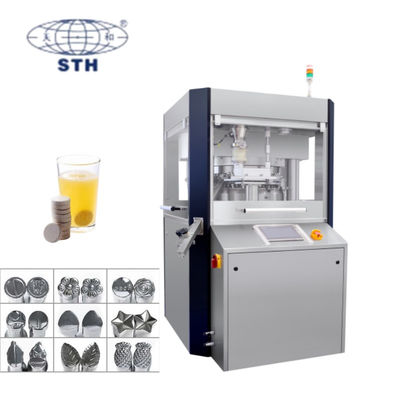

This double-side rotary tablet press machine transforms granular materials into round, irregular, or double-side engraved tablets. Ideal for pharmaceutical, chemical, foodstuff, and electronic industries.
| Model | GZP-41 |
|---|---|
| Number Stations | 41 |
| Tooling Standard | D |
| Max Main Pressure (KN) | 100 |
| Max Pre-pressure (KN) | 40 |
| Max Tablet Diameter (mm) | 25 (Round/Irregular) |
| Max Filling Depth (mm) | 20 |
| Max Tablet Thickness (mm) | 10 |
| Max Turret Speed (r/min) | 60 |
| Max Production Capacity (pcs/h) | 295,200 |
| Motor Power (kw) | 11 |
| Overall Size (mm) | 1420×1200×1850 |
| Machine Weight (kg) | 3500 |

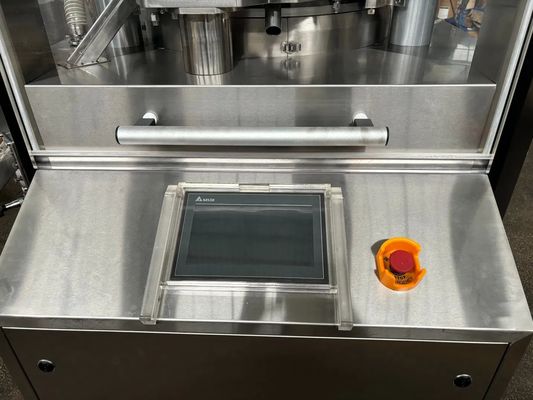

Handwheel-free control with automatic adjustment of main pressure, pre-pressure, and filling volume via touch screen.
Dual lubrication with oil for punches/tracks and grease for shafts/bearings.

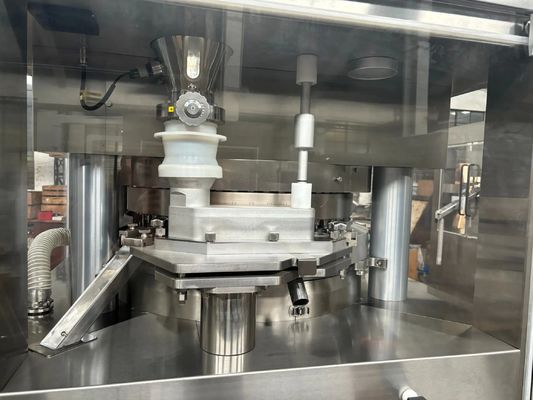

Stable direct-mounted design with double blade wheel feeding for consistent material distribution.
Rotary valve controlled powder flow for precise material handling.
Shanghai Tianhe Pharmaceutical Machinery Co., Ltd. is a leading manufacturer of pharmaceutical processing machines with over 30 years of experience, exporting to 70+ countries. We offer complete in-house manufacturing from casting to assembly and provide customized solutions based on customer requirements.
