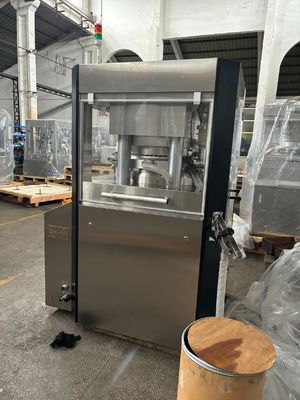

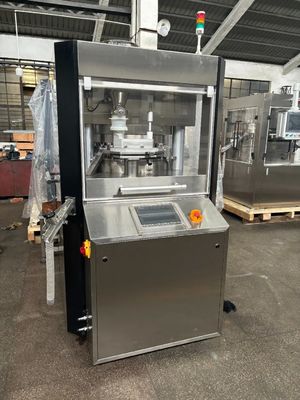

41 Stations High Speed Tablet Press with 100 kN Main Pressure and 40 kN Pre-Pressure for Pharmaceutical Production

China 41 Stations High Speed Tablet Press with 100 kN Main Pressure and 40 kN Pre-Pressure for Pharmaceutical Production supplier
41 Stations High Speed Tablet Press with 100 kN Main Pressure and 40 kN Pre-Pressure for Pharmaceutical Production supplier 41 Stations High Speed Tablet Press with 100 kN Main Pressure and 40 kN Pre-Pressure for Pharmaceutical Production supplier 41 Stations High Speed Tablet Press with 100 kN Main Pressure and 40 kN Pre-Pressure for Pharmaceutical Production supplier 41 Stations High Speed Tablet Press with 100 kN Main Pressure and 40 kN Pre-Pressure for Pharmaceutical Production supplier 41 Stations High Speed Tablet Press with 100 kN Main Pressure and 40 kN Pre-Pressure for Pharmaceutical Production supplier 41 Stations High Speed Tablet Press with 100 kN Main Pressure and 40 kN Pre-Pressure for Pharmaceutical Production supplier

Large Image :  41 Stations High Speed Tablet Press with 100 kN Main Pressure and 40 kN Pre-Pressure for Pharmaceutical Production

Product Details:

Certification: CE, GMP, ISO, EAC

Payment & Shipping Terms:

Minimum Order Quantity: 1
Price: 60000
Contact Now
Detailed Product Description

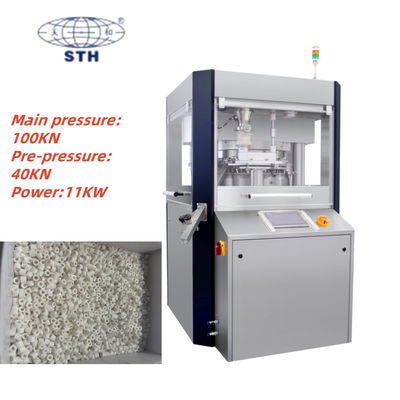

Model NO.: GZP570 (41) Machine Material: Carbon Steel, Stainless Steel
Number Stations: 41 Max Main Pressure: 100 KN
Max Pre-Pressure: 40 KN Max Production Capacity: 295200 PCS/H
Motor Power: 11 Kw Max Tablet Diameter: 25 Mm
Max Filling Depth: 20 Mm Max Tablet Thickness: 10 Mm
Max Turret Speed: 60 R/min Overall Size: 1420*1200*1850 Mm
Machine Weight: 3500 Kg Tooling Standard: D
Turret Material: HT300 & 2Cr13
Highlight:

41 Stations High Speed Tablet Press

,

100 kN Main Pressure Rotary Tablet Press Machine

,

40 kN Pre-Pressure Pharmaceutical Tablet Press

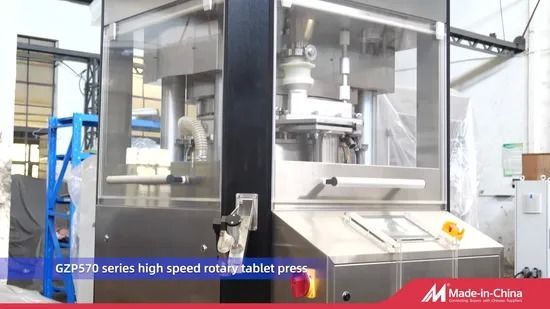

GZP570 (41) High Speed Rotary Tablet Press Machine
41 Stations High Speed Tablet Press with 100 kN Main Pressure and 40 kN Pre-Pressure for Pharmaceutical Production 0 41 Stations High Speed Tablet Press with 100 kN Main Pressure and 40 kN Pre-Pressure for Pharmaceutical Production 1
Application
This double-side rotary tablet press machine transforms granular materials into round, irregular, or double-side engraved tablets. Ideal for pharmaceutical, chemical, foodstuff, and electronic industries.
Key Features
  1. Advanced pressure system with double pressure forming (main pressure and pre-pressure) ensures tablet weight accuracy and hardness
  2. High-speed turret rotation (103m/min linear speed) with maximum output of 450,000 tablets/hour
  3. Precision pressure monitoring with emergency stop protection when exceeding set values
  4. Automatic lubrication system with adjustable frequency and timing via touch screen
  5. Programmable controller with color touch screen interface for intuitive operation
  6. Comprehensive protection functions including lubrication alerts and emergency stops
  7. Stable forced feeding device with material level sensor for automatic low-level alerts
  8. Compact integrated design with high production capacity at competitive pricing
  9. Premium materials including military-grade copper track and Japanese-cast components
  10. Precision machining with machining center processing for high part accuracy
  11. High-precision worm gear box with minimal clearance and low noise operation
  12. 100KN main pressure and 40KN pre-pressure ideal for traditional Chinese medicine tablets
  13. Special turntable lubricating oil chamber reduces wear on lower punch rods
Technical Specifications
Model GZPK-41
Number Stations 41
Tooling Standard D
Max Main Pressure (KN) 100
Max Pre-pressure (KN) 40
Max Tablet Diameter (mm) 25 (Round/Irregular)
Max Filling Depth (mm) 20
Max Tablet Thickness (mm) 10
Max Turret Speed (r/min) 60
Max Production Capacity (pcs/h) 295,200
Motor Power (kw) 11
Overall Size (mm) 1420×1200×1850
Machine Weight (kg) 3500
41 Stations High Speed Tablet Press with 100 kN Main Pressure and 40 kN Pre-Pressure for Pharmaceutical Production 2
Delta 10 inch Color Touch Screen
  • Displays real-time working pressure, rotating speed, and output counter
  • 3-level management authority with electronic signature (CFR21)
  • Remote access capability
  • Single value pressure display
  • Formula management system
  • Handwheel-free operation with intuitive interface
Operating Table
  • Handwheel-free control with automatic adjustment of main pressure, pre-pressure, and filling volume via touch screen
41 Stations High Speed Tablet Press with 100 kN Main Pressure and 40 kN Pre-Pressure for Pharmaceutical Production 3
Electrical System
  • International brand components (Delta, Schneider)
41 Stations High Speed Tablet Press with 100 kN Main Pressure and 40 kN Pre-Pressure for Pharmaceutical Production 4
Main Motor
  • Powerful 11kw ABB motor
  • High-precision reducer for stable torque and power output
41 Stations High Speed Tablet Press with 100 kN Main Pressure and 40 kN Pre-Pressure for Pharmaceutical Production 5
Automatic Lubrication System
  • Oil lubrication for punches and tracks
  • Grease lubrication for shafts and bearings
41 Stations High Speed Tablet Press with 100 kN Main Pressure and 40 kN Pre-Pressure for Pharmaceutical Production 6

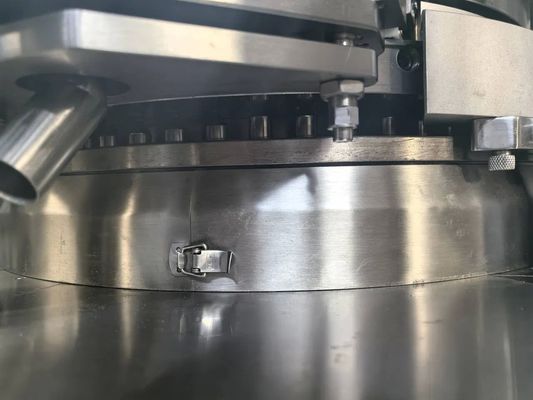

Turret Structure
  • Three-part structure with HT300 & 2Cr13 materials
  • Hardened wear-resistant surface layer
  • Upper punch with oil catch ring and dust proof ring
  • Lower punch with dust proof ring
  • Fully enclosed working turret
41 Stations High Speed Tablet Press with 100 kN Main Pressure and 40 kN Pre-Pressure for Pharmaceutical Production 7

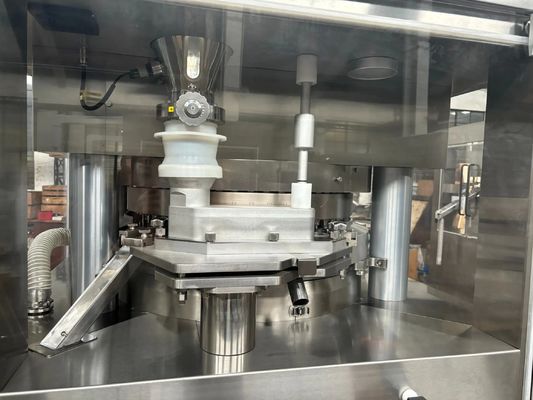

Force Feeder System
  • Directly mounted on main body for stability
  • Double blade wheel feeding disc with strong material adaptability
  • Mixing filling device prevents particle separation
41 Stations High Speed Tablet Press with 100 kN Main Pressure and 40 kN Pre-Pressure for Pharmaceutical Production 8
Force Feeder Special Hopper
  • Rotary valve controls powder flow
41 Stations High Speed Tablet Press with 100 kN Main Pressure and 40 kN Pre-Pressure for Pharmaceutical Production 9
Tablet Rejection System
  • Group waste removal function
  • Startup rejection capability
41 Stations High Speed Tablet Press with 100 kN Main Pressure and 40 kN Pre-Pressure for Pharmaceutical Production 10
Punches & Dies (Customizable)
  • TSM-Tooling standard
  • Available in round, irregular, concave, bevel edged, and multi-tipped designs
  • Material options: S7/D2, DC53, 6CrW2Si
Packaging & Shipping
41 Stations High Speed Tablet Press with 100 kN Main Pressure and 40 kN Pre-Pressure for Pharmaceutical Production 11
  • Export-standard wooden packaging (free of charge)
  • 15-45 working days delivery time
  • Shipping options: SEA, AIR, and EXPRESS
After Sales Service
  • Installation services with all new machine purchases
  • On-site engineer support for setup and operation
  • Comprehensive technical support and training
Certifications
41 Stations High Speed Tablet Press with 100 kN Main Pressure and 40 kN Pre-Pressure for Pharmaceutical Production 12
Our Exhibition
41 Stations High Speed Tablet Press with 100 kN Main Pressure and 40 kN Pre-Pressure for Pharmaceutical Production 13
Samples
41 Stations High Speed Tablet Press with 100 kN Main Pressure and 40 kN Pre-Pressure for Pharmaceutical Production 14
Company Profile
41 Stations High Speed Tablet Press with 100 kN Main Pressure and 40 kN Pre-Pressure for Pharmaceutical Production 15
Shanghai Tianhe Pharmaceutical Machinery Co., Ltd. is a leading manufacturer and total-solution supplier for pharmaceutical processing machines with over 30 years of experience, exporting to 70+ countries. As a high-technology enterprise, we handle all processes from casting to final assembly, ensuring quality control and customized solutions based on customer requirements.
