Product Details:
Payment & Shipping Terms:
|
| Model NO.: | GZP570 (61) | Machine Material: | Carbon Steel, Stainless Steel |
|---|---|---|---|
| Number Stations: | 61 | Max Main Pressure: | 100kN |
| Max Pre-Pressure: | 40kN | Max Production Capacity: | 439200 PCS/H |
| Motor Power: | 11 Kw | Max Tablet Diameter: | Round Tablet: 13mm, Irregular Tablet: 16mm |
| Max Filling Depth: | 15mm | Max Tablet Thickness: | 6mm |
| Max Turret Speed: | 60 R/min | Overall Size: | 1420*1200*1850 Mm |
| Machine Weight: | 3500 Kg | Tooling Standard: | BB |
| Turret Material: | HT300 & 2Cr13 | ||
| Highlight: | GMP 21 CFR Part 11 High Speed Tablet Press,61 Stations Rotary Tablet Press Machine,439200 PCS/H Pharmaceutical Tablet Press |
||

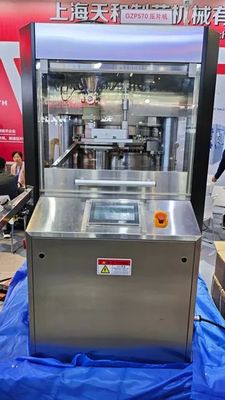

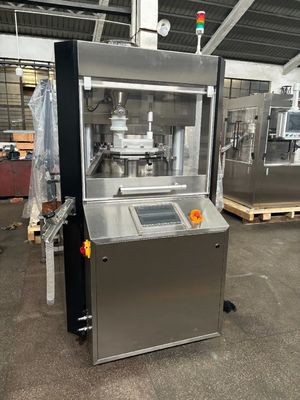

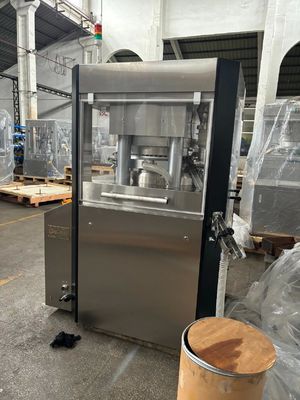

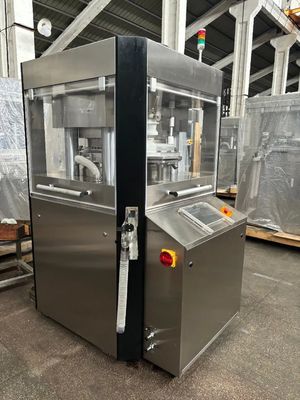

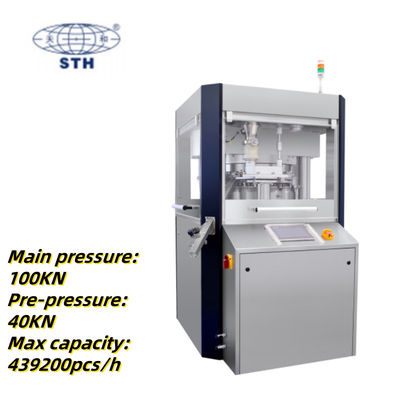

This double-side rotary tablet press machine transforms granular materials into round, irregular, or double-side engraved tablets. Ideal for pharmaceutical, chemical, foodstuff, and electronic industries.
| Model | GZP-61 |
|---|---|
| Number Stations | 61 |
| Tooling Standard | BB |
| Max Main Pressure (KN) | 100 |
| Max Pre-pressure (KN) | 40 |
| Max Tablet Diameter (mm) | Round Tablet: 13 | Irregular Tablet: 16 |
| Max Filling Depth (mm) | 15 |
| Max Tablet Thickness (mm) | 6 |
| Max Turret Speed (r/min) | 60 |
| Max Production Capacity (pcs/h) | 4,392,000 |
| Motor Power (kw) | 11 |
| Overall Size (mm) | 1420×1200×1850 |
| Machine Weight (kg) | 3500 |

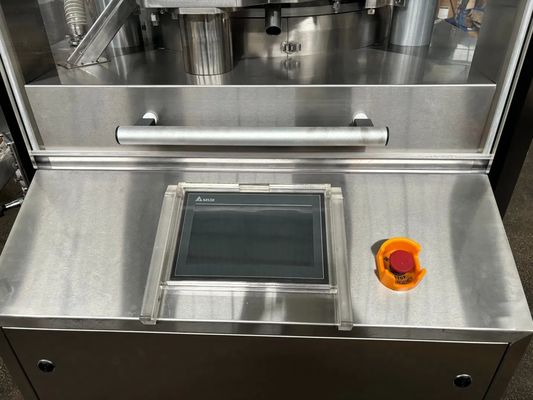

Handwheel-free control with automatic adjustment of main pressure, pre-pressure and filling volume via touch screen.
Features international brand components including Delta and Schneider.
11kw ABB motor with high-precision reducer for stable, high-torque power output.
Stable installation with double blade wheel feeding disc for excellent material adaptation and consistent powder filling.
