Shanghai Tianhe Pharmaceutical Machinery Co., Ltd.
Product Details:
Payment & Shipping Terms:
|
| Product Name: | Powder Compacting Press Machine | Number Of Stations: | 15 |
|---|---|---|---|
| Max Main Pressure (KN): | 250 | Max Tablet Diameter (mm): | 60 |
| Max Filling Depth (mm): | 57 | Max Turret Speed (r/min): | 12 |
| Applicable Industries: | Chemical, Bathroom, Swimming Pool, Pharming | Type: | Automatic Powder Pressing Machine |
| Motor: | 7.5kw | Machine Weight: | 3800kgs |
| High Light: | powder compacting press machine,powder compression machine |
||

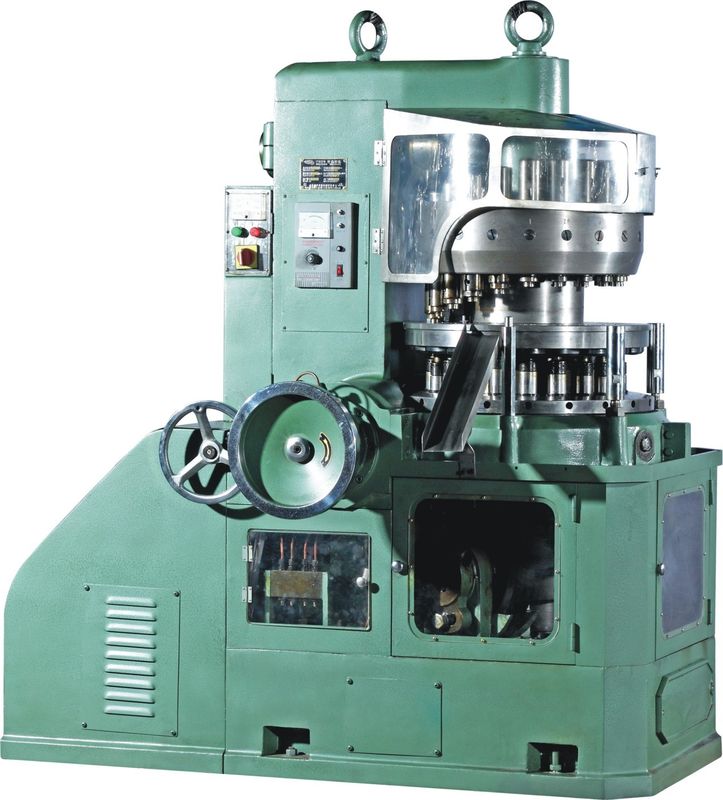

250KN Chemical Industry Catalyst Powder Tablet making machine
250KN Chemical Industry Catalyst Powder Tablet making machine Quick Details:
- 250KN main pressure
- automatic oil lubrication system
- working stable and easy operation
- strong machine structure
250KN Chemical Industry Catalyst Powder Tablet making machine Application
This machine is a latest kind of special equipment used for powder forming in petroleum, chemical, metallurgical, pharmaceutical, electronic, food and light industry. The powdered material can be pressed into various shapes with different moulds used.
250KN Chemical Industry Catalyst Powder Tablet making machine Features:
It is a kind of efficient and fast two-way automatic forming machine, which can perform the functions of automatic feeding, forming, tableting and continuous operation. The maximum working capacity is 10000 pieces per hour. The speed of work head can function through stepless speed regulation, which can be changed according to material so as to obtain the best quality. The forming pressure can be adjusted within 25 tons and the maximum feeding depth is 57mm. This machine features compact structure, good adaptability, and convenient adjustment and maintenance.
Technical Parameters:
| Model | YH15 |
| Number of Stations | 15 |
| Max Main Pressure (KN) | 250 |
| Max Tablet Diameter (mm) | 60 |
| Max Filling Depth (mm) | 57 |
| Max Tablet Thickness (mm) | 25 |
| Max Turret Speed (r/min) | 12 |
| Max Production Capacity (pcs/h) | 10800 |
| Motor Power (kw) | 7.5 |
| Overall Size (mm) | 1660×1220×1870 |
| Machine Weight (kg) | 3800 |
FAQ
1. How does the machine fit our voltage?
For each equipment, our salesman will confirm the voltage with the customer.
2. How can I buy the machine
Firstly, our salesman will discuss with you all the details of the machine, the lead time and the payment condition.
Secondly, after receiving the 30% down payment, the production will begin.
Finally, we’ll show you the photos and the test video of the finished machine. You pay the balance and the equipment will be shipped as scheduled, or by our forwarder or by your familiar forwarder.
3. How long is your machine’s warranty?
1 year after the delivery. During the one year, we can offer the broken parts free of charge, if the problem isn’t caused by wrong operation.
4. What can you provide for after-sale service?
We can send the engineer to the customer’s factory for the installation and operation training if the customer requires. We can also supply the installation and operation instruction by video.
5. If we have very special request on the production line, could you help me to do the design?
Customized design is provided.
Keywords:
powder forming machine, powder molding machine, powder moulding machine
