| Model NO.: | CGN-208 | Voltage: | 380/220V 50Hz Or Customized |
|---|---|---|---|
| Capacity: | 28000 PCS/H | Net Weight: | 400kg |
| Power: | 2.12kw | Applicable Capsule: | Hard Capsule 000, 00, 0, 1, 2, 3, 4, 5# |

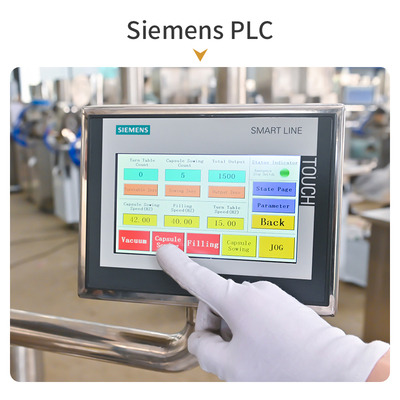

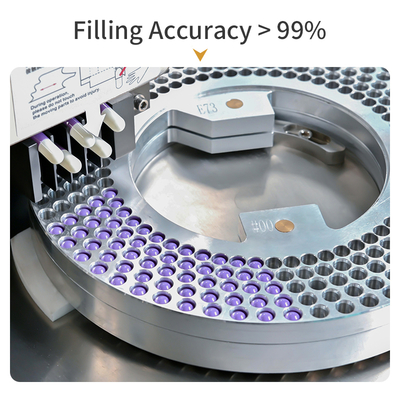

| Control Mode: | Germany Siemens Touch Screen | Filling Accuracy: | 99.8% |
| Gross Weight: | 500kg | Outline Dim.: | 1300*800*1750mm |
| Packing Size: | 1640*720*1700mm | Running Voltage: | 380V/220V/50Hz Or Customized |
| Max Capacity: | 28,000 Pcs/h | Error Range: | Within 3% |
| Noise Level: | Low Noise | ||
| Highlight: | semi-automatic capsule filling machine,capsule filling machine for hard gelatin,28000 PCS/H capsule filler |
||

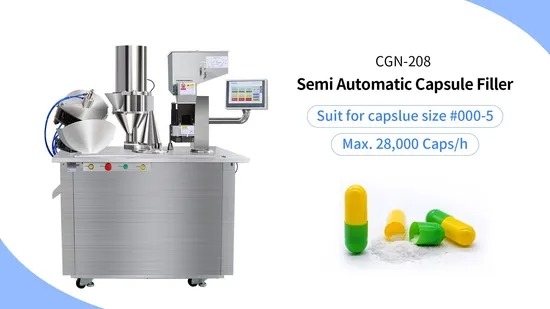

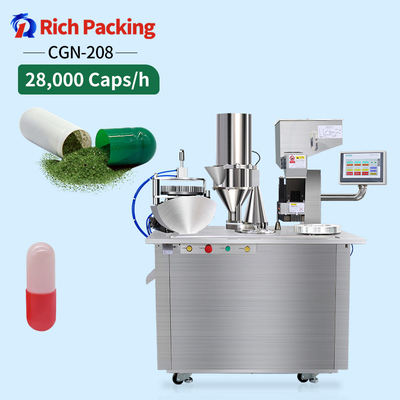

This semi-automatic hard shell capsule machine is designed for filling powder, granules, or pellets into hard hollow capsules. It accommodates standard capsule sizes 000#, 00#, 0#, 1#, 2#, 3#, 4#, and 5#. The machine features an improved capsule locking mechanism, GMP-compliant design, and is ideal for pharmaceutical manufacturers, healthcare product producers, hospitals, and laboratories.
| Attribute | Value |
|---|---|
| Model NO. | CGN-208 |
| Capacity | 28,000 PCS/H |
| Power | 2.12kw |
| Voltage | 380/220V 50Hz or Customized |
| Net Weight | 400kg |
| Gross Weight | 500kg |
| Dimensions | 1300×800×1750mm |
| Warranty | 3 Years |
| Max. Capacity | 28,000 pcs/h |
| Applicable Capsule Sizes | 000#, 00#, 0#, 1#, 2#, 3#, 4#, 5# |
| Power Supply | 2.12kw (220/380V 50Hz or Customized) |
| Packing Dimensions | 1640×720×1700mm |
Pre-sale Services: Customization support, sample testing, and factory layout planning.
After-sales Services: Complete technical documentation, installation videos, online support, and optional overseas engineer services with 3-year warranty.
A: Our factory is in Guangzhou. We welcome visits to our facility.
A: Send us samples for testing. We'll provide videos and online demonstrations of the process.
A: We offer 3 years warranty with 1 year free parts. Optional door-to-door installation services are available at $550/day.
