Shanghai Tianhe Pharmaceutical Machinery Co., Ltd.
Shanghai Tianhe Pharmaceutical Machinery Co., Ltd.
| Model NO.: | CGN-208 | Voltage: | 380/220V 50Hz Or Customized |
|---|---|---|---|
| Capacity: | 28000 PCS/H | Net Weight: | 400kg |
| Power: | 2.12kw | Applicable Capsule: | Hard Capsule 000, 00, 0, 1, 2, 3, 4, 5# |
| Control Mode: | Germany Siemens Touch Screen | Filling Accuracy: | 99.8% |
| Running Voltage: | 380V/220V/50Hz Or Customized | Gross Weight: | 500kg |
| Outline Dim.: | 1300*800*1750mm | Packing Size: | 1640*720*1700mm |
| Max. Capacity: | 28,000 Pcs/h | Power Supply: | 2.12kw |
| Filling Error: | Within 3% | ||
| Highlight: | semi-automatic capsule filling machine 28000 PCS/H,capsule filling machine 380V/220V,high-speed capsule filling machine with warranty |
||
| Attribute | Value |
|---|---|
| Model NO. | CGN-208 |
| Condition | New |
| Customized | Customized |
| Machine Type | Capsule Filling Machine |
| Voltage | 380/220V 50Hz or Customized |
| Warranty | 3 Years |
| Capacity | 28000 PCS/H |
| Net Weight | 400kg |
| Power | 2.12kw |
| Automatic Code | Semi-Automatic |
| Applicable Capsule | Hard Capsule 000, 00, 0, 1, 2, 3, 4, 5# |
| Applicable Product | Power, Granule, Pellet |
| Control Mode | Germany Siemens Touch Screen |

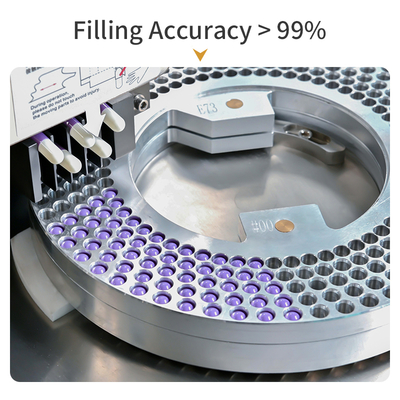

| Filling Accuracy | 99.8% |

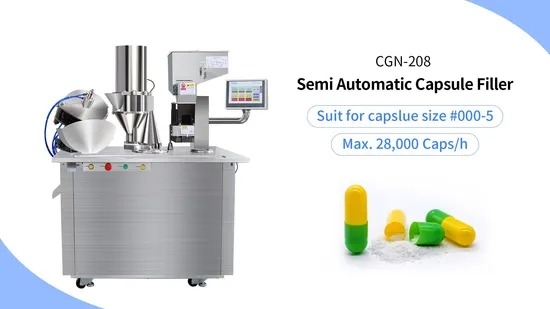

The semi-automatic capsule filler is designed for filling powder, granule, or pellet into hard hollow capsules. It accommodates standard capsule sizes from 000# to 5#. Featuring a novel structure with improved capsule locking mechanism, this machine enhances efficiency while meeting GMP production standards. Ideal for pharmaceutical manufacturers, healthcare product producers, hospitals, and laboratories.
| Max. Capacity | 28,000 pcs/h |
| Applicable Capsule | 000#, 00#, 0#, 1#, 2#, 3#, 4#, 5# |
| Power Supply | 2.12kw |
| Power | 220/380v 50 Hz or Customized |
| Gross Weight | 500 kg |
| Packing Size | 1640×720×1700mm |
A: Our factory is located in Guangzhou. We welcome visits and can arrange factory tours.
A: Send us samples for testing. We'll provide videos and pictures of the process, or demonstrate via video call.
A: We provide 3 years warranty with 1 year free parts. For damaged items upon arrival, we'll replace immediately with photo/video evidence. Overseas installation services are available at $550/day.
