| Model NO.: | CGN-208 | Voltage: | 380/220V 50Hz Or Customized |
|---|---|---|---|
| Capacity: | 28000 PCS/H | Net Weight: | 400kg |
| Power: | 2.12kw | Applicable Capsule: | Hard Capsule 000, 00, 0, 1, 2, 3, 4, 5# |
| Control Mode: | Germany Siemens Touch Screen | Filling Accuracy: | 99.8% |
| Gross Weight: | 500kg | Outline Dim.: | 1300*800*1750mm |
| Packing Size: | 1640*720*1700mm | Running Voltage: | 380V/220V/50Hz Or Customized |
| Max Capacity: | 28,000 Pcs/h | Error Range: | Within 3% |
| Noise Level: | Low Noise | ||
| Highlight: | semi-automatic capsule filling machine,capsule filling machine for hard gelatin,28000 PCS/H capsule filler |
||

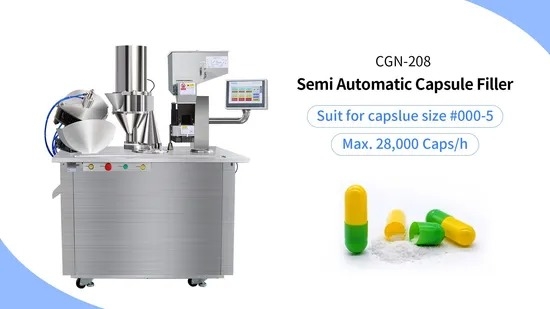

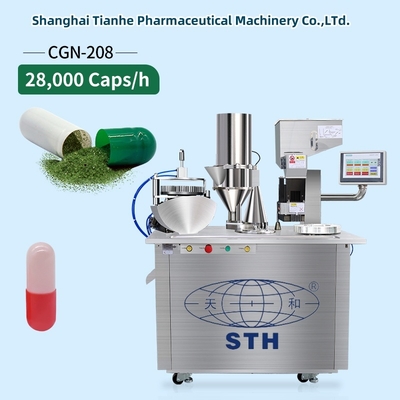

Semi automatic hard shell capsule machine is a new equipment for filling powder, granule or pellet into hard hollow capsule. Semiauto capsule filler equipment can be used for filling 000#, 00#, 0#, 1#, 2#, 3#, 4# and 5# standard capsules. The structure is novel, the structure of the capsule locking is improved, saves labor, improves work efficiency, has beautiful appearance and meets the requirements of GMP production. Semi-automatic capsule machine is the preferred product for many pharmaceutical manufacturers, health care products manufacturers, hospitals, mass production or laboratories.
Features
1. Semi automatic capsule making machine is equipped with capsule sowing protection device and emergency stop device to ensure the safety of the operator.
2. The full automatic structure is adopted to improve the efficiency of equipment and the friction caused by the artificial sowing process.
3. The mold chamfering position is accurate, ensure the sowing capsule is not lock of grain.
4. The position of the lock pocket is put in a flat way, which is locked by using the cylinder starting principle, which greatly reduces labor intensity, saves manpower resources, and reduces the leakage of the powder in the process of locking, improving the utilization efficiency and quality of the raw materials.
5. The cgmp semi automatic capsule filling machine sowing, filling and locking three working stations are set independently. It adopts electronic mechanical integration control, pneumatic joint control and variable frequency stepless speed regulation device, which facilitates the organic connection of all working procedure and improves filling speed.

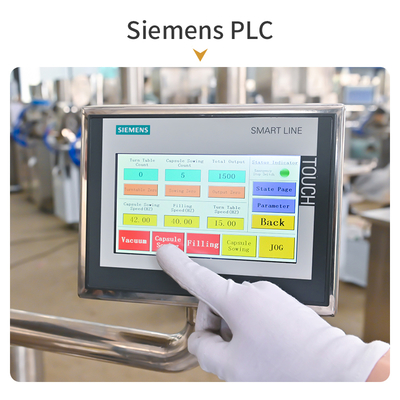

6. Equip with Siemens PLC device, touch screen operation, it is convenient for usage, while prolonging the service life.

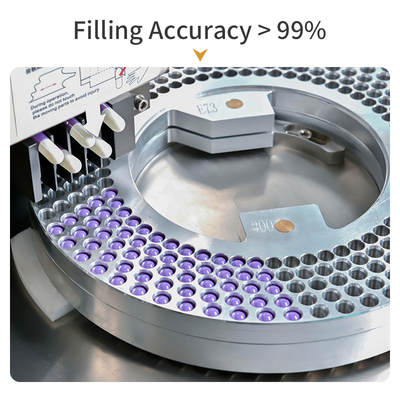

7. By controlling the loading speed and the rotary speed of the capsule plate, the filling dose is accurate and the error can be kept within 3%. Automatic filling, effective prevention of drug pollution, meet the requirements of GMP.
8. Equipped with vacuum pump, low noise and no pollution.
| Max.Capacity | 28,000 pcs/h |
| Applicable capsule | 000#, 00#, 0#, 1#, 2#, 3#, 4#, 5# |
| Power supply | 2.12kw |
| Power | 220/380v 50 Hz Or Customized |
| Gross weight of machine | 500 kg |
| Packing size | 1640*720*1700mm |
Pre-sale service
Q: Where is your factory? How can I visit your factory?
A: Our factory is located In Guangzhou. We warmly welcome you to visit our factory if you have a travel plan.
Q: How can I know your machine is designed for my product?
A: If you don't mind, you can send us samples and we will test on machines.During that time, we will take videos and clearer pictures for you. We can also show you on-line by video chatting.
Q: How about the after service and guarantee period?
A: We offer 3 years warranty since the arrival of the machine. One year free parts . If there is any damage after opening the package, please contact us and we will send good accessories immediately. Of course, you have to take photos and videos. We have professional team with experienced technician to serve abroad door-to-door installation services can be provided, calculated at US$550/day.
