Product Details: |
| Model NO.: | CGN-208 | Voltage: | 380/220V 50Hz Or Customized |
|---|---|---|---|
| Product Capacity: | 28000PCS Per Hour | Net Weight: | 500kg |
| Power: | 2.12kw | Applicable Capsule: | Hard Capsule 000, 00, 0, 1, 2, 3, 4, 5# |
| Applicable Product: | Power, Granule, Pellet | Control Mode: | Germany Siemens Touch Screen |
| Packing Size: | 1640*720*1700mm | Running Voltage: | 380V/220V/50Hz Or Customized |
| Touch Screen: | Siemens | Precision: | High Precision |
| Computerized: | Computerized | Max Capacity: | 28,000 Pcs/h |
| Power Supply: | 2.12kw | ||
| Highlight: | semi-automatic capsule filling machine 28000pcs/hour,capsule filling machine CGN-208 2.12kw,semi-automatic capsule filler with warranty |
||

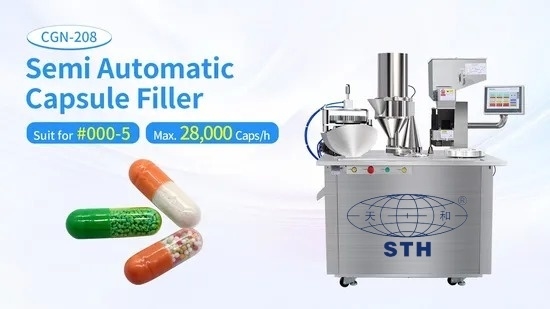

TIANHE Granule/Powder Semi-Automatic Capsule Filling Machine CGN-208 28000PCS
Product Parameters
|
Max.Capacity |
28,000 pcs/h |
|
Applicable capsule |
000#, 00#, 0#, 1#, 2#, 3#, 4#, 5# |
|
Power supply |
2.12kw |
|
Power |
220/380v 50 Hz Or Customized |
Features
1. Capsule semi-automatic is equipped with capsule sowing protection device and emergency stop device to ensure the safety of the operator.
2. The full automatic structure is adopted to improve the efficiency of equipment and the friction caused by the artificial sowing process.
3. The mold chamfering position is accurate, ensure the sowing capsule is not lock of grain.
4. The position of the lock pocket is put in a flat way, which is locked by using the cylinder starting principle, which greatly reduces labor intensity, saves manpower resources, and reduces the leakage of the powder in the process of locking, improving the utilization efficiency and quality of the raw materials.
5. The machine capsule filling semiauto sowing, filling and locking three working stations are set independently. It adopts electronic mechanical integration control, pneumatic joint control and variable frequency stepless speed regulation device, which facilitates the organic connection of all working procedure and improves filling speed.
6. Equip with Siemens PLC device, touch screen operation, it is convenient for usage, while prolonging the service life.
Company profile
SHANGHAI TIANHE PHARMACEUTICAL MACHIENRY CO.,LTD (STH) was founded in 1992. The company is located in Chongming island Shanghai,China. In the 40 years since its establishment, STH has successfully achieved an extraordinary leap based on the strategy of "brand-opening and terminal-oriented". Development and become a mature enterprise in the tablet press machine industry in one fell swoop.
STH mainly produces tablet press machine, packing machine, processing equipment suitable in Pharmacy, Foods, Chemical industry. And has independent large-scale research and development institutions in the same industry in China, a complete manufacturing system and a huge marketing service network. It is an international manufacturing company integrating R&D, manufacturing, marketing and service.
STH’s machines have been sold all over the world (70 countries), such as: Europe, Canada, New Zealand, Southeast Asia,Pakistan, Iran, Algeria etc. The quality of the products has been significantly improved in Pharmacy, Foods, Chemical industry, and they are favored by customers at home and abroad.
Company mission: focus on quality and service
Service:
Warranty:
Our machine is under warranty for 12 months. Most components are free-replacement warranty,but the client needs to pay the DHL fee . Artificial and thunder strike damage is beyond the scope of the warranty. Spare parts are not in the warranty time.
After Sales Service :
Our engineer is available to provide after sales service oversea. Customers need to afford
the visa, tickets , accommodation, hotel and 100 USD per day.
Technical Support: We will be a consultant for clients about the technical problem before
order, provide drawing specification, design customized project, analyze and solve
technical problem.
Operation Training:
We are pleased to receive client’s technician to our factory and learn the operation course,
take photo, video.
