ZP1150(A) Rotary Tablet Press Machine
Application
This single-sided rotary tablet press machine transforms granular materials into round, irregular, or double-side engraved tablets. Designed for pharmaceutical, chemical, foodstuff, and electronic industries, it meets international standard mold requirements. Ideal for large-scale, high-speed production with superior capacity and specifications compared to traditional machines.
Key Features
- GMP-compliant design with simple operation, easy cleaning, and maintenance
- Strong pressure capability with adjustable pre-pressure for extended pressing time
- High-speed turret rotation meeting high-speed tablet press requirements
- PLC control with touch screen interface for parameter setting and monitoring
- Upper punch protection device for automatic emergency stop
- Force feeder option for improved granule flow and filling performance
Technical Specifications
| Model |
ZP1139(A) |
| Number of Stations |
39 |
| Tooling Standard |
BBS |
| Max Main Pressure (KN) |
80 |
| Max Pre-pressure (KN) |
20 |
| Max Tablet Diameter (mm) |
Round: 11 | Irregular: 13 |
| Max Filling Depth (mm) |
16 |
| Max Tablet Thickness (mm) |
7 |
| Max Turret Speed (r/min) |
65 |
| Max Production Capacity (pcs/h) |
152,100 |
| Motor Power (kw) |
4 |
| Overall Size (mm) |
960×910×1750 |
| Machine Weight (kg) |
1650 |
Advanced Features
Operation & Control
PLC and touch screen controller for parameter setting, fault display, and troubleshooting. Automatic emergency stop when pressure exceeds set values.
Lubrication System
Automatic lubrication for pressure wheel, track, and punching rod to extend service life and reduce wear.

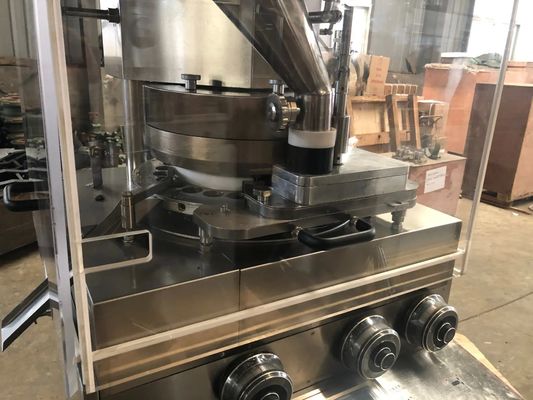

Turret Construction
Three-part combined turret made of HT300 material with hardened surface layer for wear resistance.
Punches & Dies
Customizable to TSM standard in various shapes (round, irregular, concave) and materials (S7/D2, DC53, 6CrW2Si, GCr15).
After-Sales Service
- Installation services with technical support for smooth operation transition
- Engineer dispatch for machine setup and operation
- 1-year warranty with 24-hour technical support
- Professional team for ongoing machine maintenance and support
Frequently Asked Questions
Q: Where is your factory located?
A: Our factory is in Shanghai, Chongming District. We welcome visits with prior arrangement.
Q: How can I verify the machine suits my product?
A: Send us samples for testing. We'll provide videos and online demonstrations.
Q: What payment and trust options are available?
A: We recommend Trade Assurance Service for first-time transactions to protect both parties.
Q: What's the warranty and support policy?
A: 1-year warranty with 24-hour technical response and lifetime support.
Company Profile
Shanghai Tianhe Pharmaceutical Machinery Co., Ltd. is a leading manufacturer of pharmaceutical processing machines with over 30 years of experience, exporting to 70+ countries. We handle all production processes from casting to final assembly, offering customized solutions with advanced technology, Omron PLC control, and GMP-compliant designs.
