Product Details:
|
| Material: | Stainle | Applicable For: | Pharmcy, Foods,Chemical Industry |
|---|---|---|---|
| Filling Volume: | 300L | Capacity Range: | 100kgs |
| Motor: | 2.2kw | Speed: | 1-12r/min |
| Volume: | 0.3m3 | Machine Weight: | 550kgs |

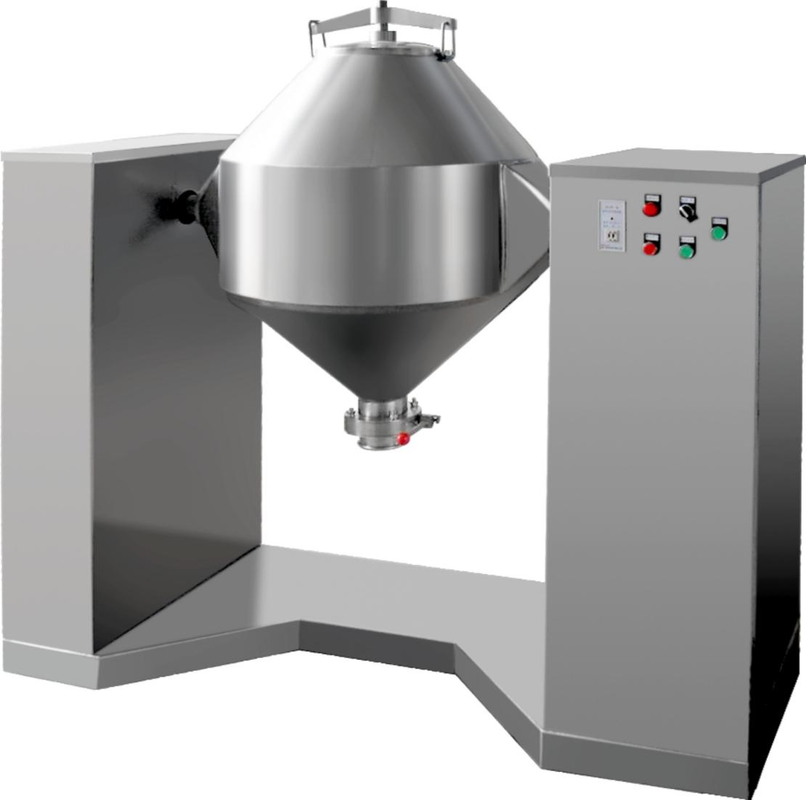

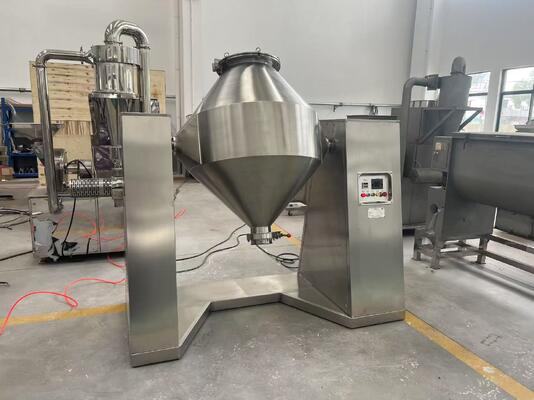

Pharmcy Food Grade 300L Double Cone Mixer For Pharmaceutical Processing Equipment
Application
The functions of this machine are similar to those of the V type mixer. The machine will produce a remarkable effect mixing powders and particles (granules) with a relatively good fluidity .Each technical index reaches the barrel is made of stainless steel. The internal and external walls are polished, The appearance is pleasing to the eye and operation is convenient.
Main technical specification
| Model | W-300L |
| Capacity (kg/h) | 100 |
| Power(kw) | 2.2 |
| Volume(m3) | 0.3 |
| Speed(r/min) | 0-12 |
| Machine weight(kgs) | 500 |
Configuration list
| Material part | ||||
| No | Description | Specification | Qty | Manufacturer |
| 1 | Mixing barrel | 2.5mm316L | 1 | STH |
| 2 | Butterfly valve |
DN150 316L |
1 | WUXI |
| 3 | drive shaft | 45#钢 | 1 | STH |
| 4 | Active support shaft | 45#钢 | 1 | STH |
| 5 | Bearing housing | SN2-211 | 1 | JIANGYING |
| 6 | Mixing barrel cover plate | 10mm316L | 2 | STH |
| 7 | Bearing housing plate | 16mm | 2 | STH |
| 8 | Cover sealing strip | silicon rubber | 1 | STH |
| 9 | Bearing | 6211 | 2 | JIANGYING |
| Electric part | ||||
| 1 | reducer | WPA120 | 1 | Hangzhou |
| 2 | motor | 2.2kw | 1 | JIANGYING |
| 3 | frequency converter | 2.2kw | 1 | Hangzhou |
Company profile
SHANGHAI TIANHE PHARMACEUTICAL MACHIENRY CO.,LTD (STH) was founded in 1992. The company is located in Chongming island Shanghai,China. In the 40 years since its establishment, STH has successfully achieved an extraordinary leap based on the strategy of "brand-opening and terminal-oriented". Development and become a mature enterprise in the tablet press machine industry in one fell swoop.
STH mainly produces tablet press machine, packing machine, processing equipment suitable in Pharmacy, Foods, Chemical industry. And has independent large-scale research and development institutions in the same industry in China, a complete manufacturing system and a huge marketing service network. It is an international manufacturing company integrating R&D, manufacturing, marketing and service.
STH’s machines have been sold all over the world (70 countries), such as: Europe, Canada, New Zealand, Southeast Asia,Pakistan, Iran, Algeria etc. The quality of the products has been significantly improved in Pharmacy, Foods, Chemical industry, and they are favored by customers at home and abroad.
Company mission: focus on quality and service
Service:
Warranty:
Our machine is under warranty for 12 months. Most components are free-replacement warranty,but the client needs to pay the DHL fee . Artificial and thunder strike damage is beyond the scope of the warranty. Spare parts are not in the warranty time.
After Sales Service :
Our engineer is available to provide after sales service oversea. Customers need to afford
the visa, tickets , accommodation, hotel and 100 USD per day.
Technical Support: We will be a consultant for clients about the technical problem before
order, provide drawing specification, design customized project, analyze and solve
technical problem.
Operation Training:
We are pleased to receive client’s technician to our factory and learn the operation course,
take photo, video.
