Product Details:
|
| Material: | Stainless Steel 316L | Capacity: | 1L-50L |
|---|---|---|---|
| Coefficient Of Charging Material: | 50-80%(≤50Kg) | Mixing Speed: | 3-15 Rpm |
| Mixing Time: | 1-59min | Main Motor: | 0.37kw |
| Max Net Load: | 25kg | Power Supply: | 380V 50Hz |

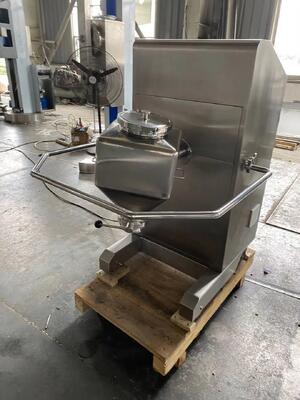

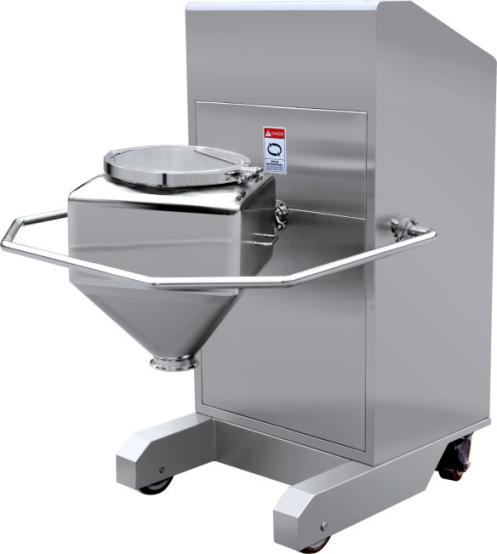

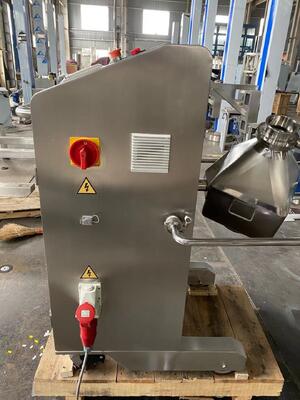

50L Changeable Lab Bin Mixer Touch Screen Control For Pharmaceutical Proessing Equipment
PURPOSE
It is mainly used for the tests of mixing different components of dry powders with dry powders, granules with granules, or powders with granules in laboratories. It is an ideal machine for exploring the best process parameters in material mixing, and a mechanically and electrically integrated advanced experimental machine.
Technical Data
| Model | HSD-50L |
| Mixing bin range | 1L-50L |
| Coefficient of Charging Material | 50-80%(≤50Kg) |
| Max net load | 25kg |
| Mixing speed: | 3-15 rpm |
| Mixing Time |
1-59min Adjustable Frequency Conversion Speed |
| Main motor | 0.37kw with brake |
| Power Supply | 380V 50Hz |
FEATURES
The mixing bin and main machine adopt quick disassembled type connection with convenient installation and disassembly.
2. It can be equipped with different mixing hoppers to meet the need for laboratory tests without the need of frequent material transferring, material charging, etc.
3. It adopts PLC automatic control to carry out automatic mixing and automatic positioning with user-friendly control and operation.
4. The machine is free from any dead corner of sanitation, and the exposed parts are made of high quality austenitic stainless steel, fully meeting the requirements for medicine production in GMP.
Layout drawing for reference
