Product Details:
Payment & Shipping Terms:
|
| Product Name: | Pharmaceutical Industrial Mixing Equipment | Tank Shape: | Cylinder-shaped |
|---|---|---|---|
| Model: | EYH-60 | BarrBarrel Volume(L)el Volume(L): | 60 |
| Loading Capacity(L): | 30 | Max Loading Weigh(kg): | 20 |
| High Light: | pharmaceutical mixers blenders,chemical mixing equipment |
||

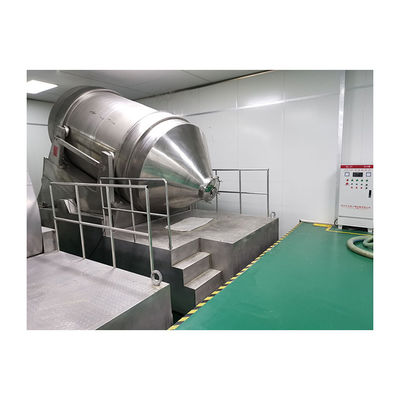

Food Grade 2D Two dimensional Swing Pharmaceutical Mixing Machine
Food Grade 2D Two dimensional Swing Pharmaceutical Mixing Machine Quick Details:
- The structure of this machine is unique.
- Its mixing efficiency is high and no dead corner.
- It is made of stainless steel 304 /316L.
- Its inner and outer walls are processed through polishing.
- Its appearance is beautiful. Its mixing is uniform.
- Its scope of application is wide
Food Grade 2D Two dimensional Swing Pharmaceutical Mixing Machine Main Application :
The mixer is suitable for mixing of dry granule materials in pharmaceutical,chemical and foodstufff industries,especially for those in high tonnage.
Working Principle:
The mixing tank is a cylinder-shaped barrel without and stirring device inside,which make the self-rotation around ix axis and also produces reversible swing movement around its horizontal axis at the same time.It is featured with short mixing time,good uniformity,big output,convenient to discharging,etc.It is great for prompt,even and vast mixing.
WORKING PRINCIPLE

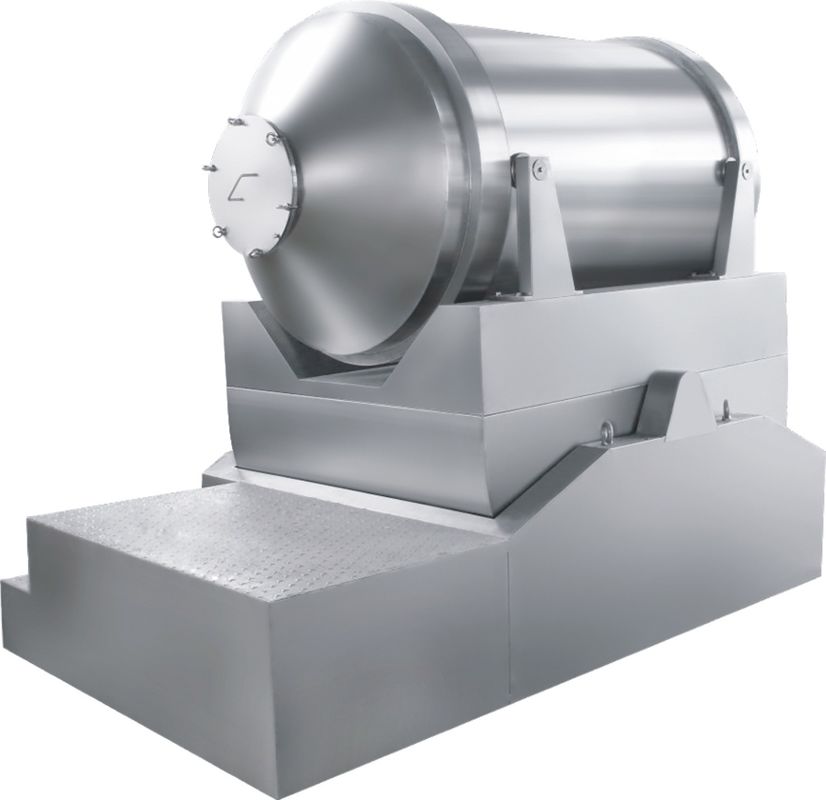

EYH Series 2D Motion Mixer consists of three main parts, which are rotating cylinder, swinging rack and frame. The rotating cylinder lies on the swinging rack and supported by four wheels, and its axial fixation is done by two stop-wheels. Two of four wheels are driven by rotating power system to rotate the cylinder. The swinging rack is driven by a set of crankshaft swinging bar, which is mounted on the frame, and the swinging rack is supported on the frame as well.
FEATURES
EYH Series 2D Motion Mixer (2D mixer & 2D blender) can make two motions at the same time. One motion is the rotation of the cylinder and the other motion is swing of the cylinder along the swinging rack. The materials will be rotated when the cylinder is rotating and mixed when the cylinder is swinging left and right. As a result of two motions, materials can be fully mixed in a short time. This mixer is suitable for mixing of power and granule materials.
Technical Parameters :
| Model | Barrel volume(L) |
Loading capacity(L) |
Max loading weigh(kg) |
No of swing& rotation |
Total motor power(W) |
Overall dimension(mm) |
Barrel weight(kg) |
weight(kg) |
| EYH-60 | 60 | 30 | 20 | 50 | 0.4 | 700*730*1100 | 15 | 115 |
| EYH-150 | 150 | 75 | 50 | 37 | 1.15 | 800*1050*1450 | 50 | 190 |
| EYH-300 | 300 | 150 | 100 | 30 | 1.15 | 900*1350*1550 | 60 | 340 |
| EYH-600 | 600 | 300 | 200 | 23.6 | 3 | 1170*1640*2050 | 140 | 1150 |
| EYH-800 | 800 | 400 | 280 | 19.8 | 3 | 1320*1950*2150 | 200 | 1600 |
| EYH-1000 | 1000 | 500 | 350 | 19.8 | 3 | 1360*2040*2300 | 240 | 1700 |
| EYH-1500 | 1500 | 750 | 520 | 16.2 | 4.4 | 1580*2400*2550 | 320 | 2000 |
| EYH-2000 | 2000 | 1000 | 700 | 16.2 | 7.4 | 1740*2600*2770 | 430 | 2600 |
| EYH-3000 | 3000 | 1500 | 1050 | 13.8 | 11 | 1800*2900*2950 | 620 | 3500 |
| EYH-4000 | 4000 | 2000 | 1400 | 12.8 | 13 | 1970*3300*3300 | 700 | 4100 |
| EYH-6000 | 6000 | 3000 | 2100 | 11.2 | 18.5 | 2300*2900*3800 | 1100 | 6100 |
| EYH-8000 | 8000 | 4000 | 2800 | 10.4 | 22 | 2540*4100*4050 | 1450 | 7900 |
| EYH-10000 | 10000 | 5000 | 3500 | 9 | 30 | 2900*4500*4400 | 1650 | 950 |
