Product Details:
Payment & Shipping Terms:
|
| MAX SIZE: | 28MM | Max Thickness: | 20mm |
|---|---|---|---|
| Max Pressure: | 100KN | Product Name: | Compact Powder Pressing Machine |
| Application: | Metal Powders / Ni-Zn Ferrite Cores | Forms: | Cylinder, Rectangular, Half-moon Ect |
| Highlight: | powder compacting press machine,powder compression machine |
||

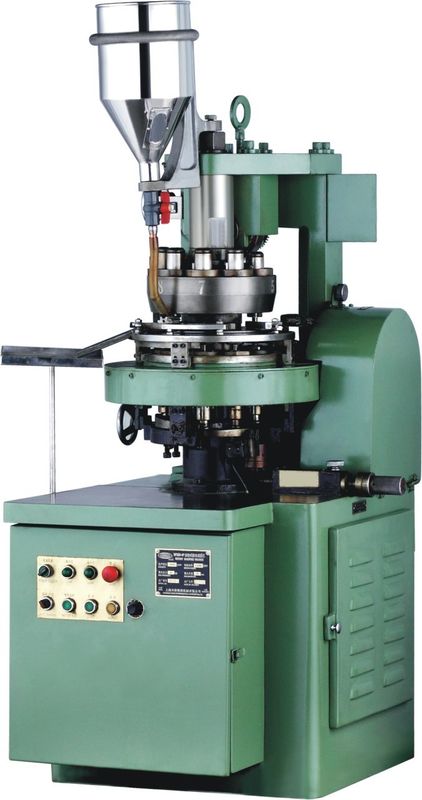

Automatic Iron / Metal Powder Press Machine For Electronic Components
Automatic Iron / Metal Powder Press Machine For Electronic Components Application:
A: Metal powders: stainless powder, gears, bearings, diamond grinding wheel, hard alloy, wooden craft knife.
B: Electronic components:
1. Ni-Zn ferrite cores: R6H, RH, EMI for telecommunication and computer.
2. Mn-Zn ferrite cores: EI, EE, EP, RM, EC for transformers, high conductive magnetic components.
3. Iron powder cores: ceramic capacitor, function ceramic, NTC and PTC thermistors, varistor,aluminum tube.
C: Gress powder: EMC, Resin powder.
D: Magnetic material: Hard magnetic, jewelry (necklace), strong magnet, Nd-Fc-B magnet, servo motor.
E: Epoxy Molding Compound.
Automatic Iron / Metal Powder Press Machine For Electronic Components Forms:
Cylinder, Rectangular, Half-moon, Multi-hole, Segmented, Super-thin Chips, U type and so on.
| Model | RP200 | RP300 |
| Number of Stations | 9 | 9 |
| Max Main Pressure (KN) | 40 | 100 |
| Max Tablet Diameter (mm) | 10 | 28 |
| Max Filling Depth (mm) | 22 | 45 |
| Max Tablet Thickness (mm) | 10 | 20 |
| Max Turret Speed (r/min) | 25 | 18 |
| Max Production Capacity (pcs/h) | 13500 | 9720 |
| Motor Power (kw) | 1.5 | 5.5 |
| Overall Size (mm) | 880×670×1700 | 930×860×2000 |
| Machine Weight (kg) | 550 | 1600 |
